144-Fiber Elite Non-Pinned MTP® to Non-Pinned MTP® Trunk Cable | Corning® SMF-28® Ultra Singlemode Optical Fiber | OS1/OS2 Compatible | Type B, Yellow MTP® Connectors, Yellow Cable Jacket | OFNR Jacket
144-Fiber Elite Non-Pinned MTP® to Non-Pinned MTP® Trunk Cable | Corning® SMF-28® Ultra Singlemode Optical Fiber | OS1/OS2 Compatible | Type B, Yellow MTP® Connectors, Yellow Cable Jacket | OFNR Jacket has a longer lead time. Please feel free to contact us via chat before placing your order.
📦 For bulk orders, please contact us for a customized quote
144-Fiber Elite Non-Pinned MTP® to Non-Pinned MTP® Trunk Cable | Corning® SMF-28® Ultra Singlemode Optical Fiber | OS1/OS2 Compatible | Type B, Yellow MTP® Connectors, Yellow Cable Jacket | OFNR Jacket

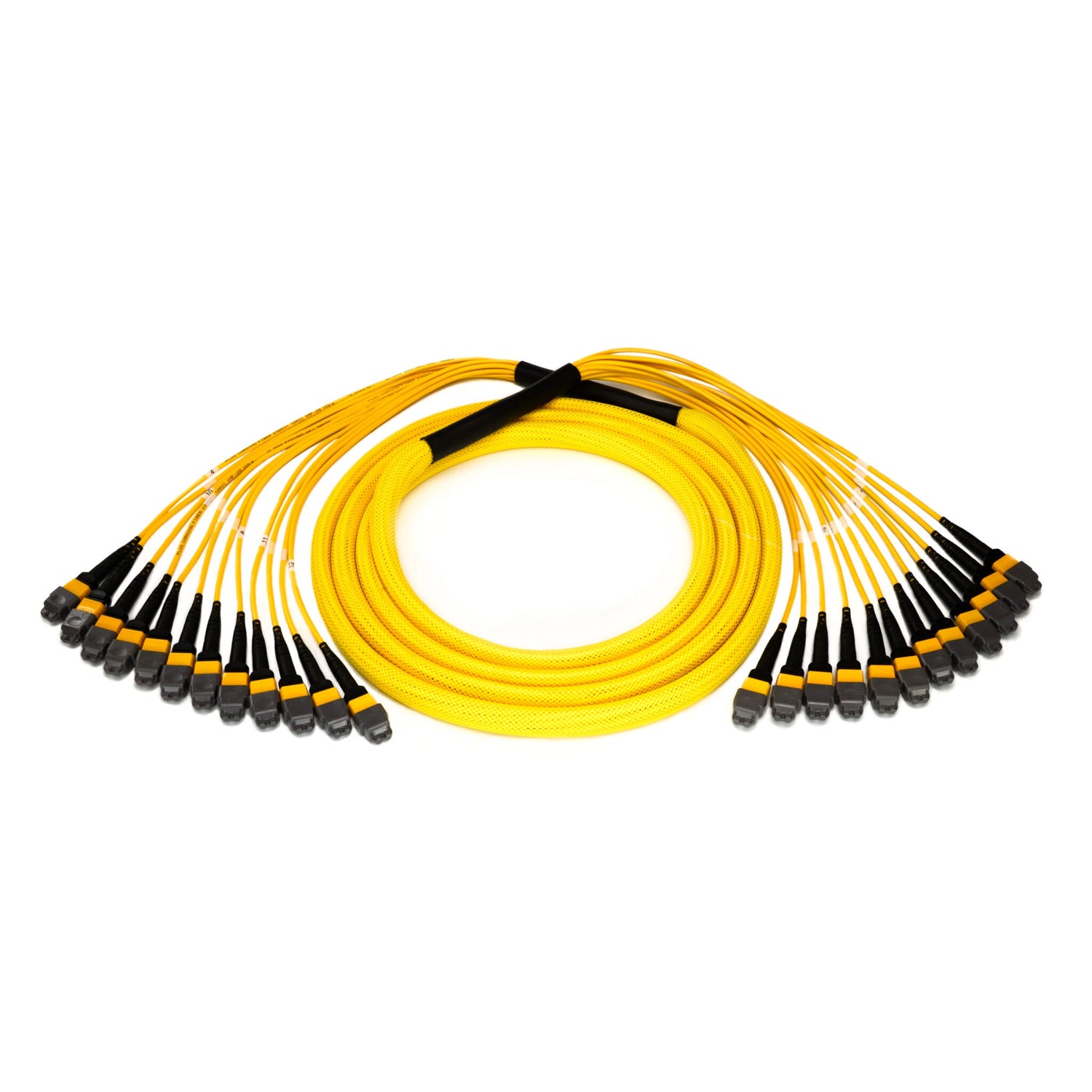

MTP® trunks are factory pre-terminated and rigorously tested to ensure stable performance in high-density cabling environments. Equipped with low-loss MTP® Elite connectors and SMF-28® Ultra singlemode fiber, these cables deliver excellent transmission quality across long-distance runs and multiple connection points. These features make MTP® trunks an ideal choice for high-density cabling in data centers, widely used in main, horizontal, and zone distribution areas.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
-
Connector A
-
Connector B
-
Fiber Mode
-
Wavelength
-
Polarity
-
Attenuation at 1310nm
-
Attenuation at 1550nm
-
Insertion Loss
-
Return Loss
-
Fiber Count
-
Cable Outside Diameter (OD)
-
Operating Temperature
-
Storage Temperature
