COMWAY | SKU: COMWAY-A33

COMWAY A33 Portable Fusion Splicer (Fast Operation / Single & Dual Axis Magnification)

Sales & Warranty by SpeedyFiberTX
High Magnification: 500× (X or Y), 300× (X+Y) — higher clarity than entry-level splicers (e.g. AI-9).
Stable Performance: Typical splice loss 0.02 dB (SM), return loss ≥ 60 dB.
Rugged Design: Operates from –10°C to +50°C, up to 5000m altitude.
Portable & Efficient: 240+ splice/heat cycles per charge, compact 1.8 kg body.
Multi-language UI: 4.3 inch high-light color touch screen

Tax included Shipping calculated at checkout.

📦 For bulk orders, please contact us for a customized quote

Request a Quote

COMWAY – The Practical Choice for Contractors

Positioned as a professional alternative between low-cost entry models and premium Japanese brands.
Widely regarded by contractors as the preferred fiber optic fusion splicing brand for infrastructure and FTTH deployments in developing countries.
Combines professional-grade stability with affordable pricing, enabling contractors to deliver consistent results.

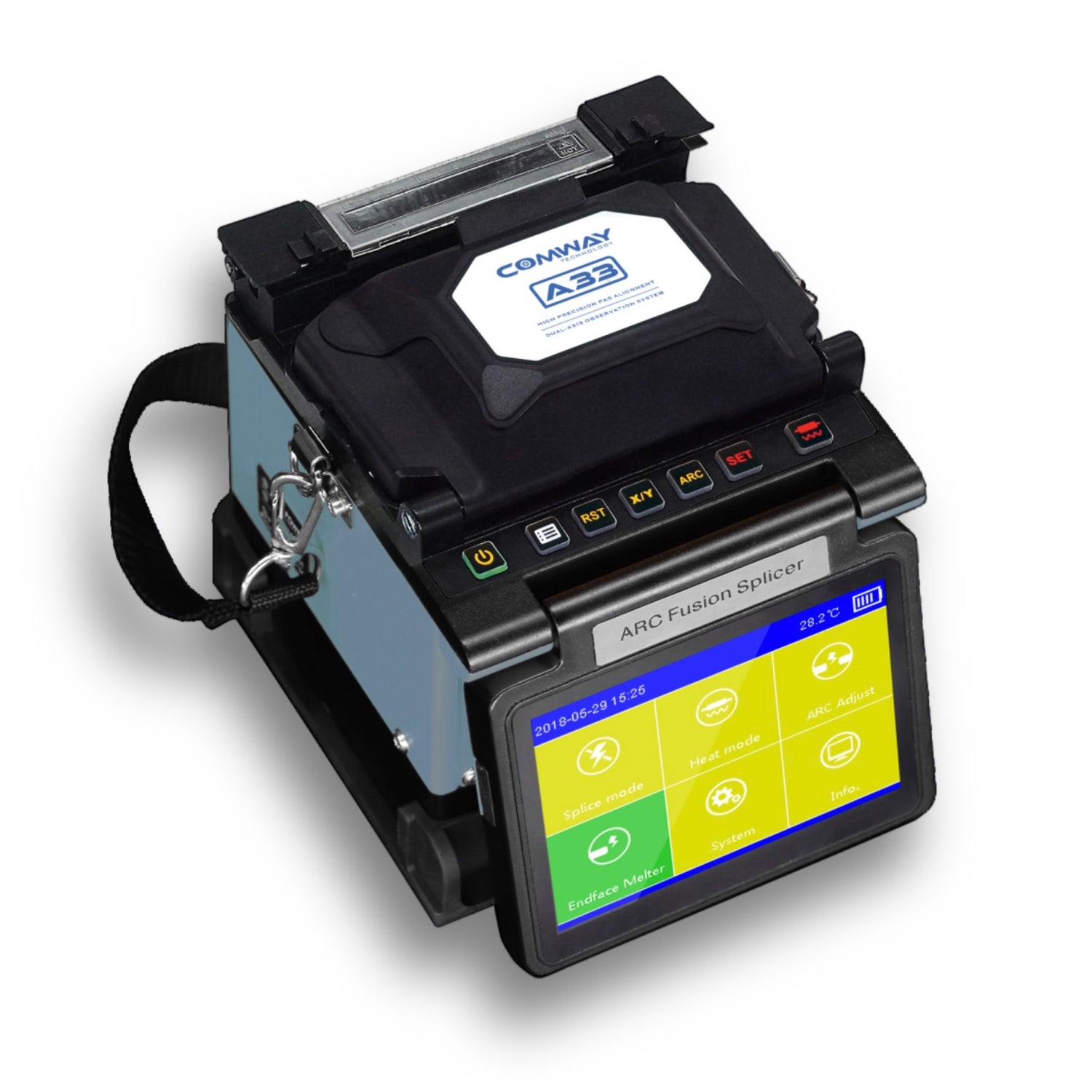

The A33 is a lightweight and portable fusion splicer built for field technicians.
With 500x single-axis and 300x dual-axis magnification, it ensures precise fiber alignment—making it the perfect tool for outdoor installations, quick maintenance, and daily contractor work.

Size & Weight	D136×W141×H136 (mm) 1.5kg (1.8kg with battery)
Fiber alignment	High Precision PAS Alignment
Fiber type	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding dia. 80~150µm, Coating dia. 100~3000µm
Cleave length	250µm cladding dia.: 8~16mm Over 250µm cladding dia.: 16mm
Splicing programs	Max. 100
Splicing time	5 sec. [SM Fast] 12 sec. [SM G652]
Heating programs	Max. 30
Heating time	Adjustable 15 sec. (60mm/40mm sleeves)
Splice protector	10~60mm
Splice image capture	Max. 300 (auto cycle storage)
Splice data storage	Max. 20000
Splice loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB, BI: 0.02dB
Return loss	>>60dB
Loss estimation	Provided
Operation condition	Altitude 0~5000m Humidity 0~95% Temp -10~+50°C Wind ≤15m/s
Storage condition	Humidity 0~95% Temp -40~+80°C (Battery -20~+40°C)
Tension	2N
Fiber view	4.3″ high-light color touch screen
Fiber magnification	500× (X or Y) 300× (X+Y dual axis)
Port	High speed USB
Electrodes life	5000 ARC discharges
Power supply	AC100~240V, 50 / 60Hz
Battery parameters	4000mAh battery 240+ splice/heat cycles
