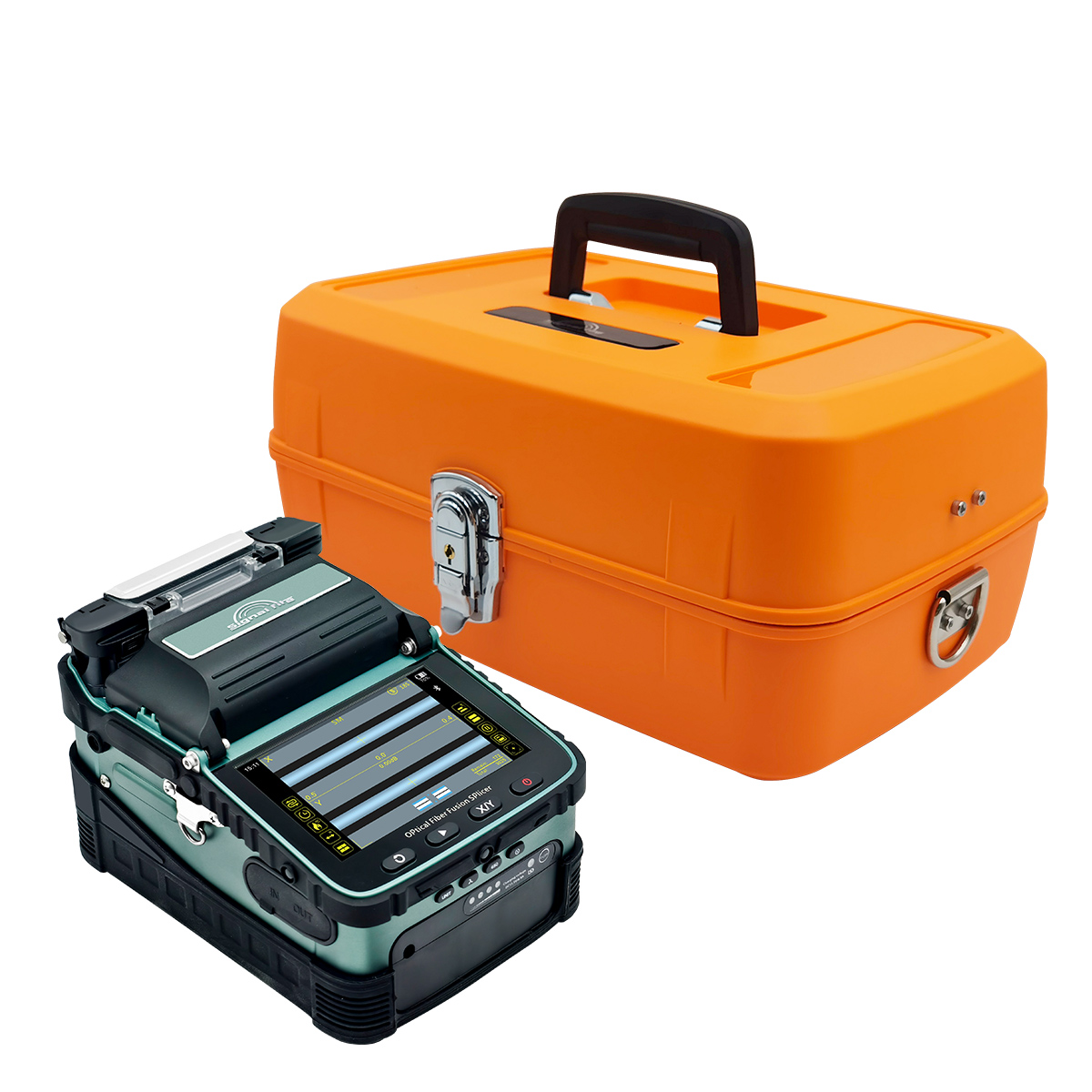

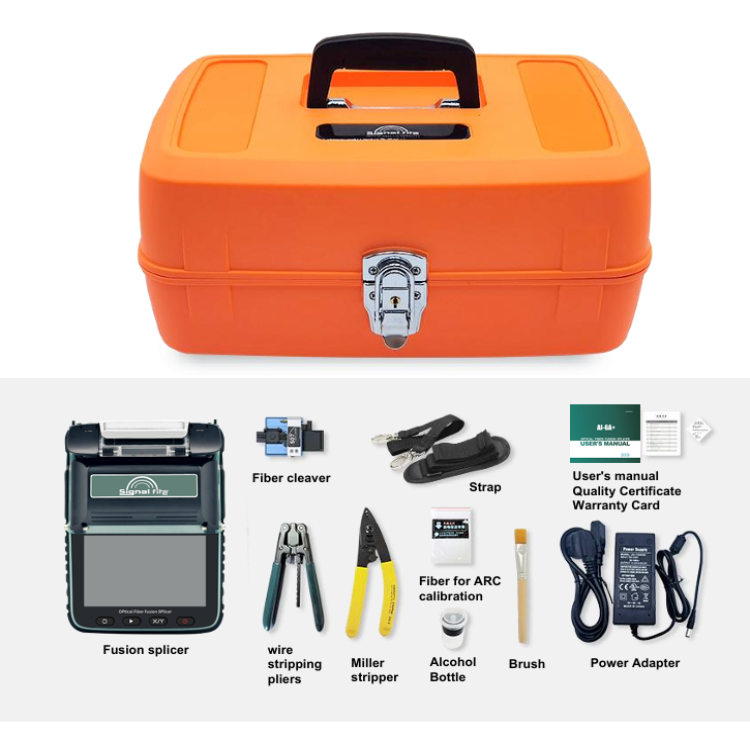

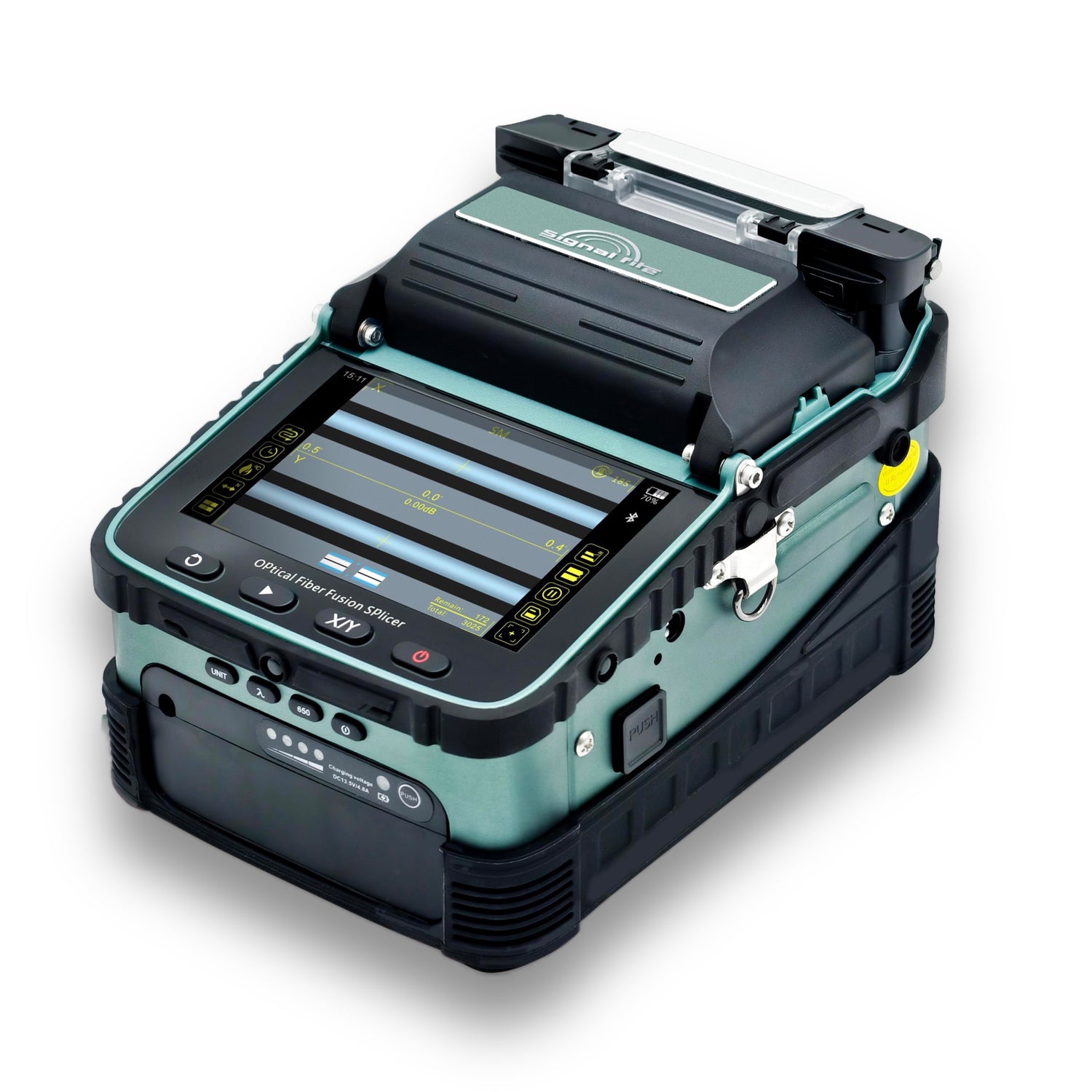

Signal Fire AI-6A+ Fiber Fusion Splicer (6 Motors Core Alignment)
Signal Fire AI-6A+ Fiber Fusion Splicer (6 Motors Core Alignment) has a longer lead time. Please feel free to contact us via chat before placing your order.
📦 For bulk orders, please contact us for a customized quote
Signal Fire AI-6A+ Fiber Fusion Splicer (6 Motors Core Alignment)
Signal Fire – The Best-Selling Budget Splicer
Faster Splicing & Heating
The fusion splicing machine uses a powerful high-speed motor that allows fast 8 second splice time and 18 second heat time, continuous splice and heats about 160 times. And it saving engineers time.

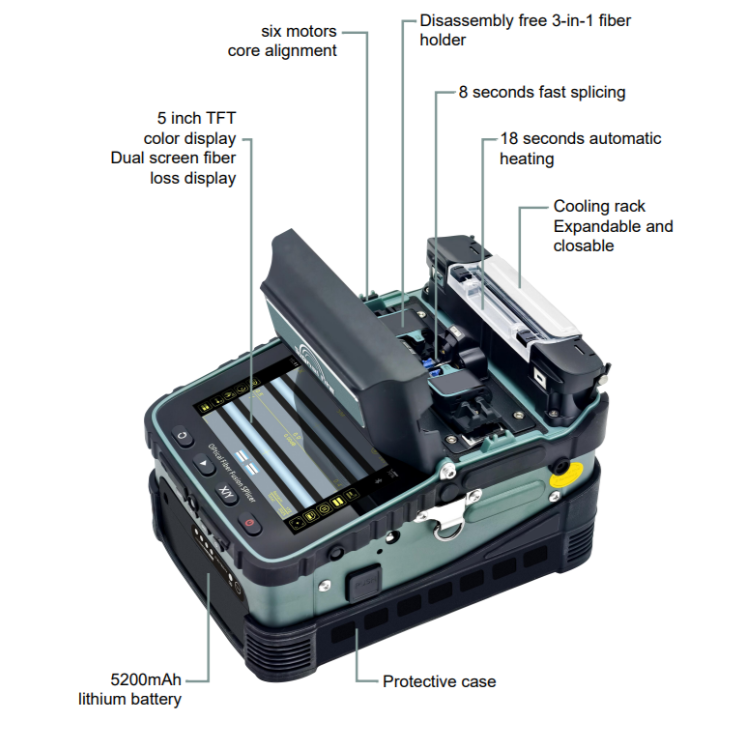

Professional Design
Using the latest core alignment technology with auto-focus and six motors. It is more precise and less splicing loss than cladding alignment technology. Effectively measure connection loss,verify continuity and help assess fiber link transmission quality.
3-in-1 Fiber Holder
3 In 1 Fiber Holder suit for SM(G. 652&G. 657)、MM (G. 651)、DS(G. 657)、NZDS (G. 655), bare fiber, pigtail, rubber-insulated, multi fiber cable; Splice Loss: 0.025dB (SM) 、0. 01dB (MM) 0. 04dB (DS/NZDS).
Clear LCD & Long Time Standby
With 5-inch high-resolution screen, it is up to 300 times the focus magnifications when X/Y Axis displayed separately, 150 times focused magnifications when X/Y Axis Displayed Simultaneously. 5200 mah high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 160 times.
Intelligent Interaction
This splicing heating machine can be connected to mobile app, ten different languages can be switched like English, French, Russia, Italian, Portuguese, polish, Spanish, Thai, Arabic which is convenient for customers to use. You can check the data by your mobile phone and downloaded or output at any time, also the splicing records can be stored indefinitely.
| Fiber alignment | Core / cladding |
| Motor number | 6 motors (accuracy of fiber alignment: 0.3 μm) |
| Splicing time | 8 s |
| Heating mode | 18 s, customizable according to external environment |
| Fiber type | SMF (G.652), BIF (G.657); suitable for single mode, multi-mode, bare fiber, pigtail, drop cable, jumper fiber, invisible fiber fusion |
| Cladding diameter | 80–150 μm |
| Splicing loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS) |
| Splicing mode | Automatic focusing core alignment, conventional / high precision welding |
| Splicing way | Automatic, semi-automatic |
| Fiber holder | Three-in-one fixture, no need to change, suitable for SM/MM, multi-core cable, bare fiber, pigtail, jumper fiber, drop cable |
| VFL | Power 15mW, 2Hz flashing and steady-on mode |
| OPM | Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm Range: -50~26dBm Absolute error: <0.3dB (-50~+3dBm) |
| Machine system languages | 10 languages (Chinese, English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic) |
| Battery capacity | 5200 mAh lithium battery, charging ≤ 3.0 h; ~160 cycles |
| Magnification | 320× (X or Y single axis), 200× (X+Y dual axis) |
| Fiber diameter | Cladding: 80–150 μm, Coating: 100–1000 μm |
| Cleave length | 250 μm coating: 8–16 mm, 250–1000 μm coating: 16 mm |
| Heat shrink tube | 60 mm, 50 mm, 40 mm, 25 mm |
| Tensile testing | 2N standard |
| Display | 5″ TFT color screen |
| Boot time | 1 s to working mode |
| Data storage | 1000 groups (local), unlimited via server export |
| Wireless communication | Bluetooth 4.2, 2.4GHz, ≤60m |
| Software upgrade | Mobile APP Bluetooth online update |
| Management function | Owner authority binding, remote view & control via APP, multi-device management |
| Return loss | >60 dB |
| Product protection | Waterproof, dustproof, drop-proof |
| Power supply | Input AC100–240V 50/60Hz, Output DC13.5V/4.8A, real-time battery monitoring |
| Work environment | -15~+50°C, <95%RH (non-condensing), altitude 0–5000m, wind ≤15m/s |
