COMWAY | SKU: COMWAY-C10R

COMWAY C10R Ribbon Fusion Splicer (High-capacity Battery / Ribbon Fiber Support)

Sales & Warranty by SpeedyFiberTX
Ribbon Splicing Capability: Supports single fiber up to 12-fiber ribbon, enabling higher efficiency for contractors handling large-scale projects.
Reliable Performance: Typical splice loss SM: 0.05 dB, MM: 0.03 dB, return loss ≥ 60 dB.High-Capacity Battery: 8400mAh battery delivers 240+ splice/heat cycles per charge.
Durable Field Design: Operates from –10°C to +50°C, at altitudes up to 3800 m, with wind resistance up to 15 m/s.Enhanced Usability: 4.3″ high-brightness LCD with dual-axis CMOS camera, supporting X/Y simultaneous fiber view.
Smart Features: Anti-theft time-delay password, electrode ID authentication, optional GPS tracking.
Efficient Heating: 18-second tube heating (SM FAST), compatible with 25–60 mm sleeves.

Tax included Shipping calculated at checkout.

📦 For bulk orders, please contact us for a customized quote

Request a Quote

COMWAY – The Practical Choice for Contractors

Positioned as a professional alternative between low-cost entry models and premium Japanese brands.
Widely regarded by contractors as the preferred fiber optic fusion splicing brand for infrastructure and FTTH deployments in developing countries.
Combines professional-grade stability with affordable pricing, enabling contractors to deliver consistent results.

The C10R is specifically designed for ribbon fiber splicing, supporting multi-core fusion in a single process.

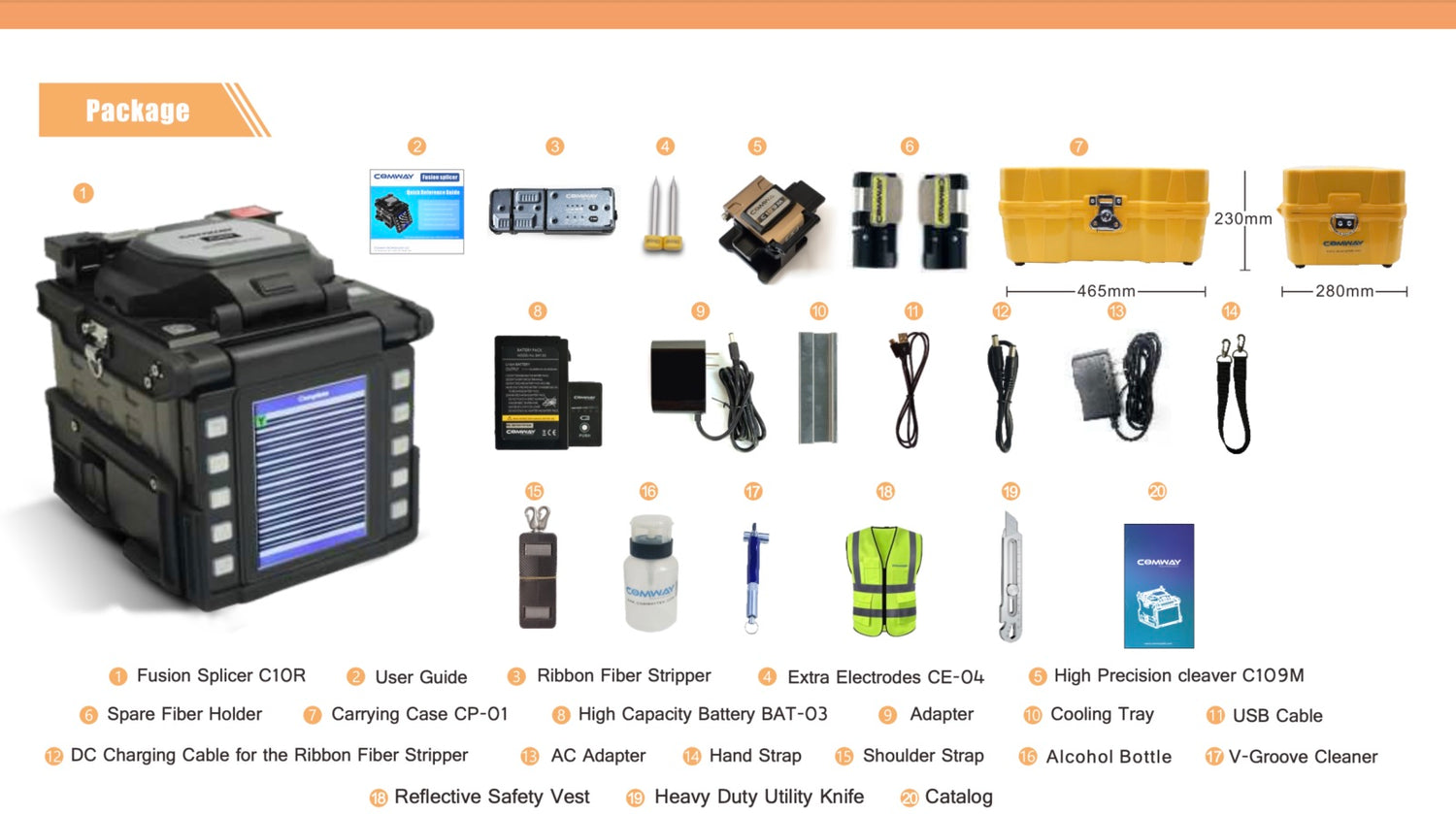

It features a high-capacity battery, spare fiber holders, and advanced accessories, making it suitable for large-scale projects requiring high productivity.

Size & Weight	D156×W135×H149(mm) 1.7kg (2.5kg with battery)
Applicable fibers	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZ DS (ITU-T G.655), BI (ITU-T G.657)
Fiber count	Single to 12
Cladding dia.	Single: 125µm / 160µm to 3mm (by fiber holder system)
Sheath dia.	Ribbon: 125µm / Ribbon fiber thickness 0.25–0.4mm
Cleave length	9mm to 9.5mm
Splice mode	Total 100 splice modes
Typical splice time	13 sec (SM FAST) 16 sec (SM AUTO)
Heating mode	20 heating modes
Typical tube heating time	18 sec (SM FAST)
Applicable sleeve	25–60mm sleeve
Splice image capture	Max. 800
Splice result storage	Max. 10000
Typical splice loss	SM: 0.05dB, MM: 0.03dB, DS: 0.08dB, NZ/NZ DS: 0.08dB, BI: 0.05dB
Return loss	>>60dB
Fiber View	Two-axis CMOS camera 4.3″ high-light color LCD
Fiber magnification	X / Y (32–100× magnification) or both X and Y simultaneously
Operating condition	Altitude: 0–3800m Temperature: -10~+50℃ Wind: ≤15m/s Humidity: 0–95% RH
Tension test	1.96–2.25N
Electrode life	2000 splices
Power supply	AC100–240V, 50/60Hz
Battery parameters	8400mAh high capacity battery 240+ splicing and heating cycles
Terminal	USB 2.0 connector for PC communication
Other features	Time-delay password against theft ID electrode against fake
Option	GPS location system
