SpeedyFiberTX  |  SKU: LB-SMPOSM08M-AY

8 Fibers MPO Male Low Loss Single-mode Fiber Loopback Module

$1,184.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 3–5 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • MPO Connector – Compatible with US Conec MTP® Interface
  • Easy Insertion and Extraction with Push-pull Design
  • Used in Testing 40G or 100G MPO/MTP® Interface Transceivers
  • Test the Quality of Each Channel, Self-loop Test of a Single MPO/MTP® Interface Optical Module with MPO/MTP® Cable
  • Used to Test the Transmission Capability and Reception Sensitivity of Optical Network Equipment
  • Designed for Troubleshooting Network Failure Nodes

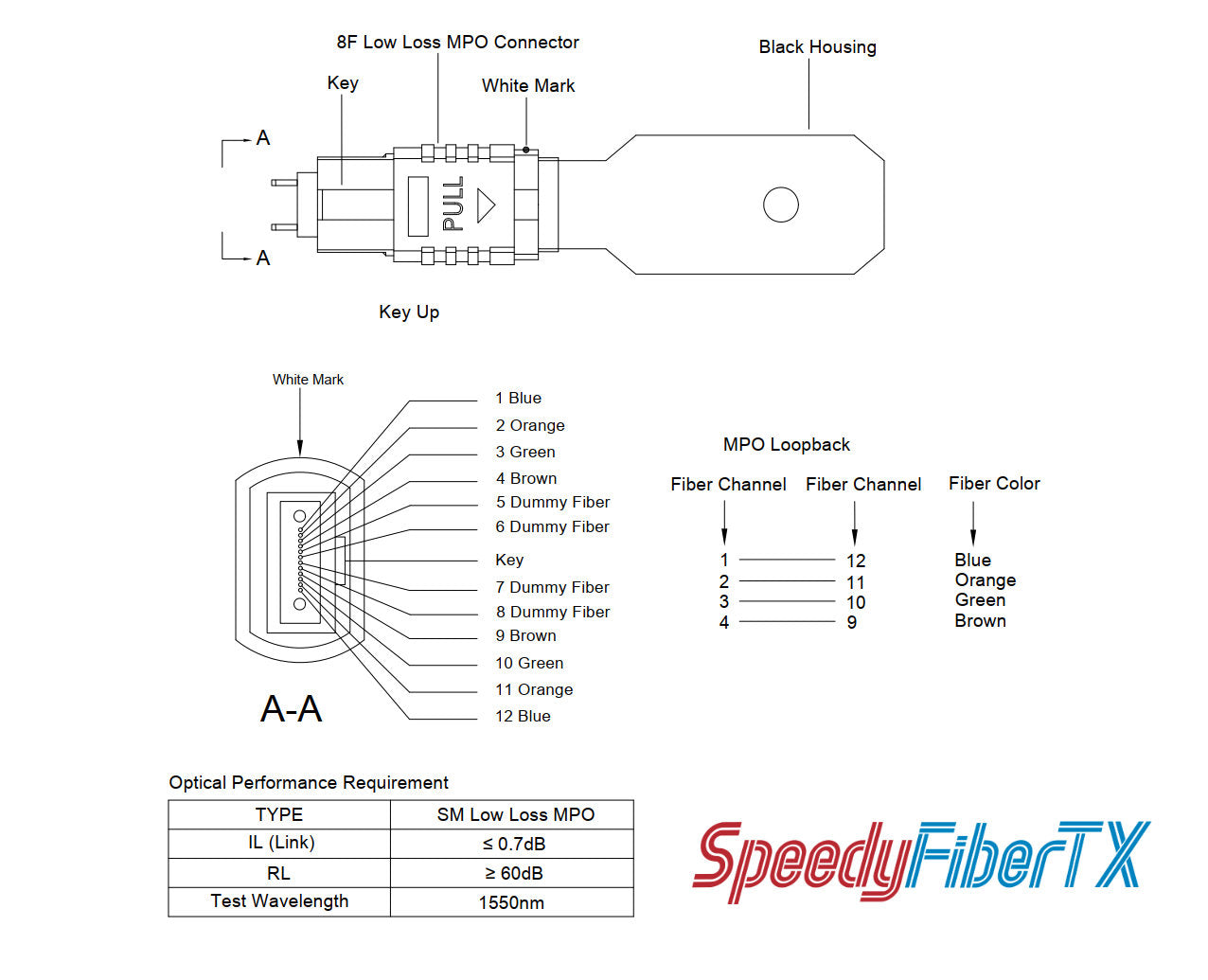

8 MPO Fibers Male Single-mode Fiber Loopback Module

MPO loopback modules are used widely within testing environment especially within parallel optics 40G networks. It can be used with MPO/MTP® cables to detect the quality of each channel and self-loop test of a single MPO/MTP® interfac transceiver. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MPO/MTP® transceivers interfaces. MPO loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP® trunks/patch leads.
