SpeedyFiberTX | SKU: LB-SMPOM408F-UA

8 Fibers MPO Female Low Loss Multimode Fiber Loopback Module

Configuration Option

Product variants

$848.00 TWD

Tax included Shipping calculated at checkout.

📦 For bulk orders, please contact us for a customized quote

Highlight

MPO Connector – Compatible with US Conec MTP® Interface
Low Insertion Loss ≤ 1.2dB | High Return Loss ≥ 25dB
Easy Insertion and Extraction with Push-pull Design
Used in Testing 40G or 100G MPO/MTP® Interface Transceivers
Designed for Troubleshooting Network Failure Nodes
OM3 Multimode compatible

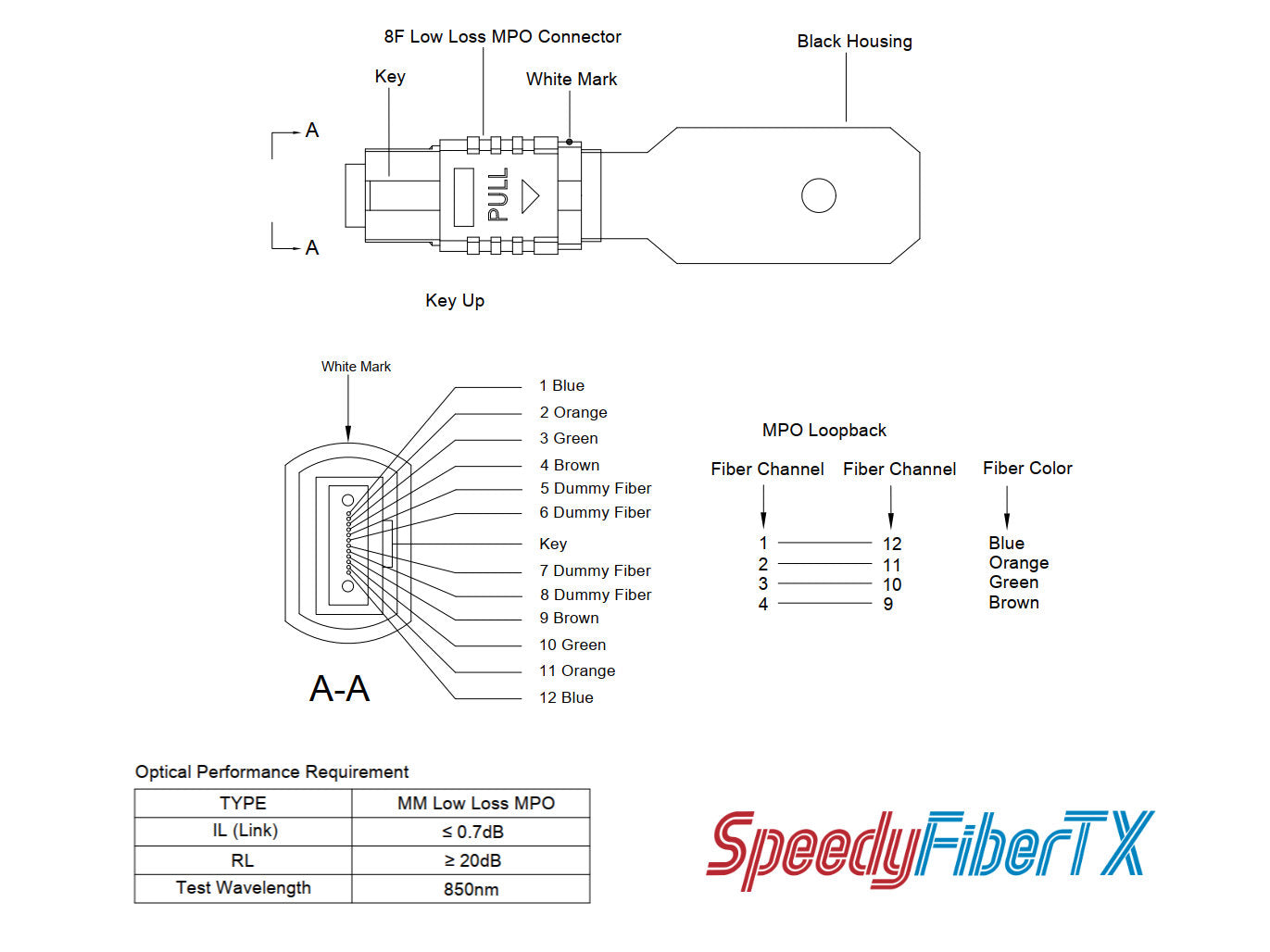

8 MPO Fibers Female Multimode Fiber Loopback Module

MPO loopback modules are used widely within testing environment especially within parallel optics 40G networks. Devices allow verification and testing of transceivers featuring MPO/MTP® interface – 40GBASE-SR4/CSR4 QSFP+ devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MPO/MTP® transceivers interfaces. MPO loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP® trunks/patch leads.
