SpeedyFiberTX  |  SKU: QDD-800G-SR8-050M

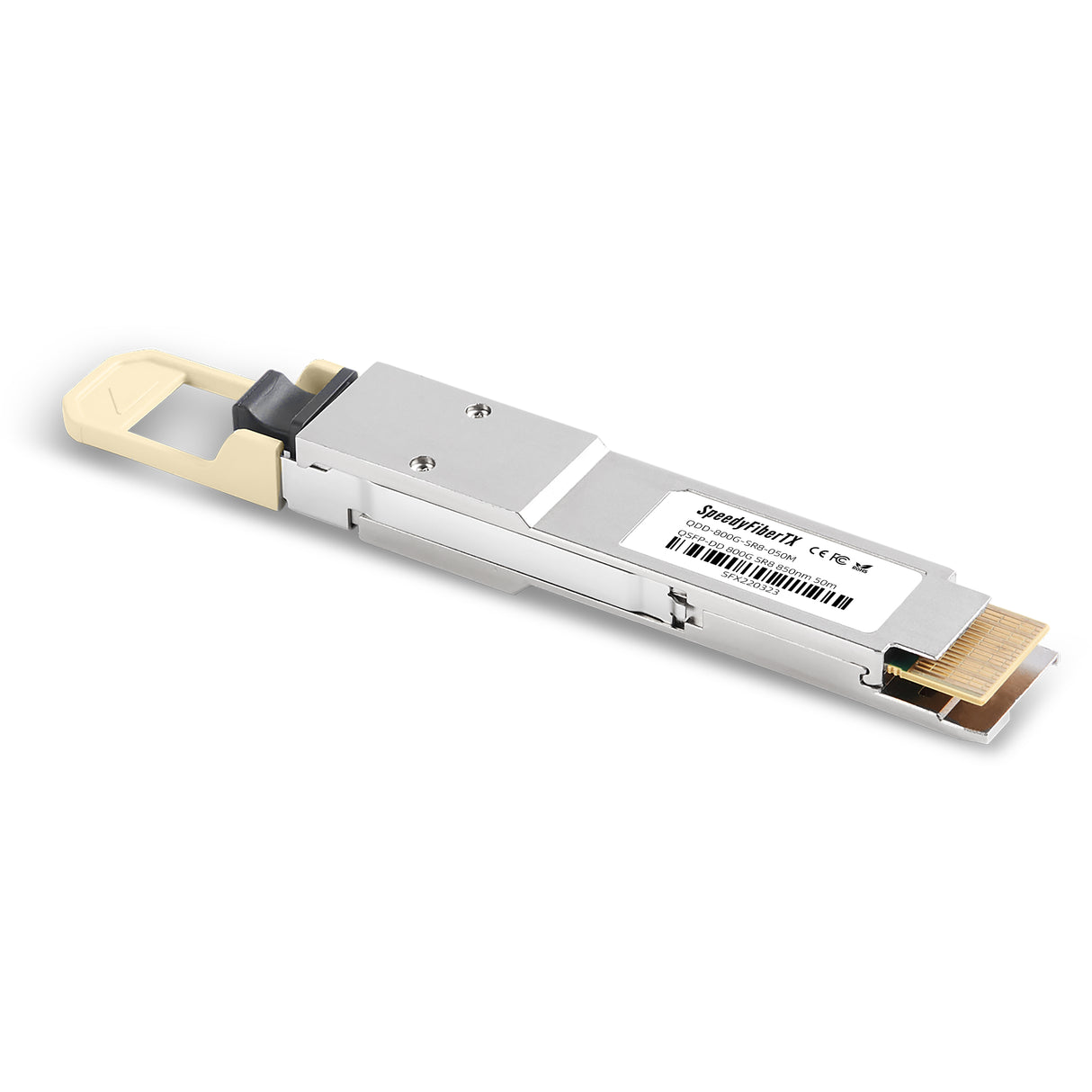

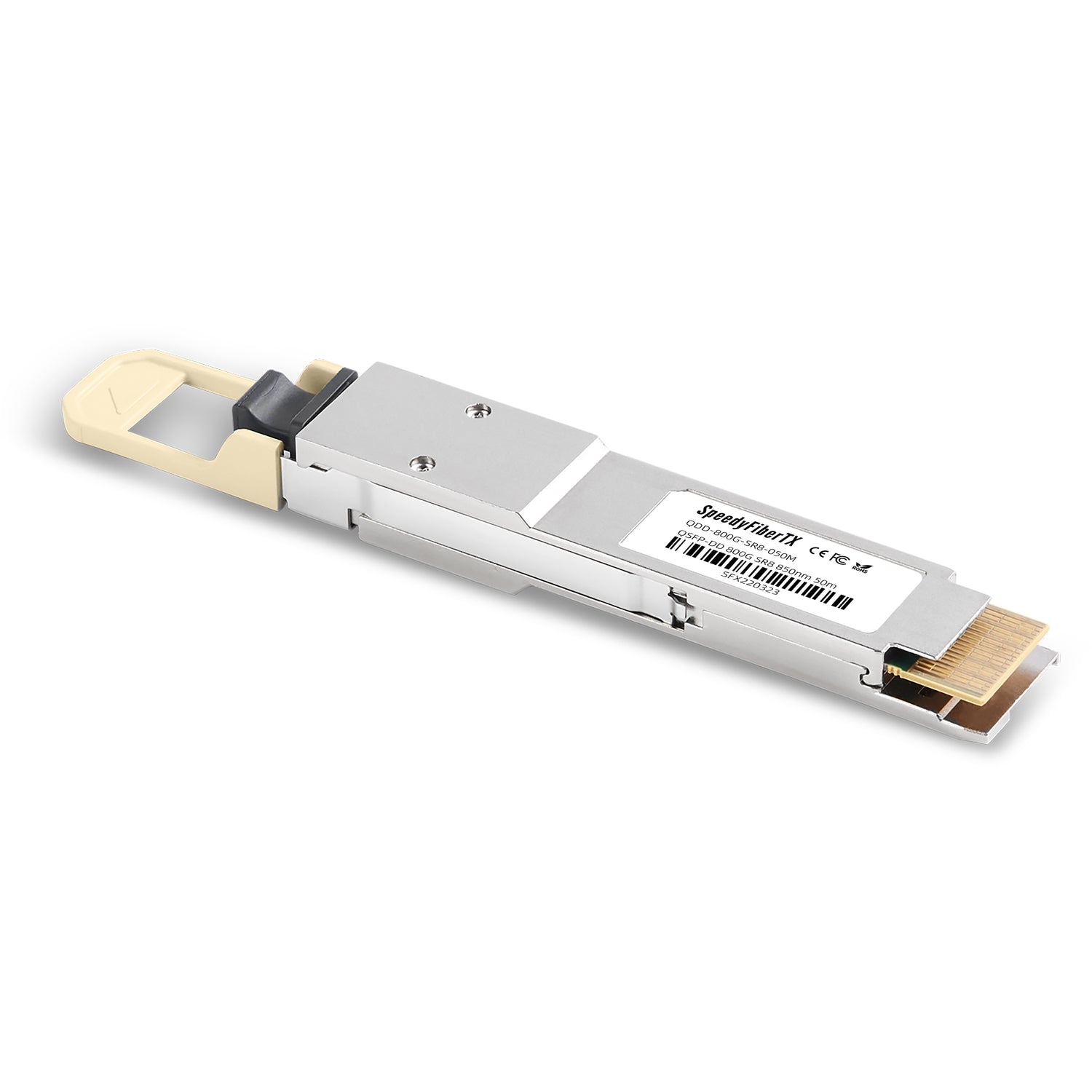

SpeedyFiberTX 800GBASE-SR8 QSFP-DD PAM4 850nm 50M DOM MTP/MPO-16/APC MMF Optical Transceiver Module


Regular price $40,292.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • ✈️ Free Shipping on Orders Over $499 USD $99 USD until Sep 30.

📦 For bulk orders, please contact us for a customized quote

Contact us

Highlight
  • Built-in Broadcom 7nm DSP Chip,Max. Power Consumption 13W
  • Parameter Tests for Superior Performance, Quality, and Reliability
  • Support 850Gb/s Aggregate Bit Rate
  • High-speed Connectivity Compliant to IEEE 802.3ck
  • Hot Pluggable QSFP-DD MSA Compliant
  • Compliant with CMIS Rev 5.0
  • 8x 106.25G PAM4 Retimed 8x 100GAUI-1 C2M Electrical Interface
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

800GBASE-SR8 QSFP-DD PAM4 Optical Transceiver Module (MMF, 850nm, 50m, MTP/MPO-16 APC, DOM)

The 800GBASE-SR8 QSFP-DD optical transceiver module is designed for 800G Ethernet applications and supports up to 50m transmission over OM4 multimode fiber (MMF) via MTP/MPO-16 APC connectors at 850nm wavelength. It complies with IEEE 802.3ck, CMIS 5.0, and QSFP-DD MSA standards.

With built-in digital diagnostics monitoring (DDM), this module enables access to real-time operating parameters for enhanced system management. It supports 2x 400G SR4 breakout configurations and is characterized by low latency, low power consumption, and high reliability—making it ideal for high-performance computing networks, data centers, enterprise core/distribution layers, and service provider infrastructures.
