SpeedyFiberTX  |  SKU: OSFP-400G-SR8-100M

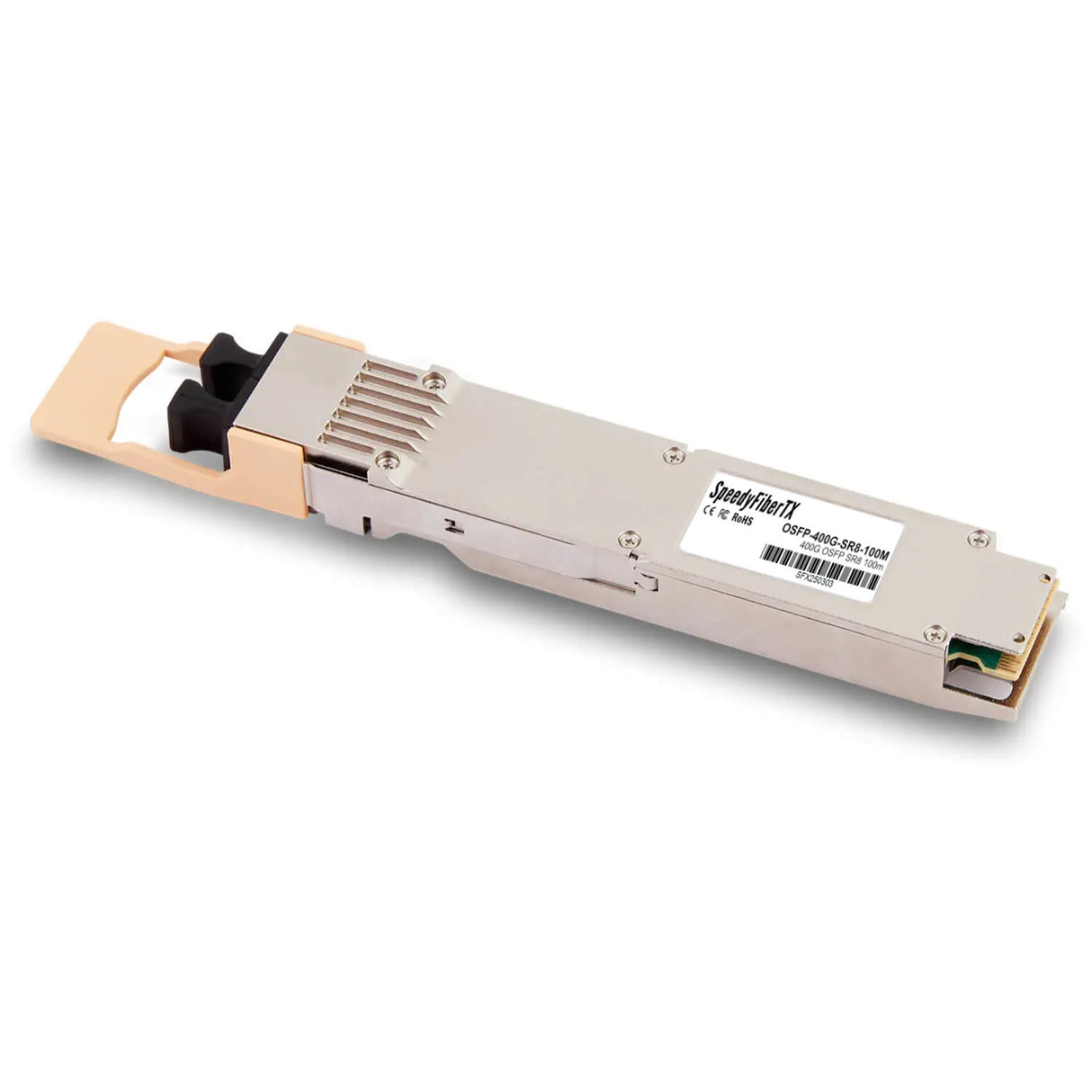

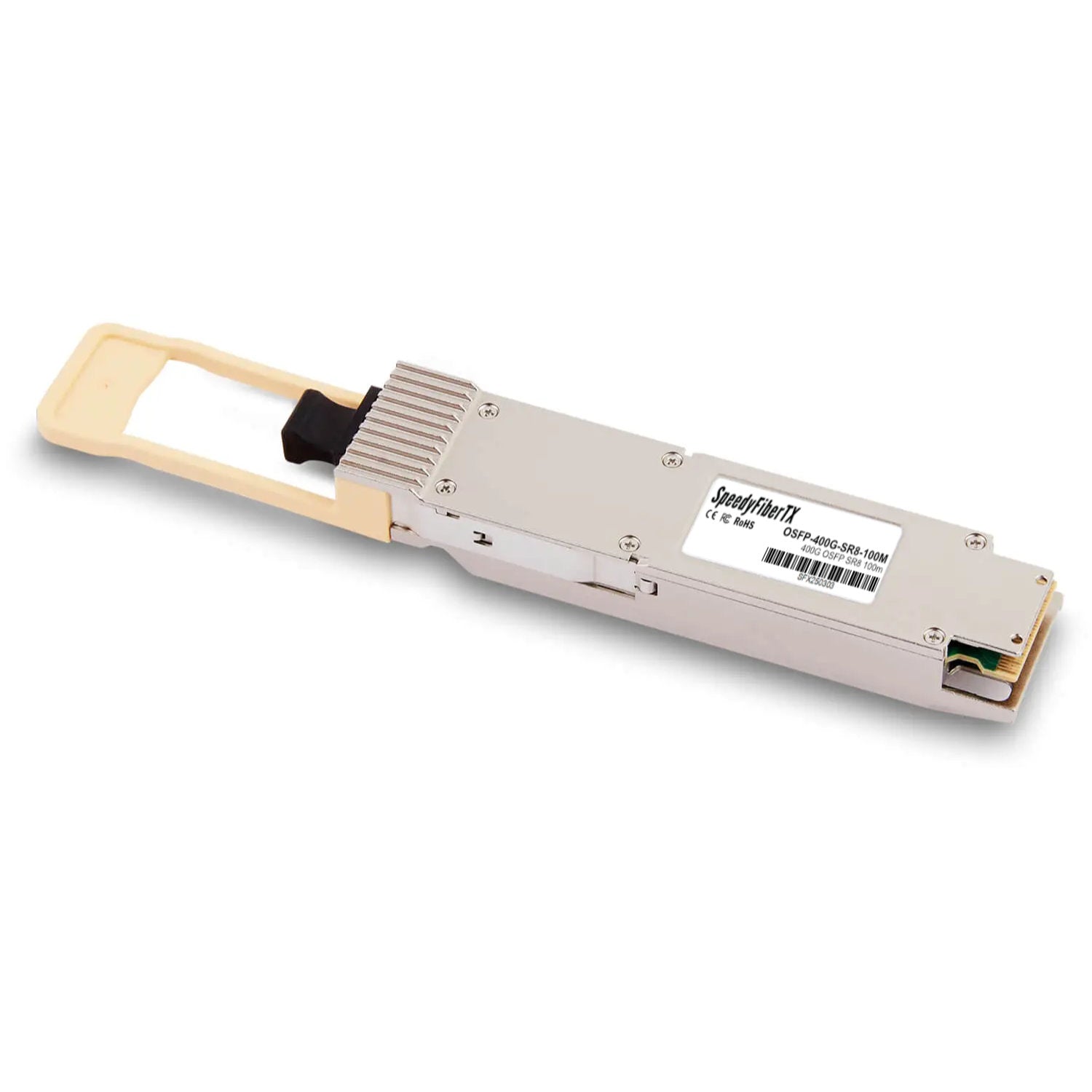

400GBASE-SR8 OSFP Finned Top PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module, Breakout to 2×200G-SR4

$17,252.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Hot-pluggable OSFP Finned Top form factor
  • 8×53.125Gb/s PAM4 channels (aggregate 400Gb/s)
  • 850nm VCSEL laser array and PIN receiver array
  • Up to 70m on OM3 / 100m on OM4 MMF
  • MPO-16 APC or 2×MTP-12 APC connector
  • IEEE802.3cm 400GBASE-SR8 and OSFP MSA compliant
  • Supports breakout to 2×200G-SR4
  • Single 3.3V power supply, power consumption <12W (Max)
  • Digital diagnostic monitoring (DDM/DOM) via I²C
  • Operating temperature 0°C~70°C; RoHS compliant

The 400GBASE-SR8 OSFP Finned Top optical transceiver is a high-performance module designed for short-reach 400GbE applications over multimode fiber (MMF).

It supports eight parallel lanes of 53.125Gb/s PAM4 for an aggregate data rate of 400Gb/s.

Operating at 850nm, it uses a VCSEL laser array and PIN photo-detector array to achieve up to 70m on OM3 and 100m on OM4 fiber.

The module features an MPO-16 APC or dual MTP-12 APC connector, and complies with IEEE802.3cm 400GBASE-SR8 and OSFP MSA standards.

The finned-top housing provides enhanced thermal management, making it ideal for AI clusters, HPC networks, and high-density data centers with breakout support to 2×200G-SR4.
