SpeedyFiberTX  |  SKU: LB-SMTPM424F-UA

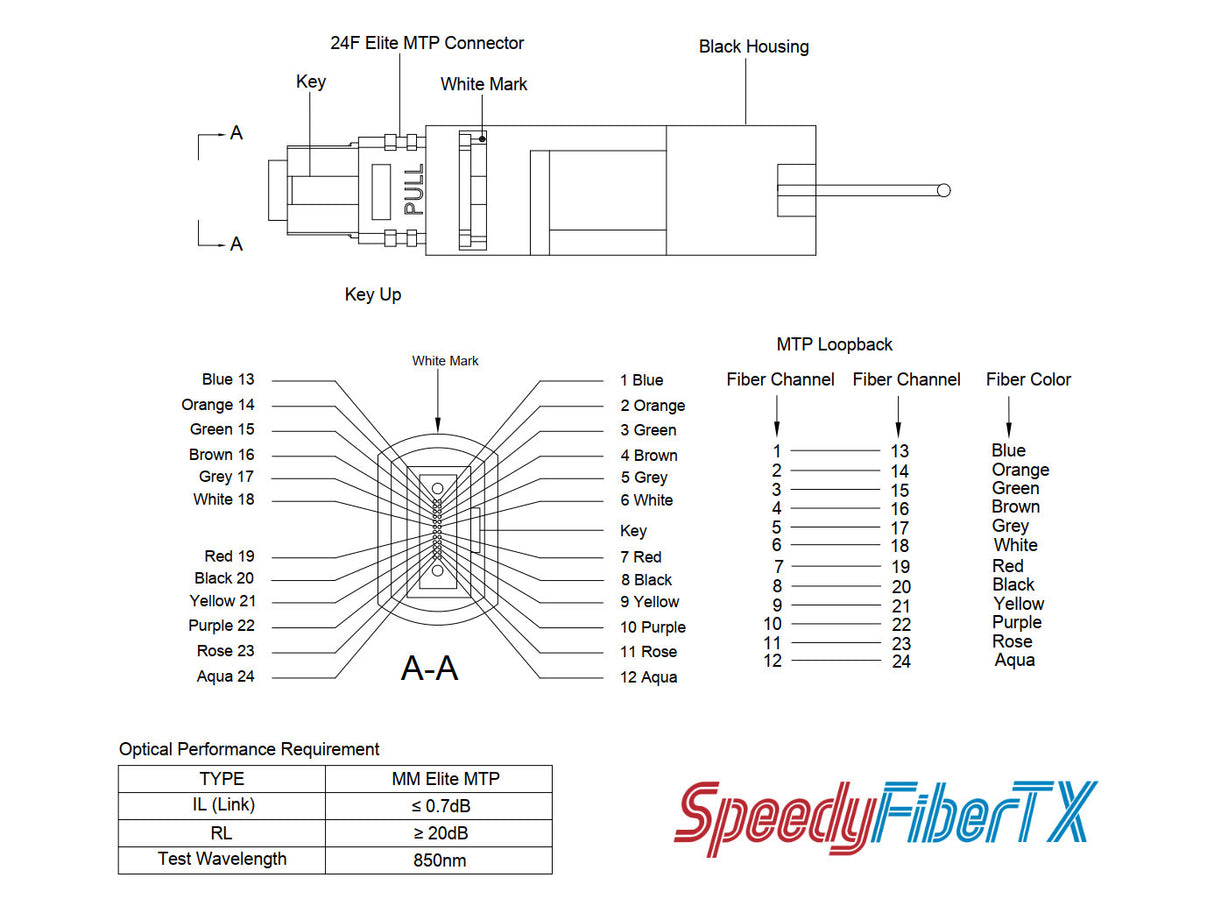

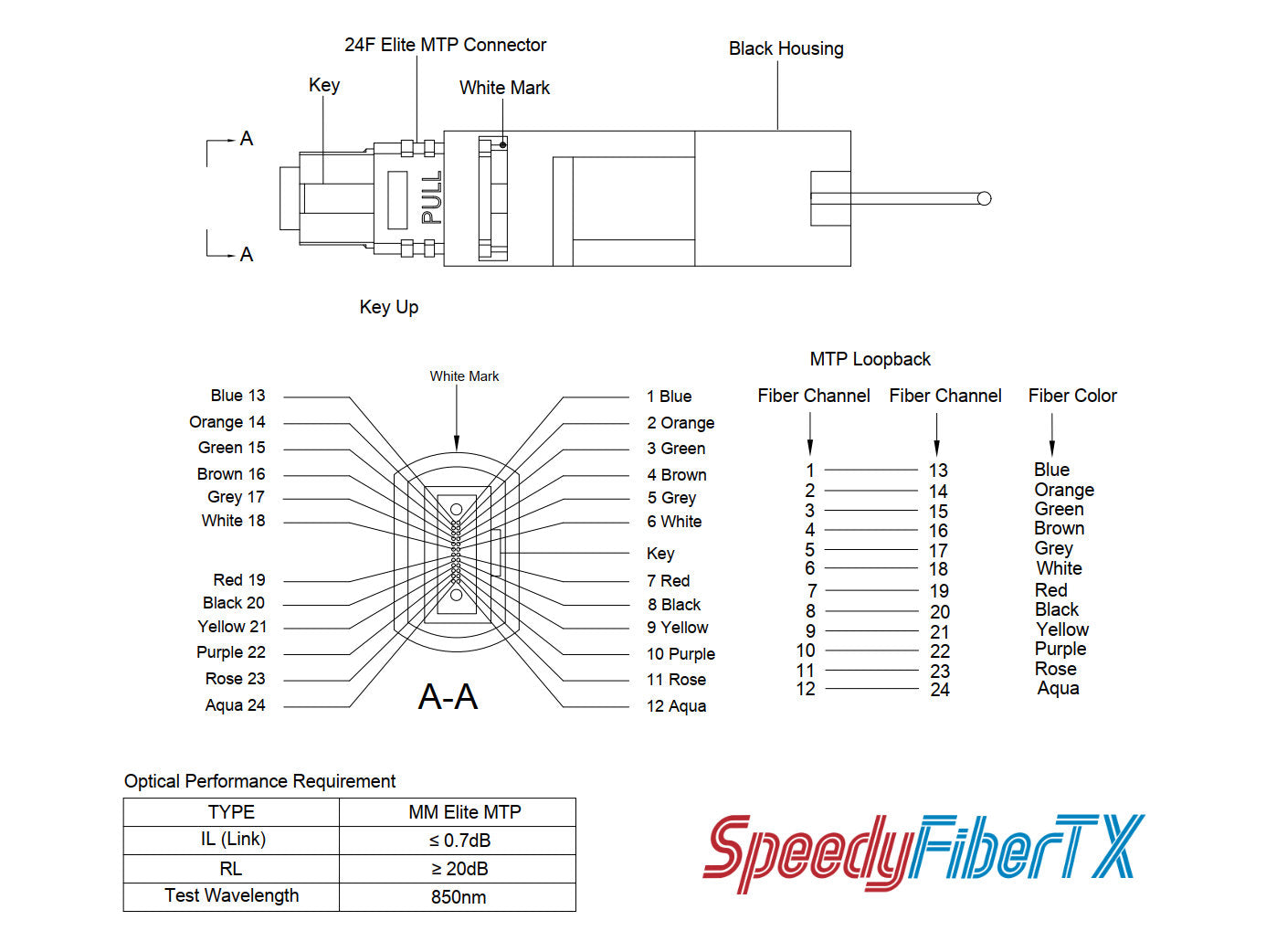

24 Fibers Elite MTP® Female Multimode Fiber Loopback Module

$1,815.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 3–5 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • US Conec MTP® Connector
  • Low Insertion Loss ≤ 1.2dB | High Return Loss ≥ 25dB
  • Easy Insertion and Extraction with Push-pull Design
  • Used in Testing 40G or 100G MPO/MTP® Interface Transceivers
  • Designed for Troubleshooting Network Failure Nodes
  • OM3 Multimode compatible

24 Fibers MTP® Female OM4 Multimode Fiber Loopback Module

MTP® Loopback modules are used widely within testing environment especially within parallel optics 100G networks. Devices allow verification and testing of transceivers featuring MTP® interface – 100GBASE-SR10 CXP/CFP devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP® transceivers interfaces. MTP® loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP® trunks/patch leads.
