SpeedyFiberTX  |  SKU: LB-SMPOM424F-UA

24 Fibers MPO Female Low Loss Multimode Fiber Loopback Module

$1,296.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 3–5 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • MPO Connector – Compatible with US Conec MTP® Interface
  • Low Insertion Loss ≤ 1.2dB | High Return Loss ≥ 25dB
  • Easy Insertion and Extraction with Push-pull Design
  • Used in Testing 40G or 100G MPO/MTP® Interface Transceivers
  • Designed for Troubleshooting Network Failure Nodes
  • OM3 Multimode compatible

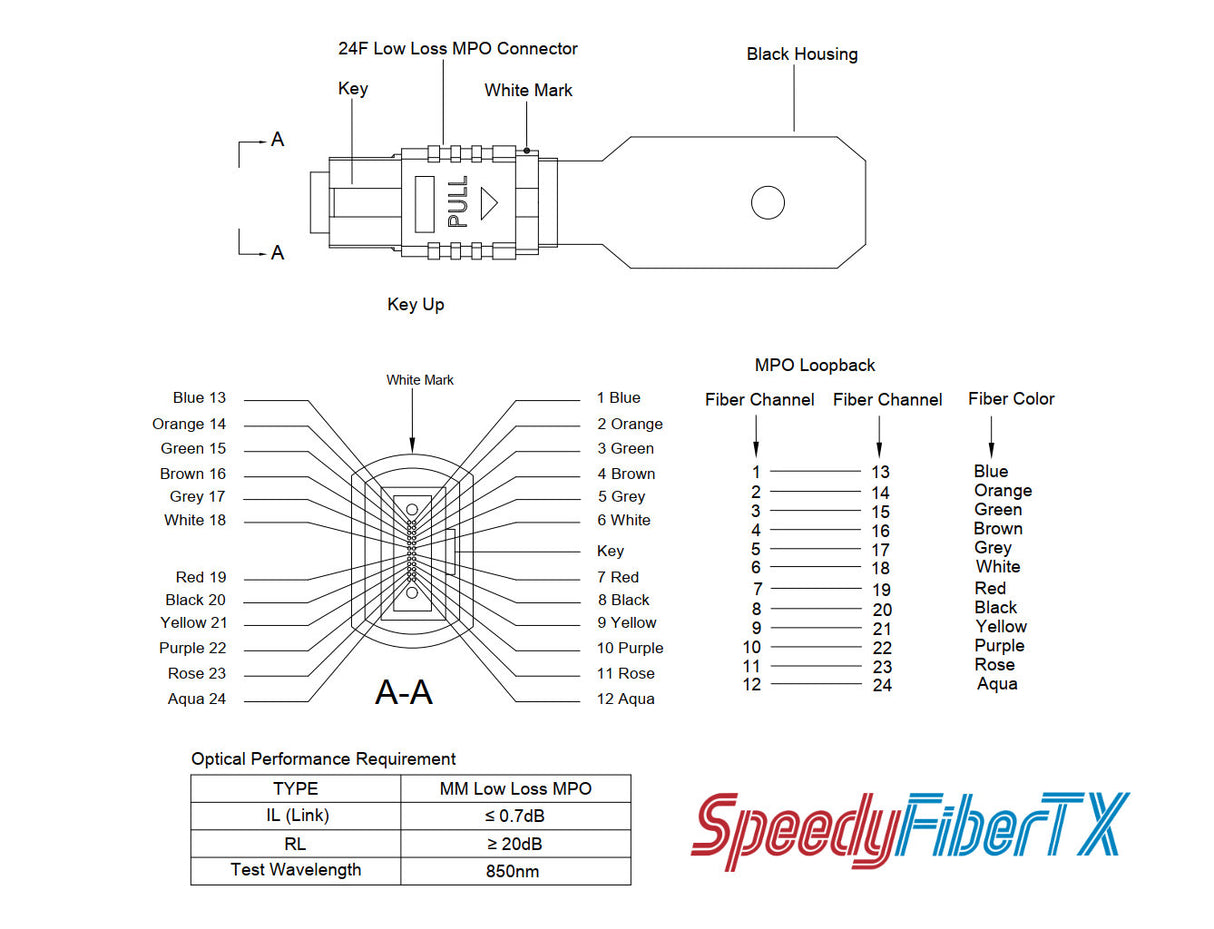

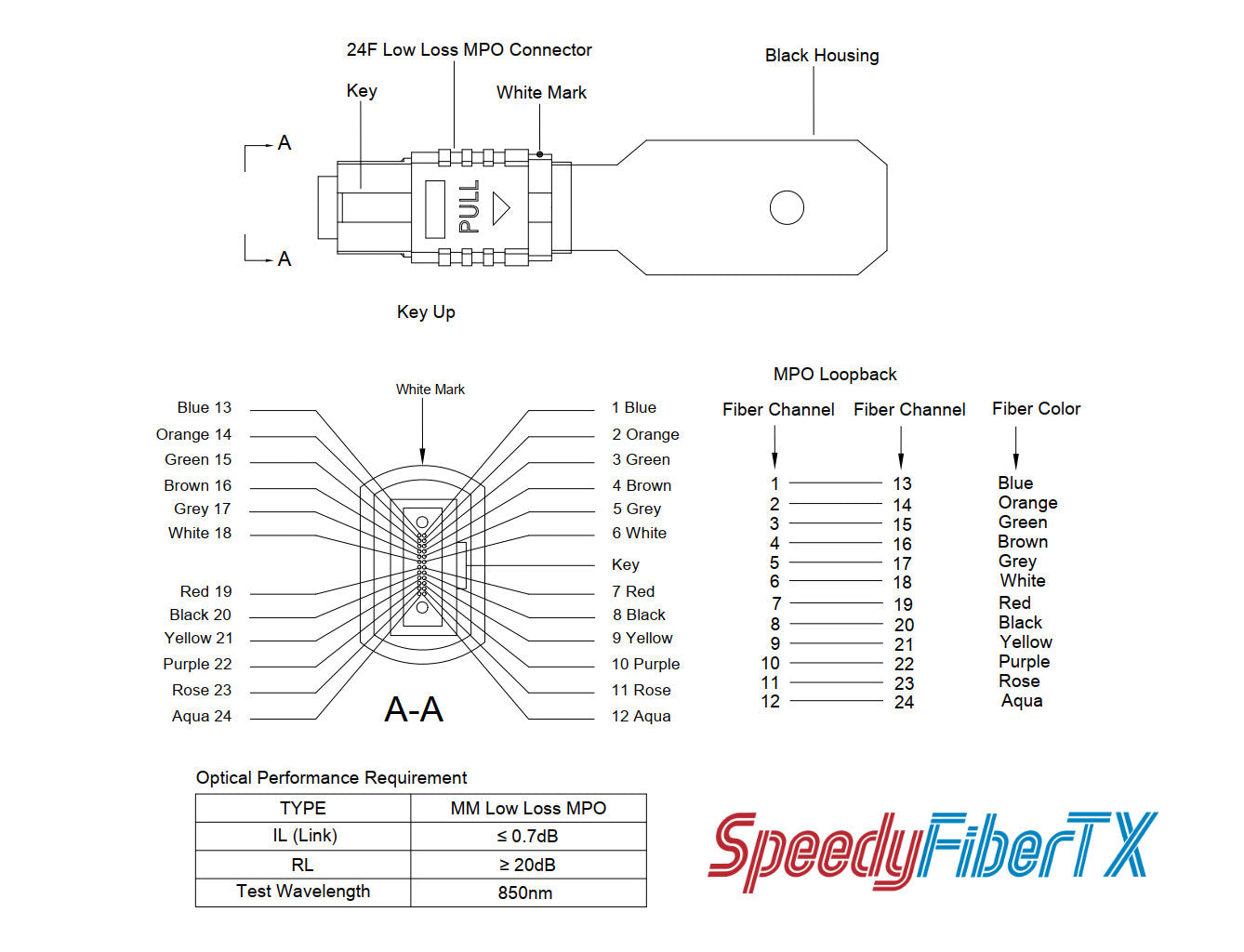

24 MPO Fibers Female OM4 Multimode Fiber Loopback Module

MPO loopback modules are used widely within testing environment especially within parallel optics 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP® interface – 100GBASE-SR10 CXP/CFP devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MPO/MTP® transceivers interfaces. MPO loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP® trunks/patch leads.
