SpeedyFiberTX  |  SKU: QSFP-200G-LR4-10KM

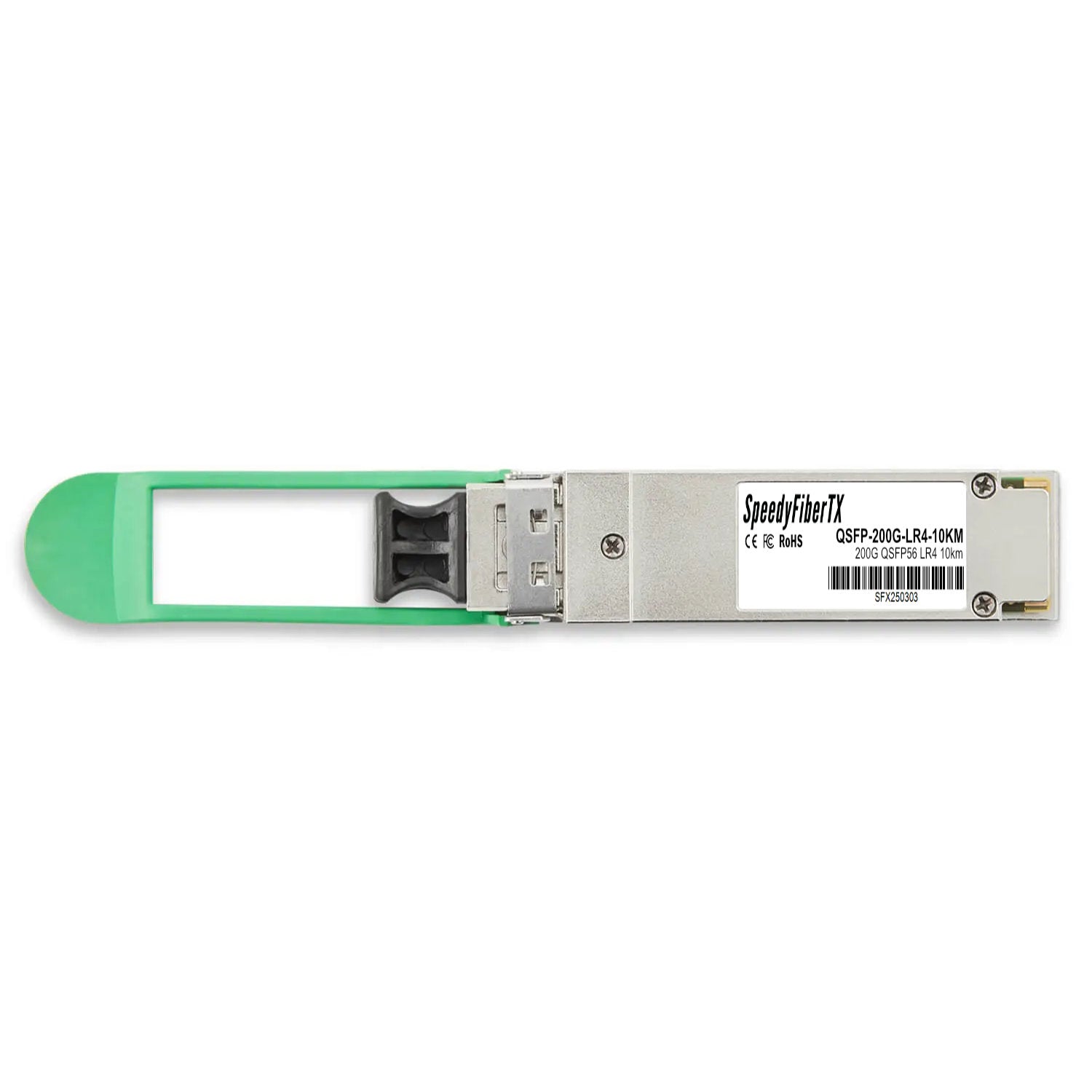

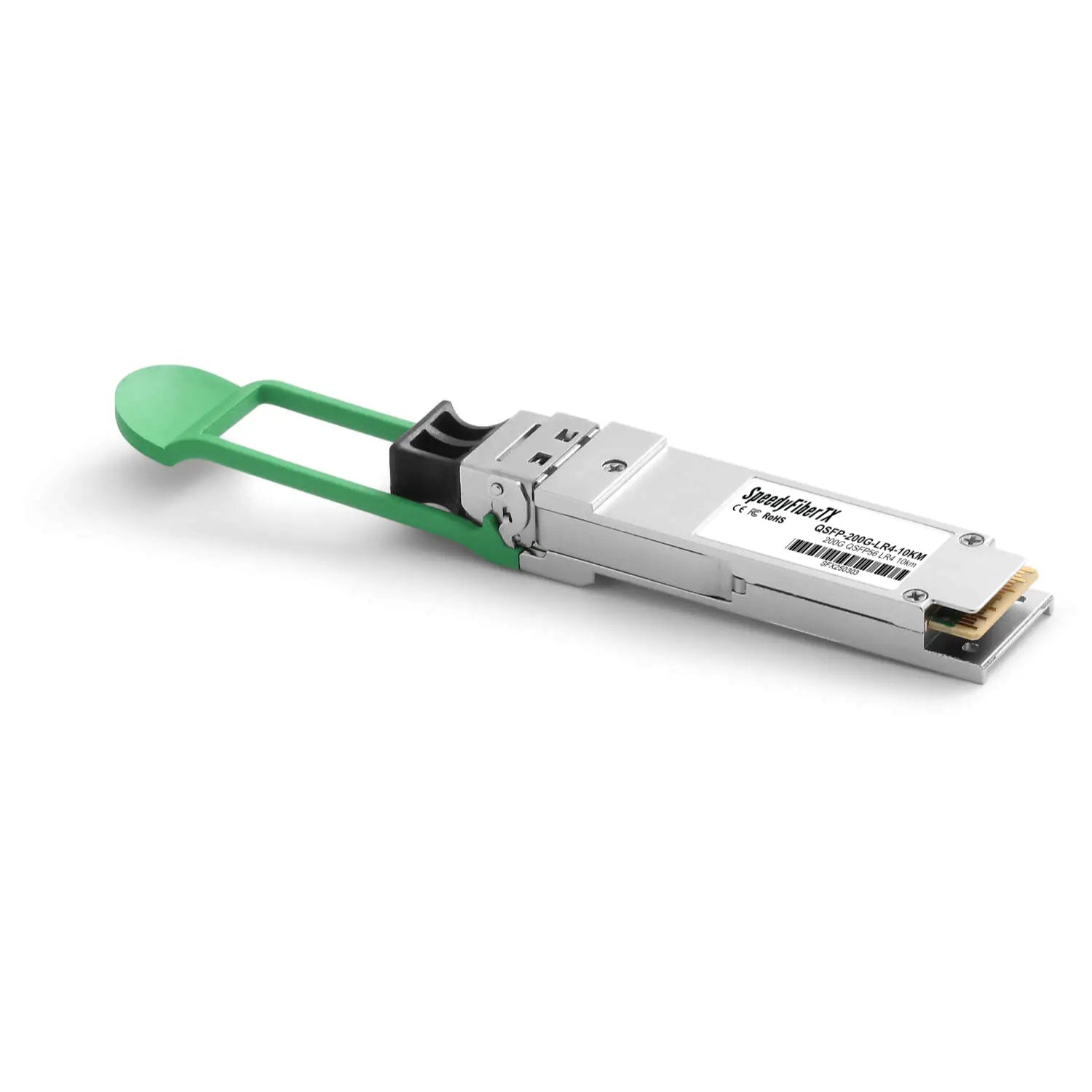

200GBASE-LR4 QSFP56 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

$54,407.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight


• Hot-pluggable QSFP56 form factor
• Duplex LC UPC optical interface
• 4 × 50 Gb/s PAM4 lanes (aggregate 200 Gb/s)
• Compliant with IEEE 802.3bs 200GBASE-LR4 and 200GAUI-4 standards
• LAN-WDM wavelengths (1271 nm, 1291 nm, 1311 nm, 1331 nm)
• Supports up to 10 km over single-mode fiber (SMF)
• Digital diagnostic monitoring (DDM/DOM) via I²C interface
• Single 3.3 V power supply with power dissipation < 8 W
• CMIS 4.0 management interface
• Operating case temperature: 0 °C to +70 °C (Commercial range)
• RoHS compliant

The 200GBASE-LR4 QSFP56 optical transceiver is a hot-pluggable module designed for 200 Gigabit Ethernet applications over single-mode fiber (SMF) up to 10 km. It integrates four lanes of 50 Gb/s PAM4 signals for an aggregate data rate of 200 Gb/s. Each lane uses a LAN-WDM wavelength (1271 nm, 1291 nm, 1311 nm, 1331 nm) and employs a cooled EA-DFB laser with PIN receiver and low-noise TIA for superior signal integrity.
The module complies with IEEE 802.3bs 200GBASE-LR4 and CMIS 4.0 standards, and supports digital diagnostic monitoring via the I²C interface. It is ideal for data-center inter-rack connections, telecom aggregation links, and long-reach high-capacity networks requiring stable 200 G optical performance.
