SpeedyFiberTX | SKU: LB-SMTPSM12F-AY

12 Fibers MTP® Female Single-mode Loopback Module

Configuration Option

Product variants

$1,546.00 TWD

Tax included Shipping calculated at checkout.

Highlight

US Conec MTP® Connector
Low Insertion Loss ≤ 1.0dB, High Return Loss ≥ 50dB
Easy Insertion and Extraction with Push-pull Design
Used in Testing 40G or 100G MPO/MTP® Interface Transceivers
Designed for Troubleshooting Network Failure Nodes

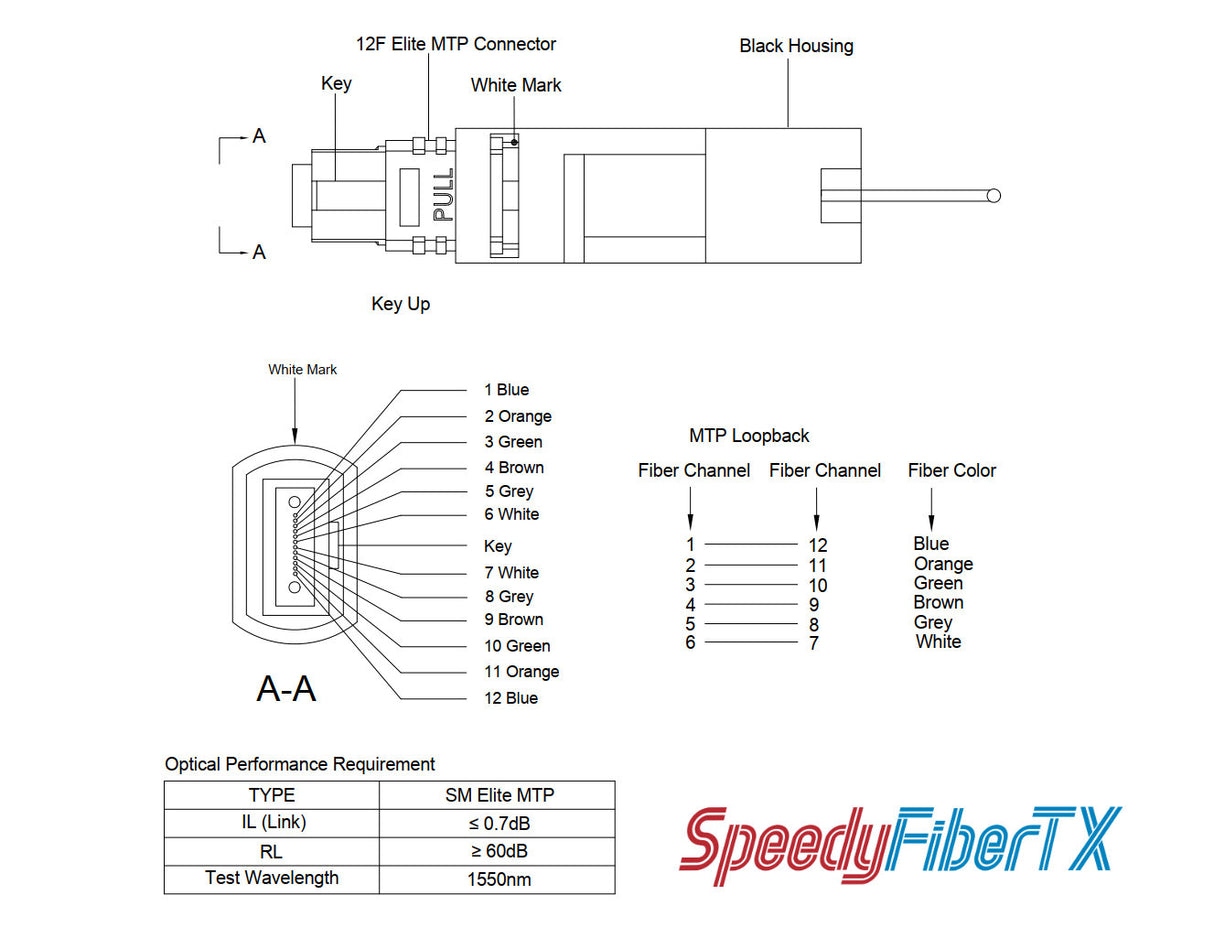

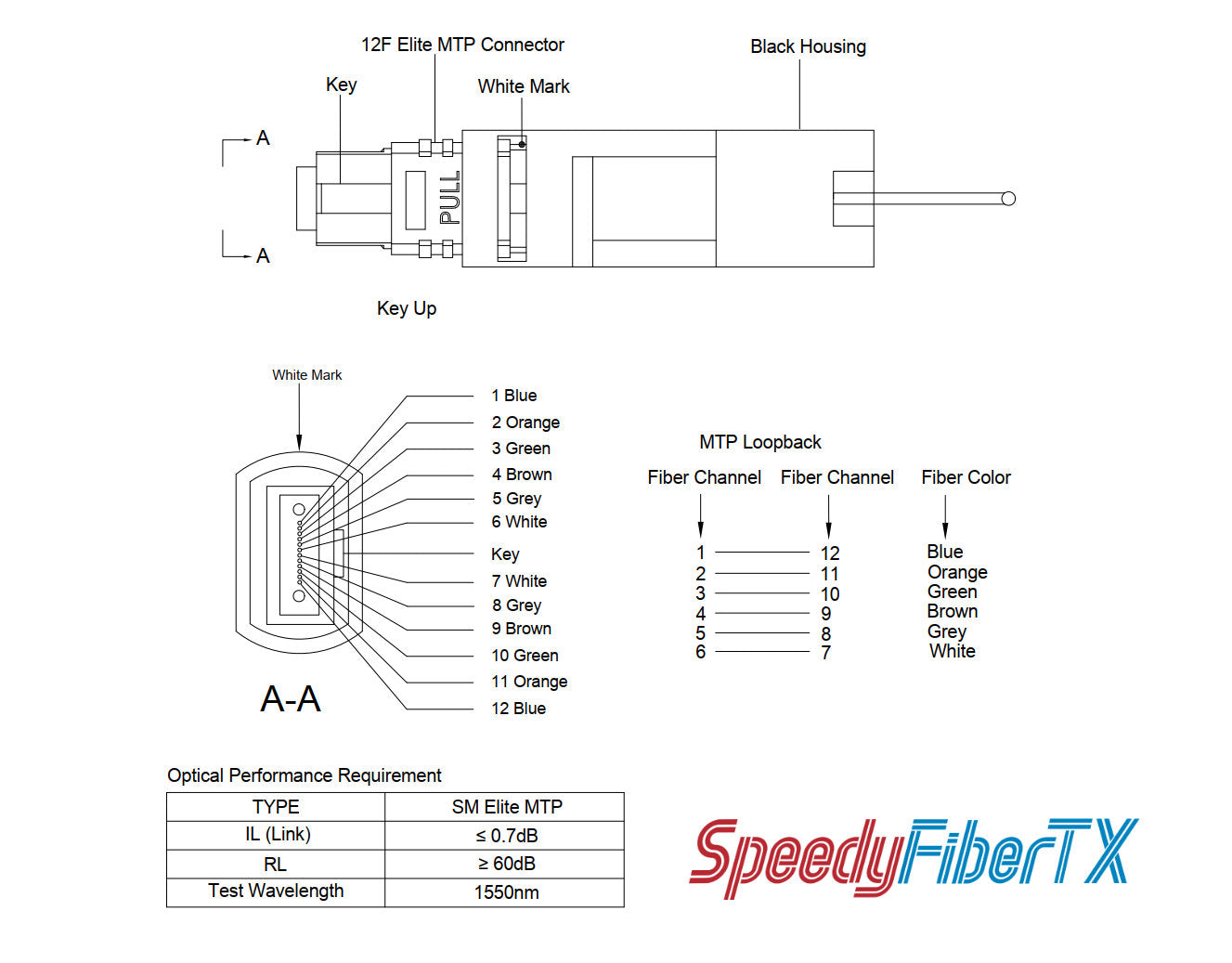

12 Fibers MTP® Female Single-mode Loopback Module

MTP® loopback modules are used widely within testing environment especially within parallel optics 40/100G networks. Devices allow verification and testing of transceivers featuring MTP® interface – 40G PLR4 or 100G PSM4 devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP® transceivers interfaces. MTP® loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP® trunks/patch leads.
