SpeedyFiberTX  |  SKU: LB-SMPOM412M-UA

12 Fibers MPO Male Low Loss Multimode Fiber Loopback Module

$944.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 3–5 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • MPO Connector – Compatible with US Conec MTP® Interface
    •
  • Low Insertion Loss ≤ 1.2dB | High Return Loss ≥ 25dB
  • Easy Insertion and Extraction with Push-pull Design
  • Used in Testing 40G or 100G MPO/MTP® Interface Transceivers
  • Designed for Troubleshooting Network Failure Nodes
  • OM3 Multimode compatible

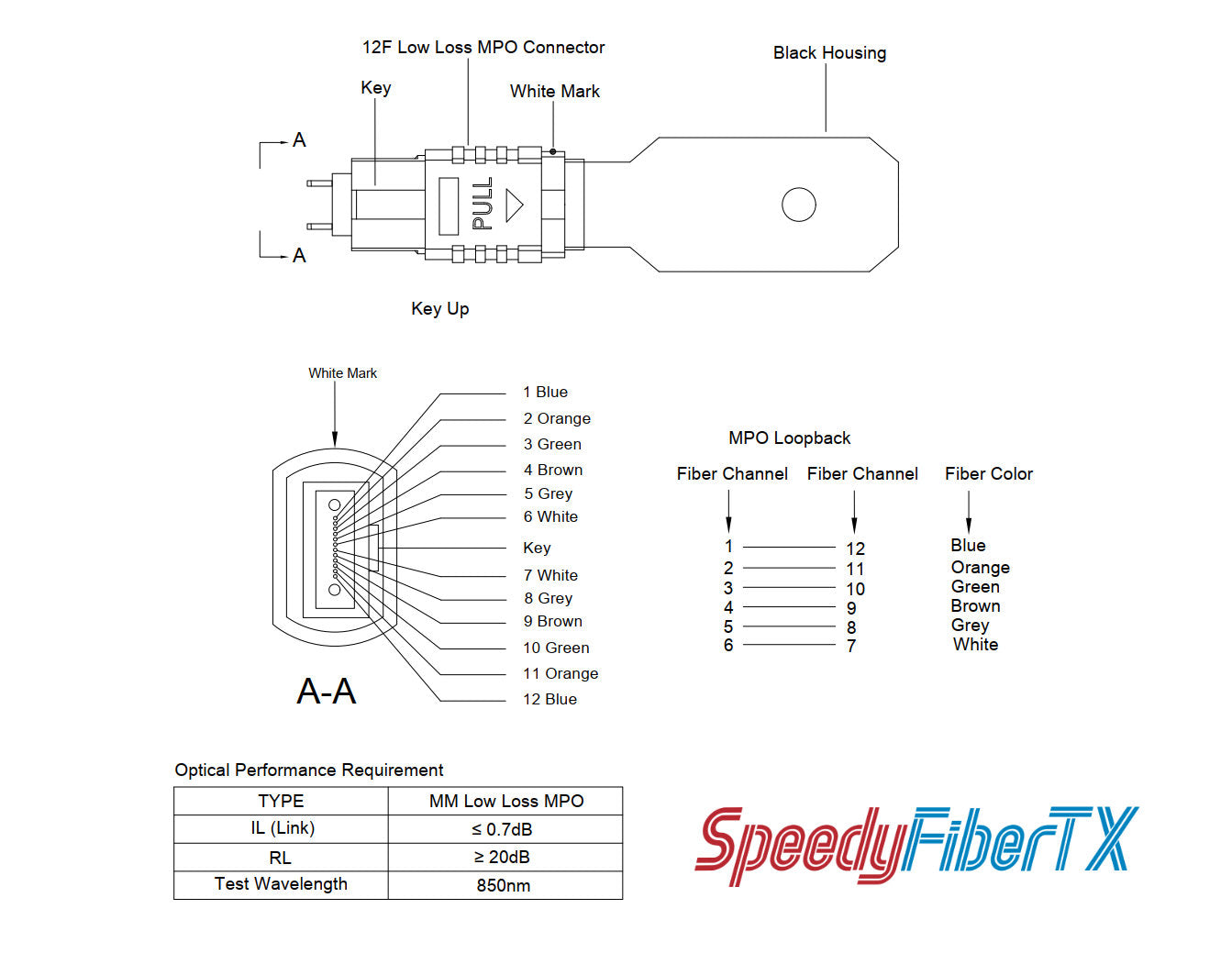

12 MPO Fibers Male Multimode Fiber Loopback Module

MPO loopback modules are used widely within testing environment especially within parallel optics 40/100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP® interface – 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MPO/MTP® transceivers interfaces. MPO loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP® trunks/patch leads.
