SpeedyFiberTX  |  SKU: QSFP-100G-ZR4-S-80KM

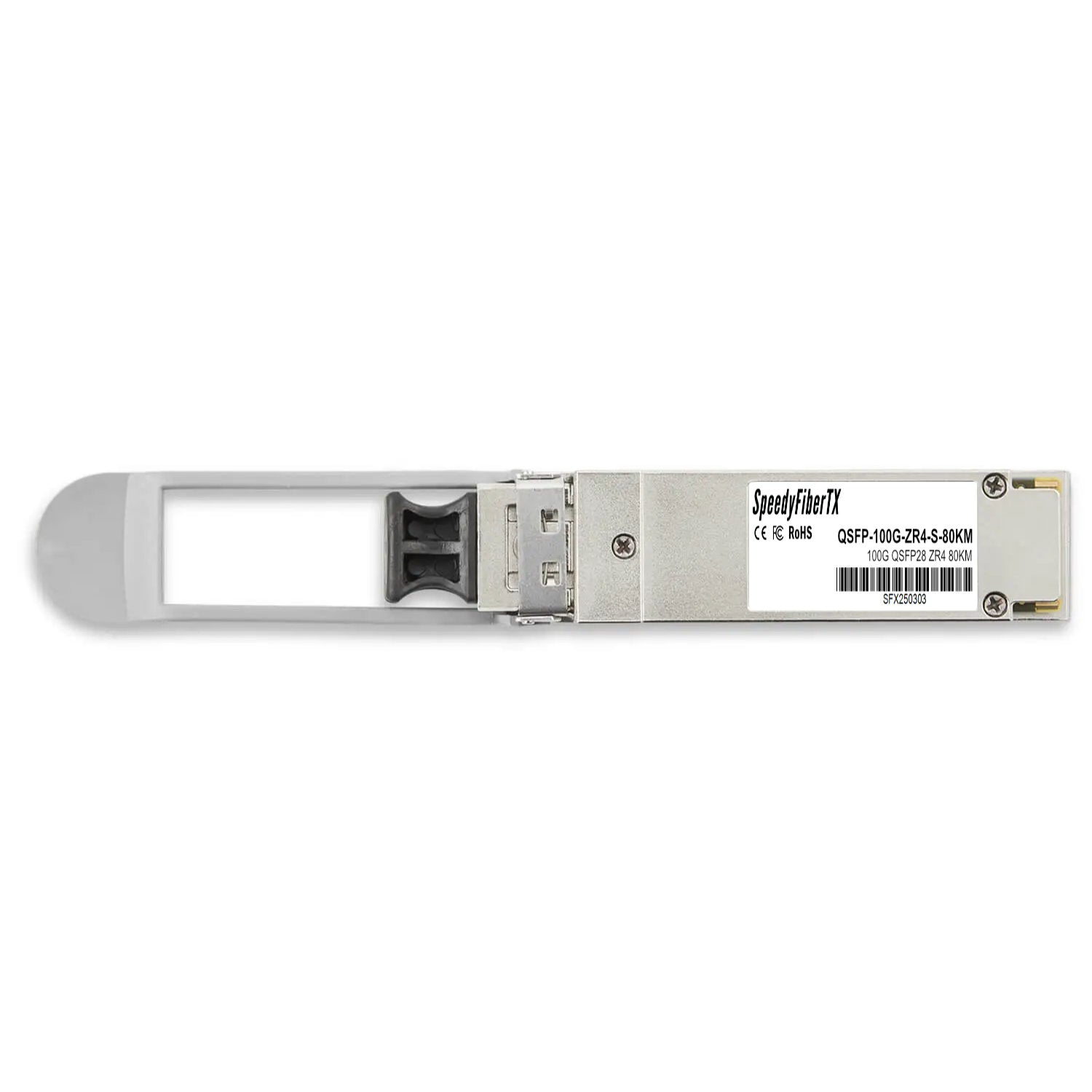

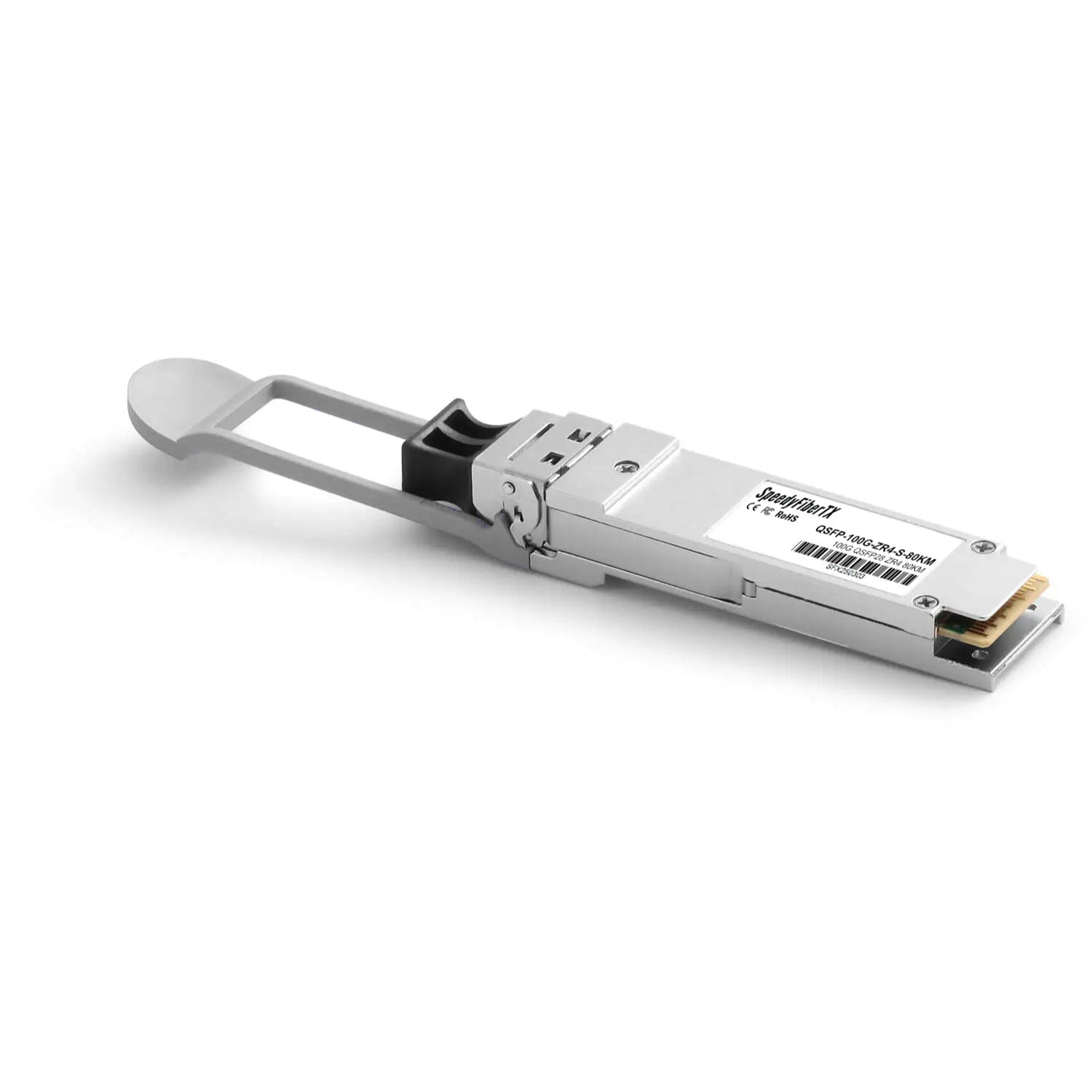

100GBASE-ZR4 QSFP28 Optical Transceiver Module, 1310nm LAN-WDM 80km SMF, DOM Monitoring, LC-UPC Interface, OTU4-Compatible

$69,092.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Compliant with 100GBASE-ZR4
  • Support line rates from 103.125 Gb/s to 111.81 Gb/s OTU4
  • LAN WDM EML laser and PIN receiver with SOA
  • Up to 80km reach for G.652 SMF
  • Hot pluggable 38 pin electrical interface
  • QSFP28 MSA compliant
  • Duplex LC optical receptacle
  • RoHS-10 compliant and lead-free
  • Single +3.3V power supply
  • Maximum power consumption 6.5W
  • Case operating temperature:  0 ~ +70℃

00GBASE-ZR4 QSFP28 Optical Transceiver Module, 1310nm LAN-WDM 80km SMF, DOM Monitoring, LC-UPC Interface, OTU4-Compatible

This product is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
