SpeedyFiberTX  |  SKU: QSFP-100G-CWDM4-S-2KM

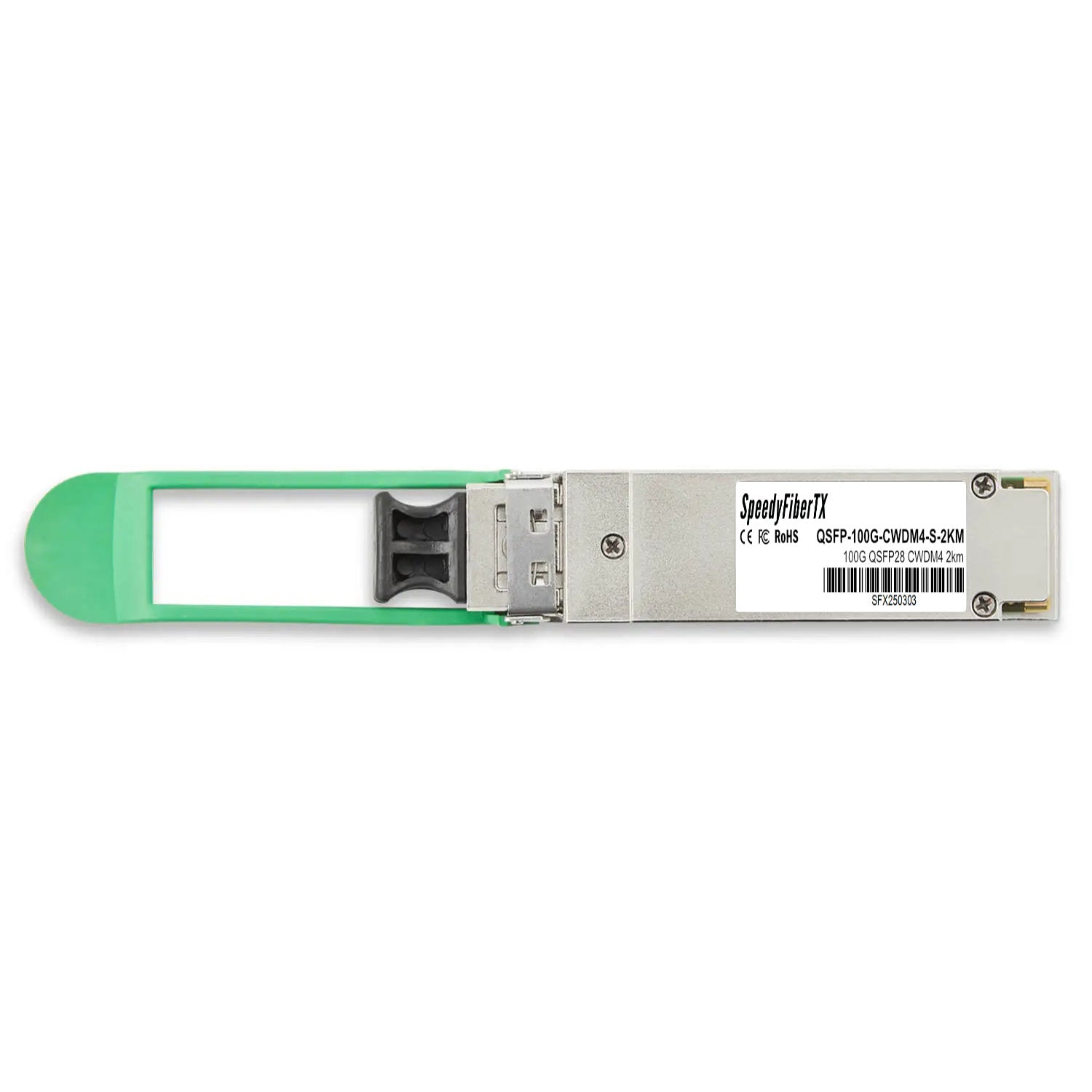

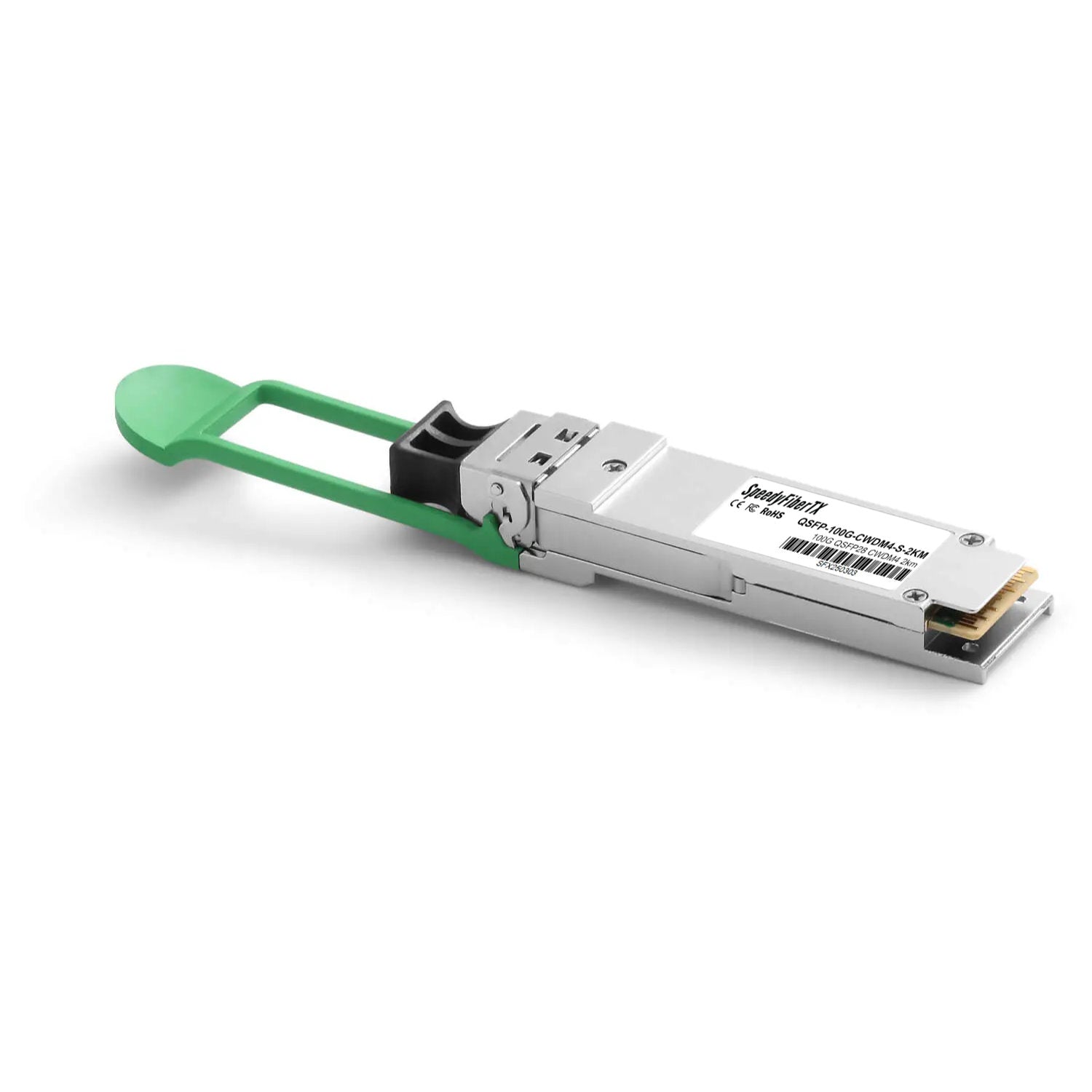

100GBASE-CWDM4 QSFP28 Optical Transceiver Module, 1271-1331nm 2km SMF, DOM Monitoring, LC-UPC Interface

Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Request a Quote
Highlight
  • Electrical interface: retimed CAUI-4 per 100G Ethernet IEEE 802.3bm Annex 83E
  • Hot pluggable
  • Link budget assumes the use of KR4 FEC by the host
  • Uncooled CWDM DFB lasers, directly modulated
  • User controllable Transmit Input Equalization and Receiver Output Amplitude
  • Fiber connector: SMF LC duplex connector
  • Power dissipation < 3.5W
  • Distance up to 2km
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Operating case temperature: 0℃~+70℃
  • RoHS6 compliant (lead free)

100GBASE-CWDM4 QSFP28 Optical Transceiver Module, 1271–1331nm 2km SMF, DOM Monitoring, LC-UPC Interface

The QSFP28 100G-CWDM4-2km module is a highly integrated 4x25G transceiver focused on reach, bandwidth, density and cost for high port-count 100G systems, and client-side 100G interfaces. It is compliant with the 100G 4WDM-10 MSA, which is based on the CWDM4 MSA version 1.1. It is interoperable with CWDM4 transceivers over a 2 km reach.
