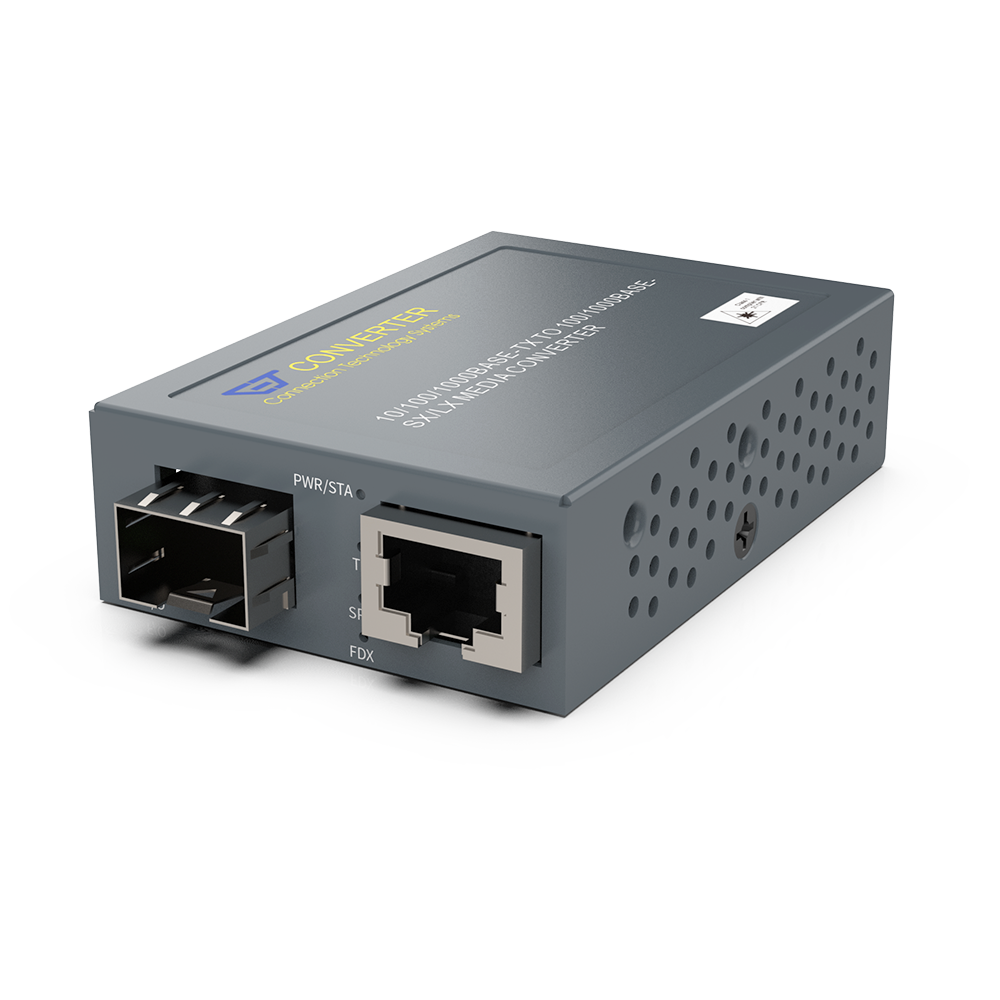

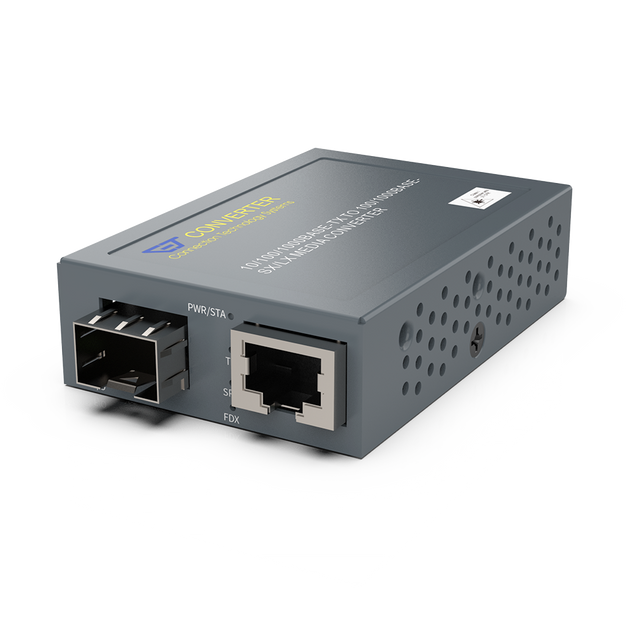

Low Power Consumption Gigabit Ethernet Compact Media Converter - TAA
Highlight
Low Power Consumption Gigabit Ethernet Compact Media Converter - TAA has a longer lead time. Please feel free to contact us via chat before placing your order.
📦 For bulk orders, please contact us for a customized quote
The Gigabit Fiber Media Converter converts standard RJ-45 Ethernet into high-performance optical signals. Designed with an SFP slot, it offers maximum flexibility to support a wide range of transceiver options—including SC, LC, BiDi, and WDM—depending on the module installed. This compact and reliable converter greatly extends transmission distances, making it an excellent choice for FTTH, apartment networks, and campus deployments.
Crafted in Taiwan, it reflects the precision and durability of a premium networking device. Unlike mass-produced alternatives, it delivers consistent quality that IT professionals and enthusiasts can trust.
✨ Audiophile Advantage
For discerning audio enthusiasts, fiber transmission provides natural electrical isolation, eliminating ground loops and reducing noise commonly introduced over copper Ethernet. This ensures a cleaner digital signal path, delivering a blacker background and more stable streaming performance. When paired with high-grade single-mode fiber and a low-noise linear power supply, it enhances detail, clarity, and musical presence—making it a refined addition to high-end audio systems.
Hardware
-
10/100/1000Base-T
-
1000Base-X (BTFX/W2X/SFP)
-
100Base-FX
-
Store and Forward
-
Auto-MDI/MDI-X
-
Auto-negotiation in TP Port
-
Flow Control
-
MAC Address Table: 2K
-
Memory Buffer: 64K Bytes
-
Slide-in Chassis: CVT-RACK Series
-
Dimension (W × D × H): 71 × 94 × 26 mm
-
Operating Temperature (Humidity): 0–50 °C (5–90%)
-

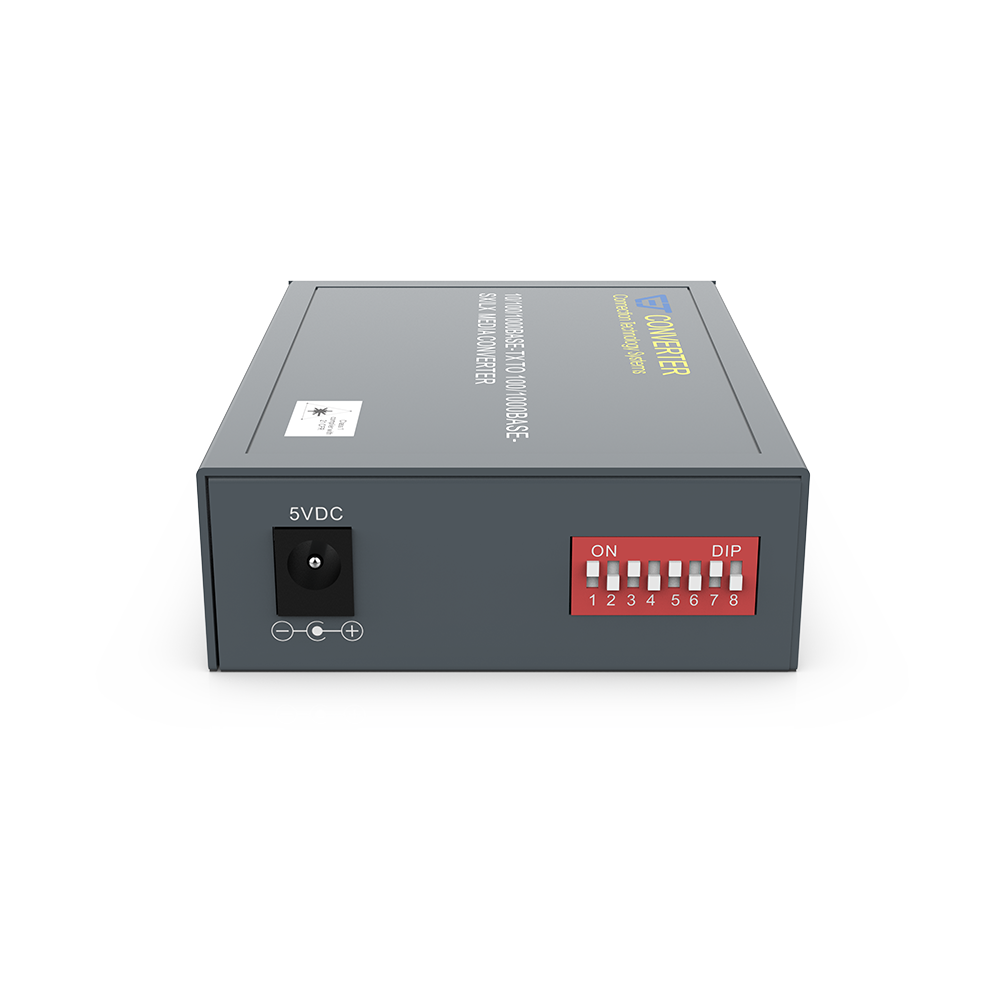

Power Source: 5VDC
-
Power Consumption: 1.5W
Management & Features
-
Link Alarm
Certifications
-
EMC/Safety: FCC Class A, CE
