SpeedyFiberTX  |  SKU: QDD-400G-LR4-10KM

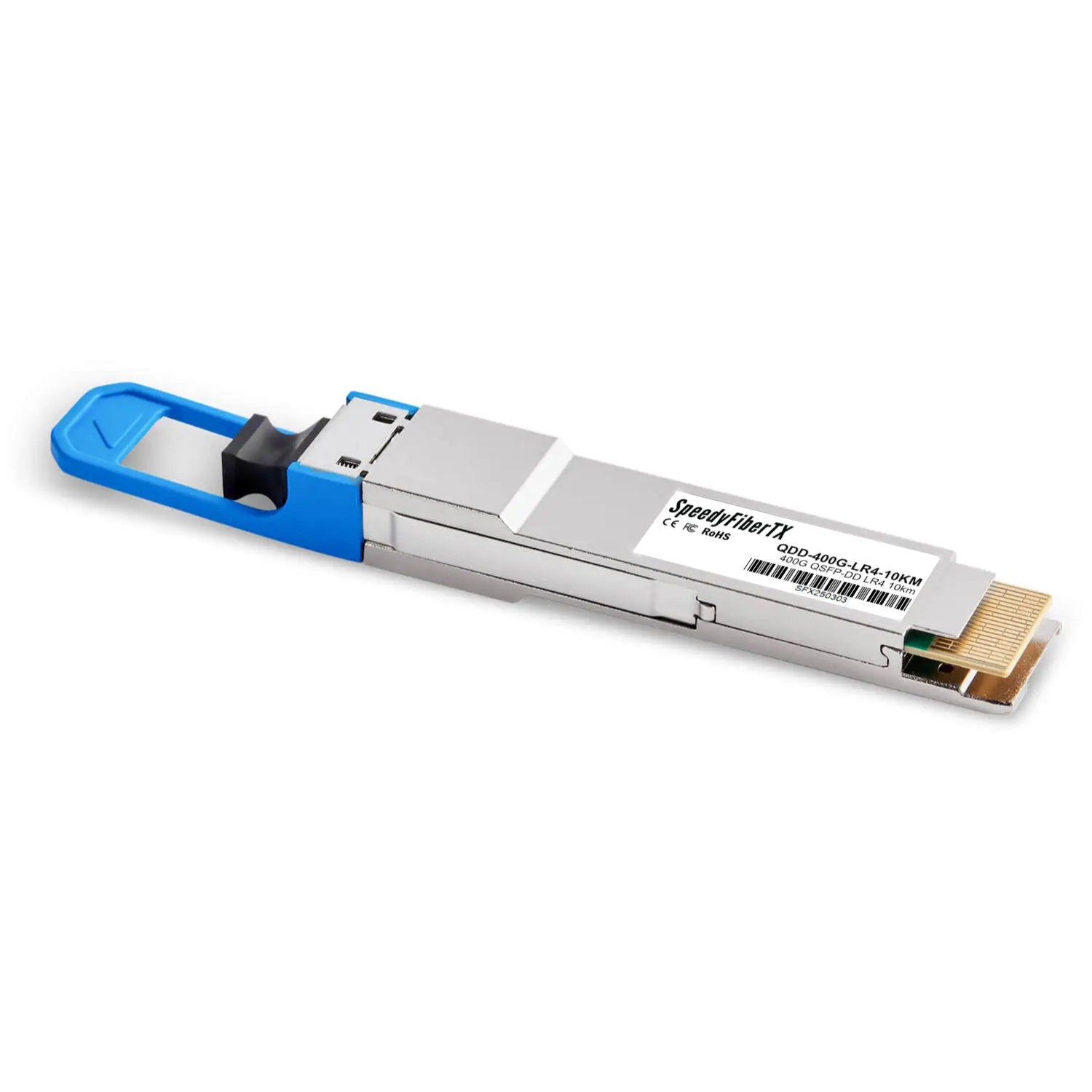

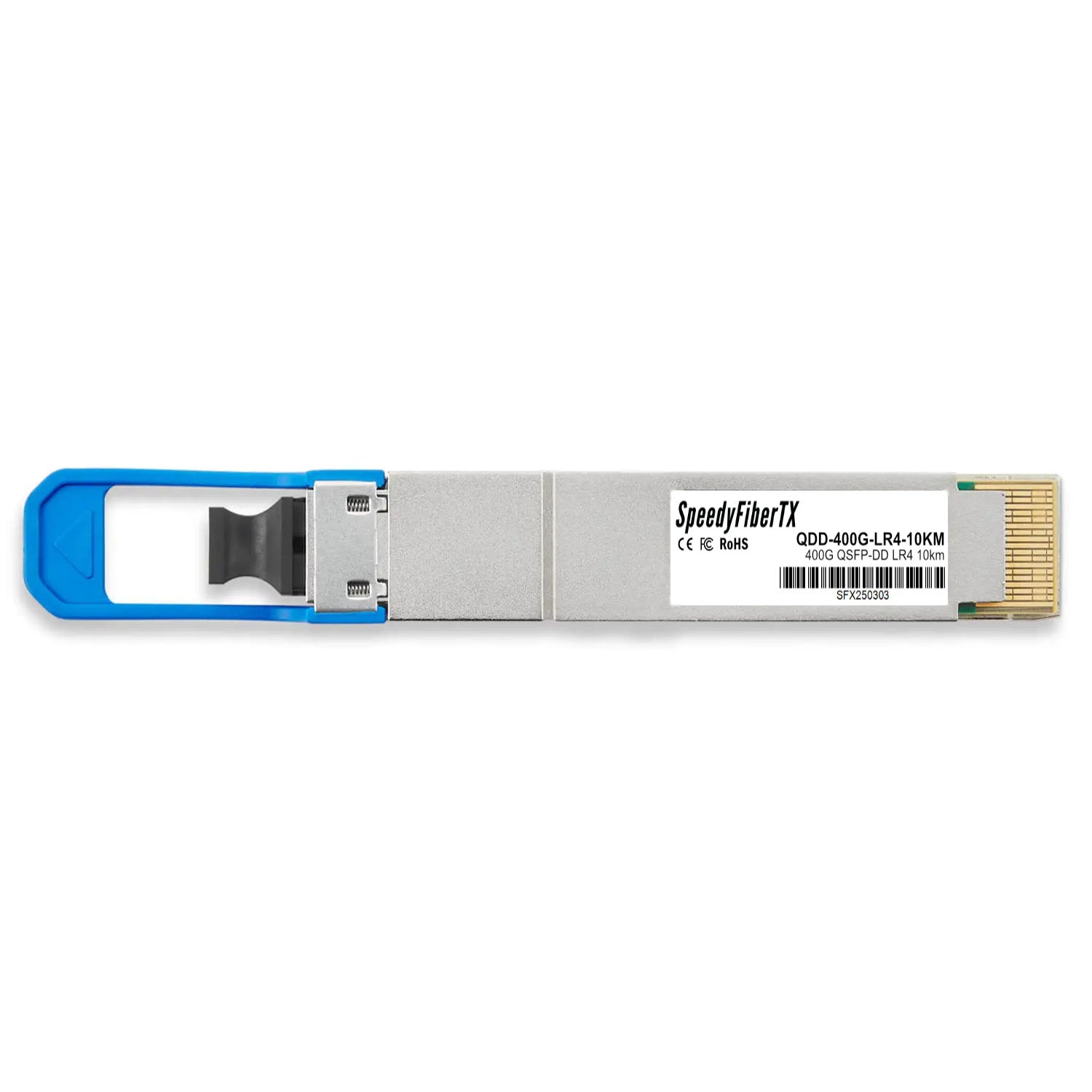

400GBASE-LR4 QSFP-DD PAM4 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

$23,012.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Hot-pluggable QSFP-DD form factor
  • 4 CWDM lanes (1271/1291/1311/1331nm) MUX/DEMUX design
  • Duplex LC/UPC optical interface
  • Compliant with IEEE802.3bs and 100GLambda MSA 400G-LR4
  • 8×53.125Gb/s (PAM4) electrical lanes via 400GAUI-8 interface
  • Up to 10km transmission over SMF with FEC support
  • Digital diagnostic monitoring (DDM/DOM) via I²C interface
  • Single 3.3V power supply, power consumption <10W
  • Operating case temperature: 0°C~+70°C
  • RoHS compliant

The 400GBASE-LR4 QSFP-DD optical transceiver is a high-performance module designed for 400GbE long-reach applications up to 10km over single-mode fiber (SMF).

It integrates 8×53.125Gb/s (PAM4) electrical lanes into 4 CWDM optical lanes of 106.25Gb/s each, multiplexed and demultiplexed for 400Gb/s aggregate data transmission.

Operating at central wavelengths of 1271nm, 1291nm, 1311nm, and 1331nm as defined in ITU-T G.694.2, this module uses a duplex LC connector and requires host FEC to achieve 10km reach. Compliant with IEEE802.3bs, 100GLambda MSA 400G-LR4, and QSFP-DD MSA, it supports digital diagnostics (DDM/DOM) via the I²C interface and is optimized for high-density data center and telecom backbone networks.
