SpeedyFiberTX  |  SKU: QDD-400G-ER8-40KM

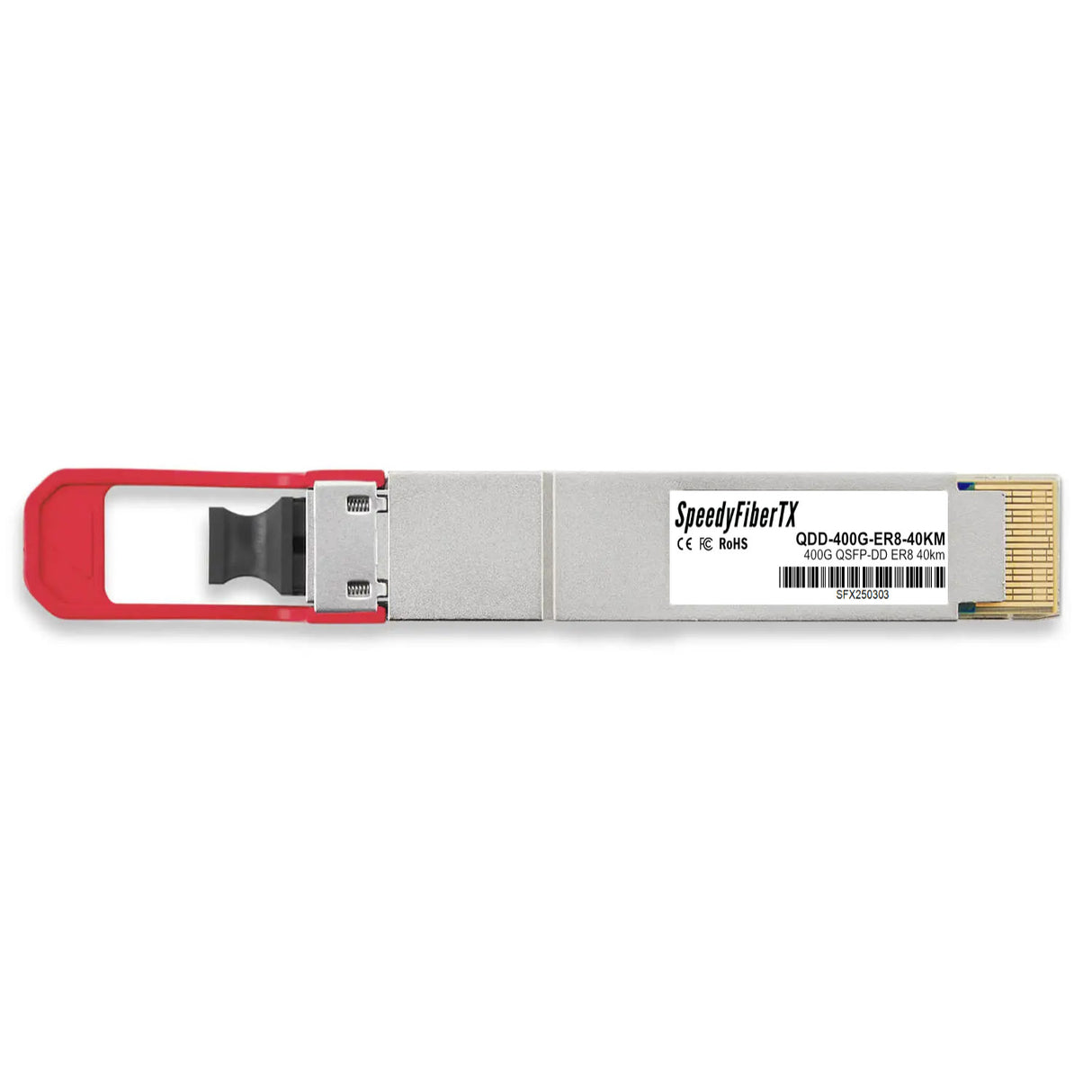

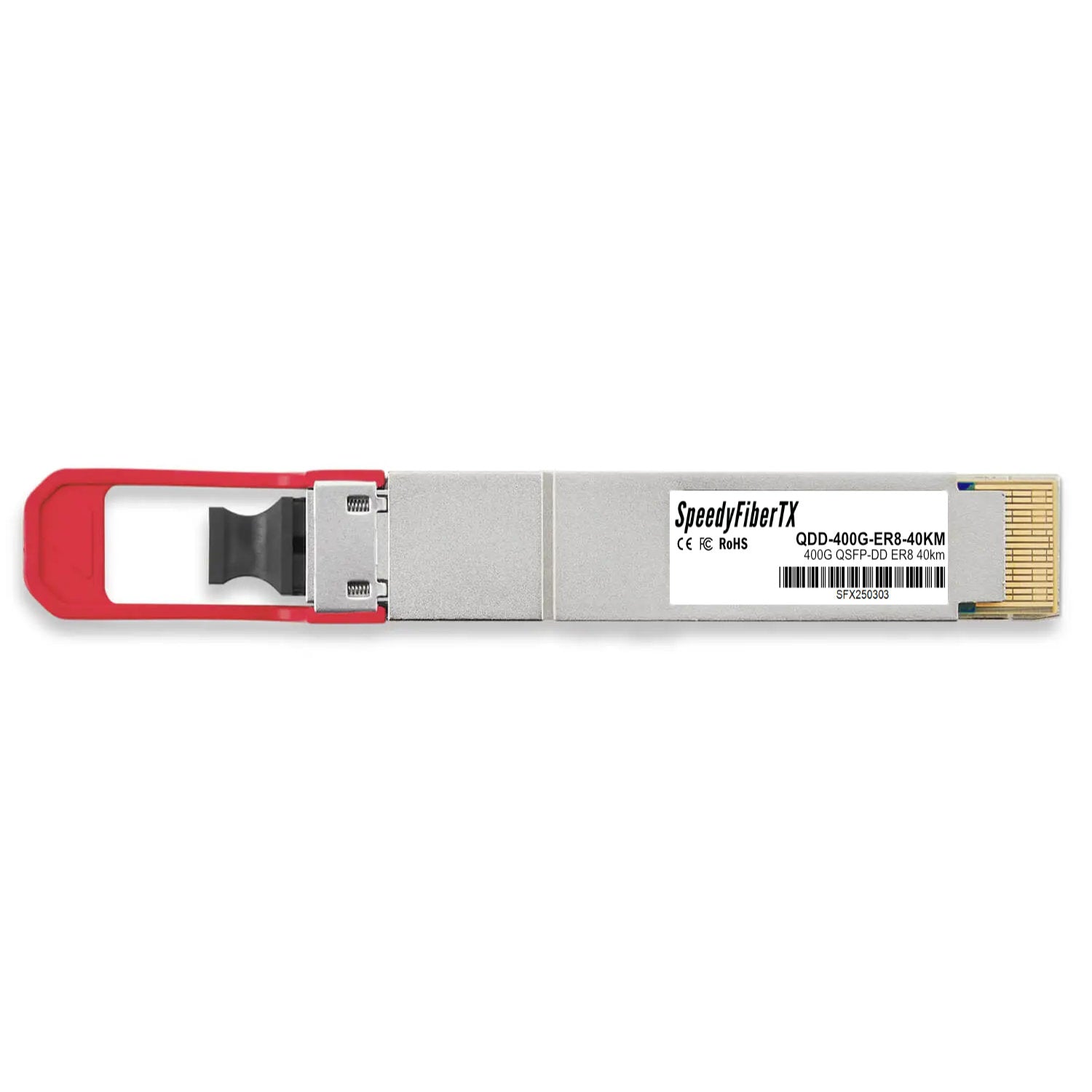

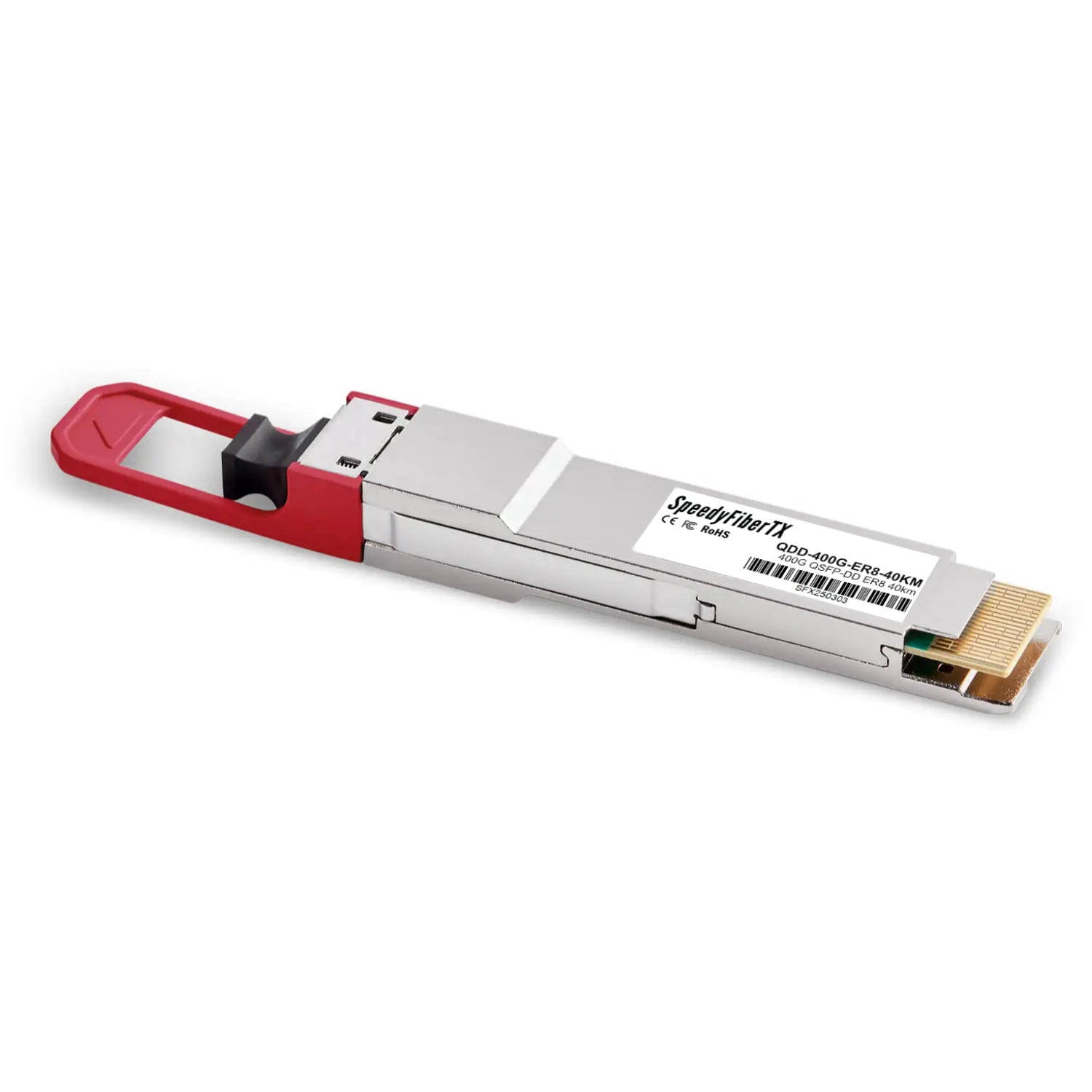

400GBASE-ER8 QSFP-DD PAM4 1310nm 40km DOM Duplex LC/UPC SMF Optical Transceiver Module

$201,572.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Hot-pluggable QSFP-DD form factor
  • 8 parallel LWDM optical lanes (1264.5–1337.5nm)
  • Duplex LC/UPC optical interface
  • IEEE 802.3cn 400GBASE-ER8 compliant
  • 8×53.125Gb/s (PAM4) electrical interface (400GAUI-8)
  • Up to 40km over SMF with FEC
  • Digital diagnostic monitoring (DDM/DOM) via I²C
  • Power consumption <14W (Max)
  • Operating case temperature 0°C ~ 70°C
  • RoHS compliant

The 400GBASE-ER8 QSFP-DD optical transceiver is a high-performance module designed for 400GbE long-haul applications up to 40km over single-mode fiber (SMF).

It converts 8×53.125Gb/s (PAM4) electrical inputs into 8 LWDM optical channels multiplexed within the 1310nm band (1264.5–1337.5nm) for an aggregate data rate of 400Gb/s.

On the receiver side, the module demultiplexes the 8 optical channels and converts them back to 8 PAM4 electrical outputs.

Compliant with IEEE 802.3cn 400GBASE-ER8, QSFP-DD MSA HW Rev 5.0, and CMIS 4.0, it supports digital diagnostics via the I²C interface and is optimized for carrier-grade and data center backbone networks.
