SpeedyFiberTX  |  SKU: OSFP-400G-SR4-50M

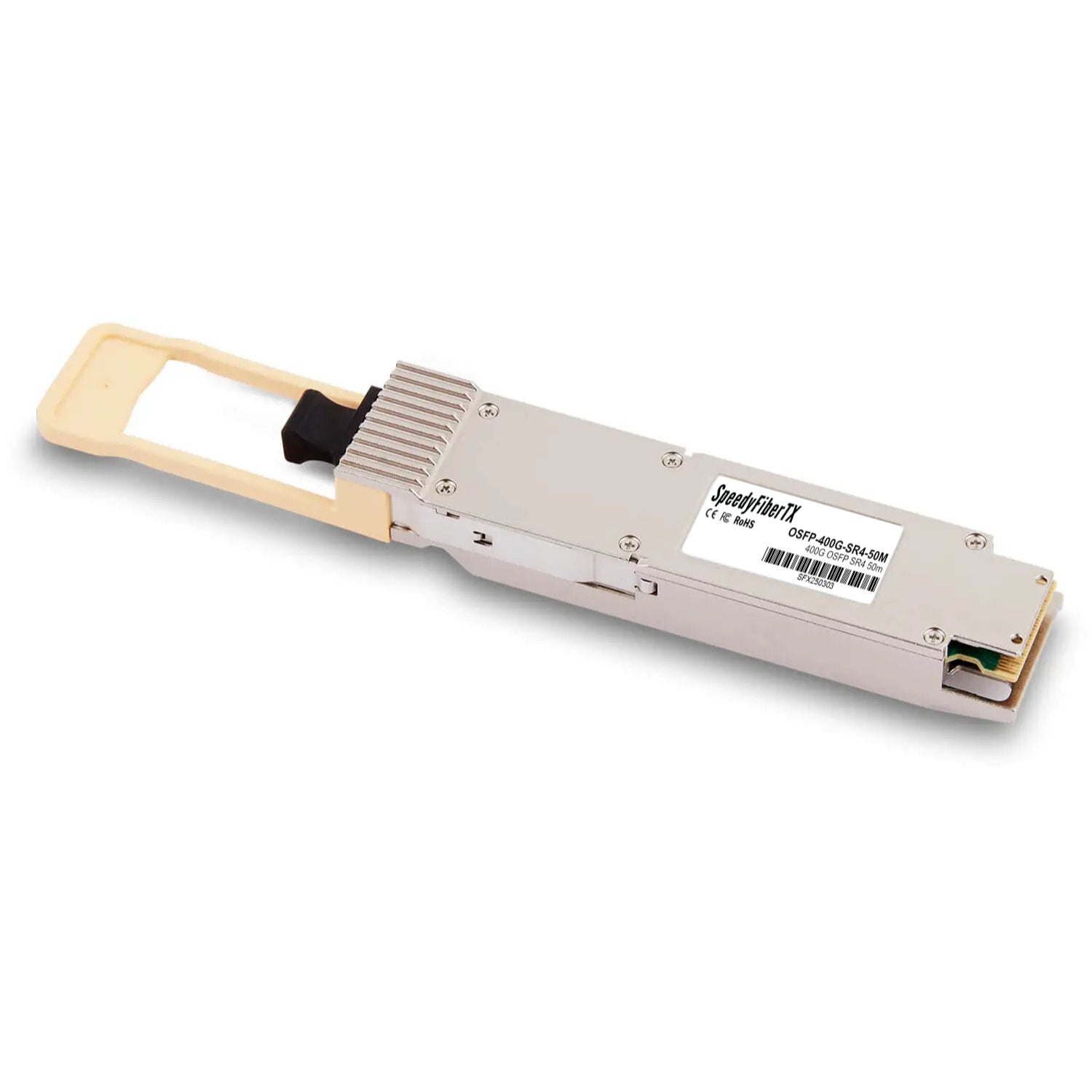

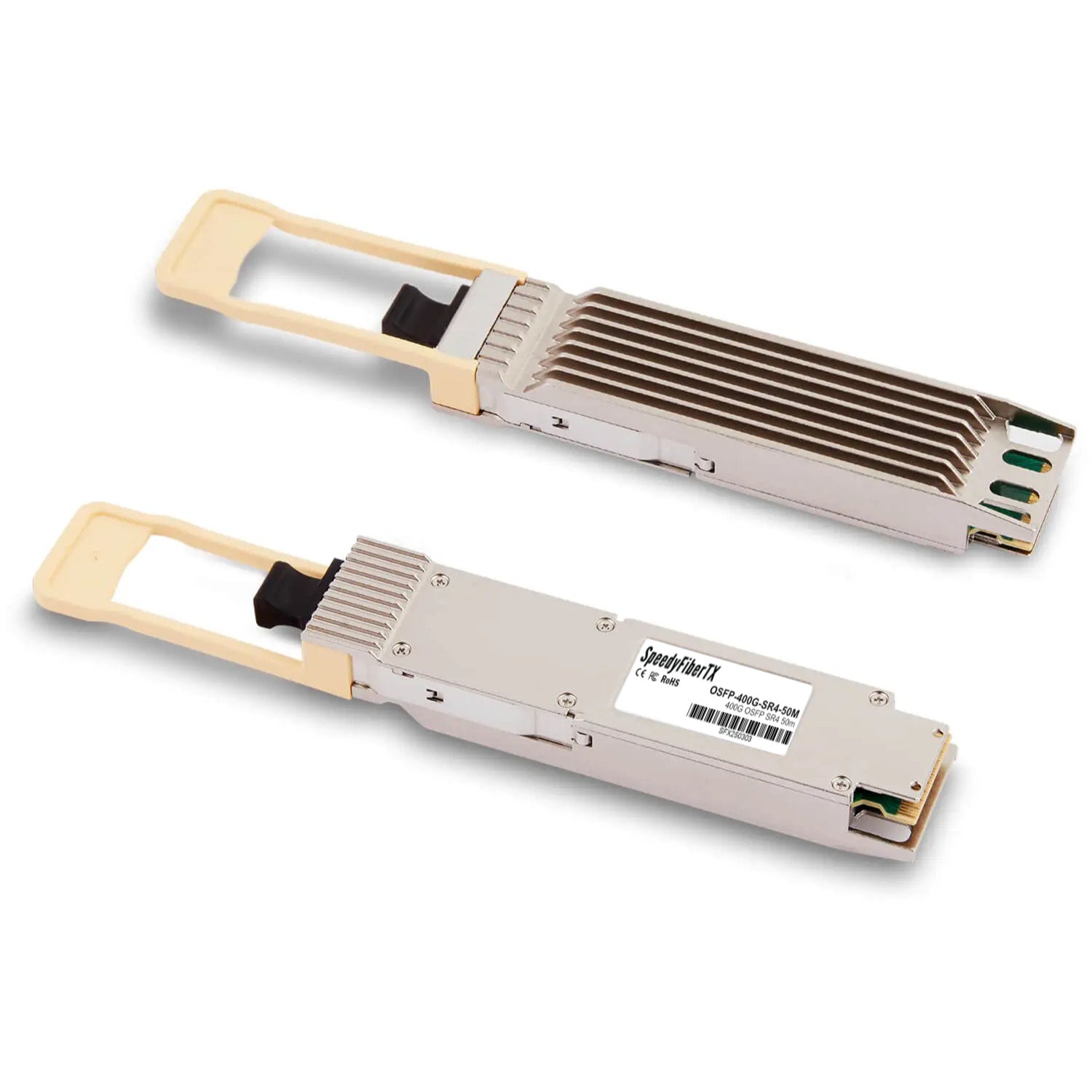

400GBASE-SR4 OSFP Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF Optical Transceiver Module

$20,132.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Hot-pluggable OSFP Flat Top form factor
  • 4×106.25Gb/s PAM4 channels (aggregate 400Gb/s)
  • 850nm VCSEL laser array and PIN photodiode receiver
  • Up to 30m over OM3 / 50m over OM4 MMF
  • MPO-12/APC optical interface
  • Compliant with IEEE802.3db and OSFP MSA
  • Single 3.3V power supply, power consumption <9W
  • Digital diagnostic monitoring (DDM/DOM) via I²C interface
  • Operating case temperature: 0°C~70°C
  • RoHS compliant

The 400GBASE-SR4 OSFP Flat Top optical transceiver is a high-performance, hot-pluggable module designed for short-reach 400GbE applications over multimode fiber (MMF).

It supports four parallel channels of 106.25Gb/s PAM4 for an aggregate data rate of 400Gb/s.

Operating at 850nm, it uses a VCSEL laser array and PIN photodiode array, achieving link distances up to 30m over OM3 and 50m over OM4 fiber.

The module adopts an MPO-12/APC connector and complies with IEEE802.3db and OSFP MSA, supporting digital diagnostics via the I²C interface.

It is ideal for high-density 400G Ethernet, AI clusters, and top-of-rack interconnects in data centers.
