SpeedyFiberTX  |  SKU: OSFP-400G-DR4-500M

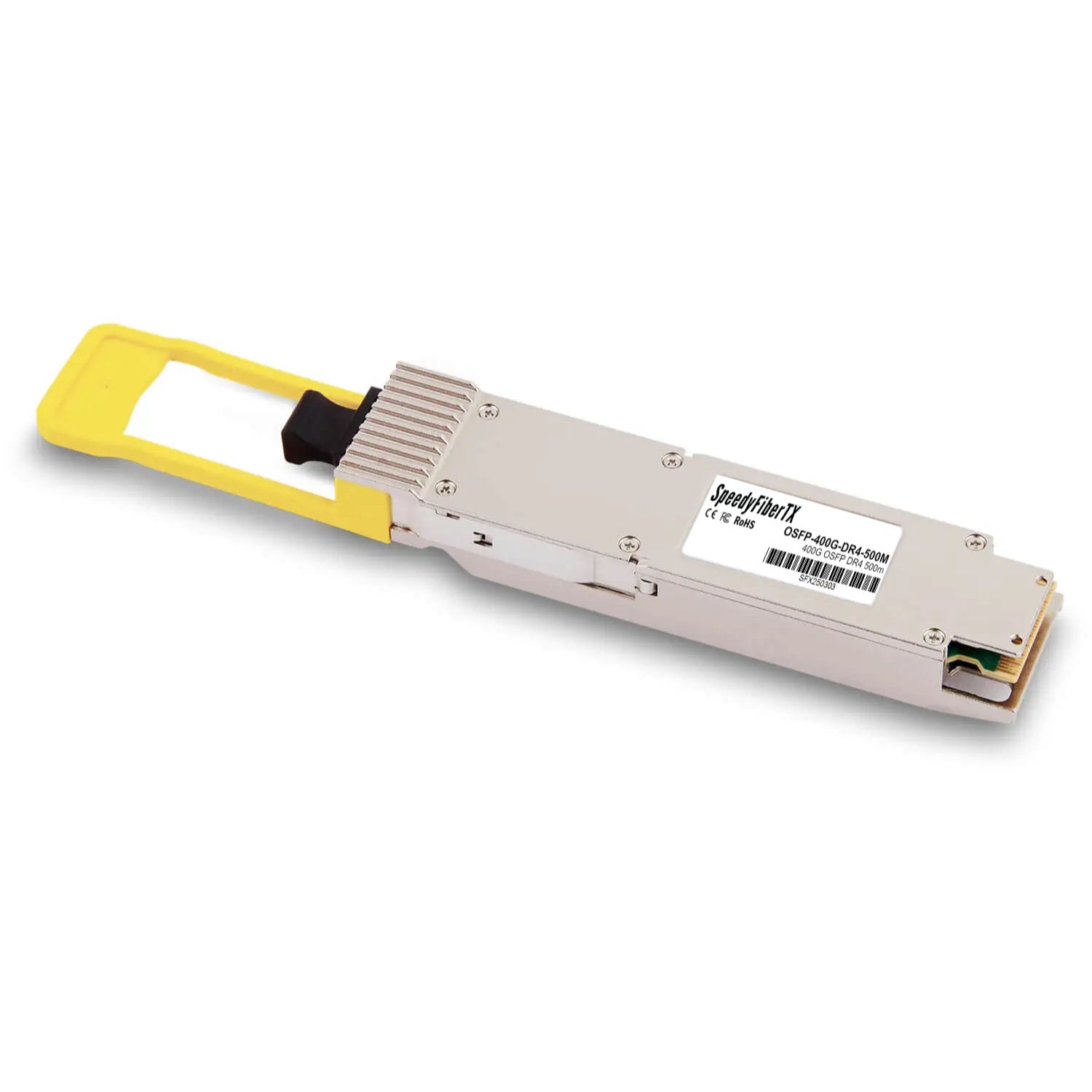

400GBASE-DR4 OSFP Finned Top PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR

$31,652.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Hot-pluggable OSFP Finned Top form factor
  • 4×106.25Gb/s PAM4 optical lanes (aggregate 400Gb/s)
  • 1310nm EML transmitter and PIN receiver
  • Up to 500m over single-mode fiber (SMF) with FEC
  • MPO-12/APC optical connector
  • IEEE802.3bs 400GBASE-DR4, OSFP MSA, CMIS4.0 compliant
  • Supports breakout to 4×100G-DR
  • Single 3.3V power supply, power consumption <12W (Max)
  • Digital diagnostic monitoring (DDM/DOM) via I²C
  • Operating temperature 0°C~70°C; RoHS compliant

The 400GBASE-DR4 OSFP Finned Top optical transceiver is a high-performance module designed for short to medium-reach 400GbE applications over single-mode fiber (SMF).

It supports four parallel lanes of 106.25Gb/s PAM4 for an aggregate bandwidth of 400Gb/s.

Operating at 1310nm, the module uses integrated EML transmitters and PIN photodiodes to achieve up to 500m transmission with FEC.

It features an MPO-12/APC connector, compliant with IEEE802.3bs 400GBASE-DR4, OSFP MSA, and CMIS4.0 standards.

The Finned Top housing enhances thermal performance for data center and AI cluster environments, supporting breakout to 4×100G-DR channels for flexible network deployment.
