SpeedyFiberTX  |  SKU: QSFP-200G-SR4-S-100M

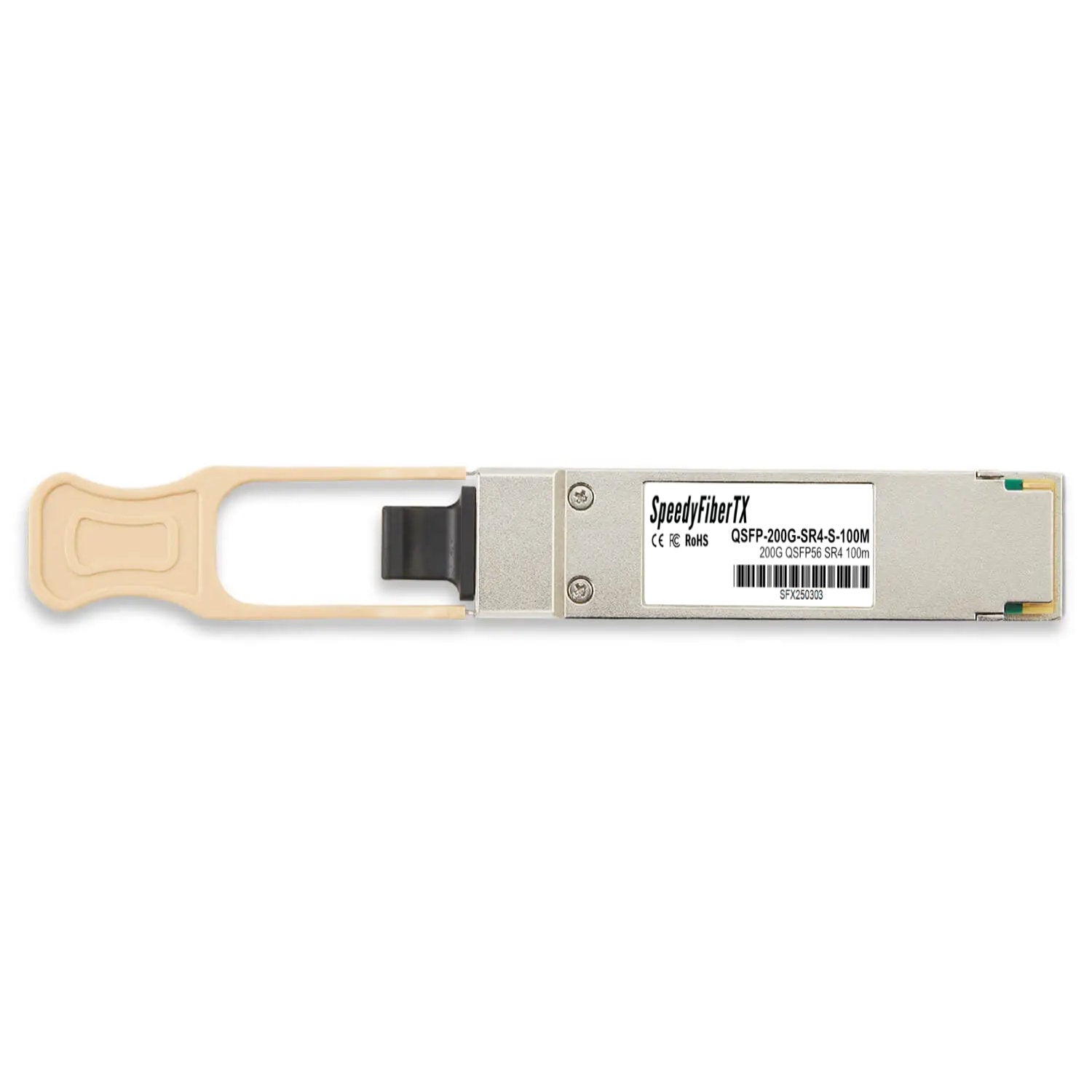

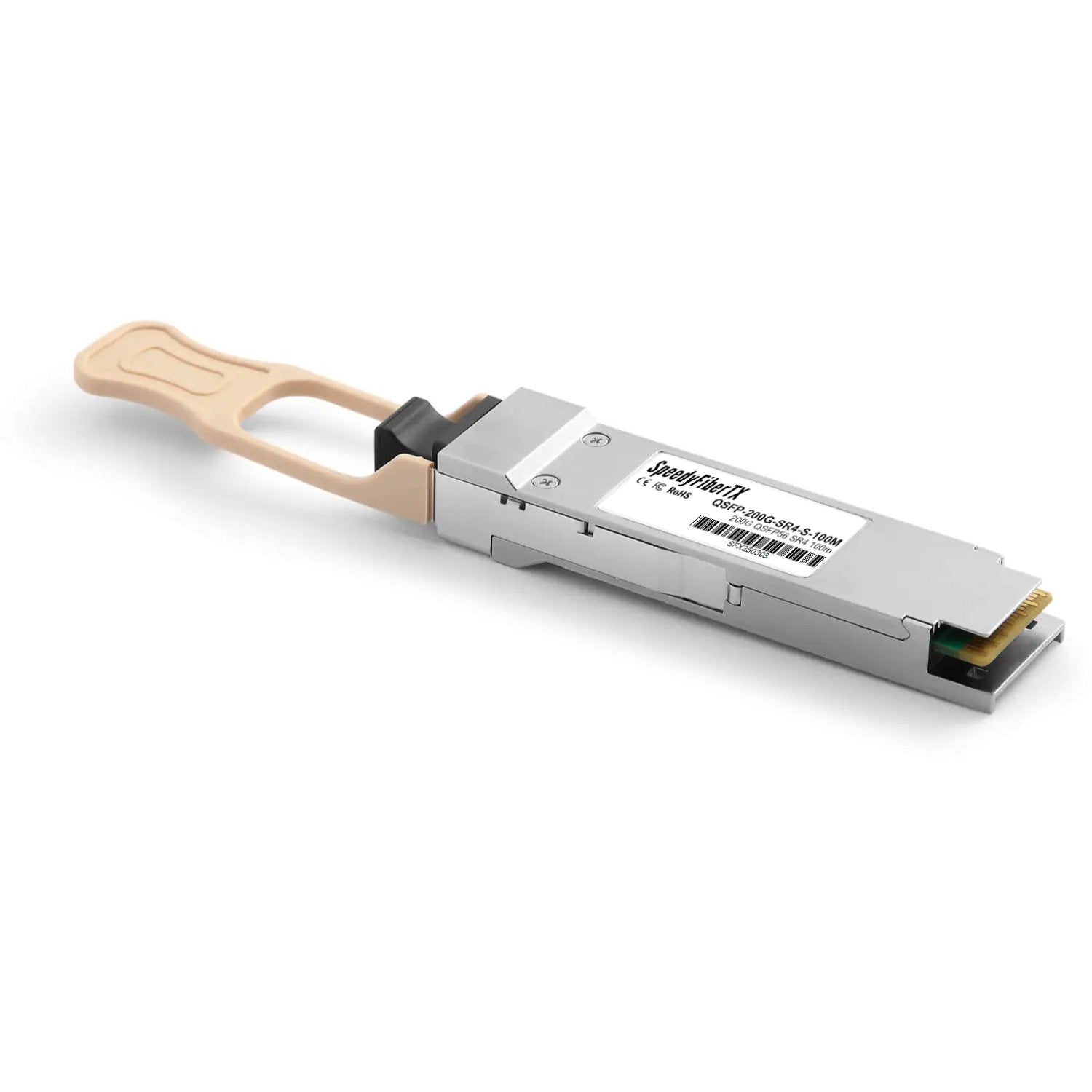

200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module

$6,884.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Hot-pluggable QSFP56 form factor
  • 4 × 53.125 Gb/s PAM4 lanes (aggregate 200 Gb/s)
  • 4-channel 850 nm VCSEL laser array and 4-channel PIN photodiode receiver array
  • Supports up to 70 m over OM3 and 100 m over OM4 multimode fiber (MMF)
  • Digital diagnostic monitoring (DDM/DOM) via I²C interface
  • Single 3.3 V power supply with low power consumption (< 5.5 W typical)
  • MPO-12 UPC optical interface
  • Operating case temperature: 0 °C to +70 °C (commercial range)
  • Compliant with IEEE 802.3bs and CMIS 4.0
  • RoHS compliant

The 200GBASE-SR4 QSFP56 optical transceiver is a 4-channel, hot-pluggable module designed for short-reach 200GbE applications over multimode fiber.

Each lane operates at 53.125Gb/s PAM4, providing an aggregate data rate of 200Gb/s.

This module uses an 850nm VCSEL laser array and PIN photodiode receiver array to ensure stable optical performance and low bit-error rate (BER).

It supports transmission distances of up to 70m on OM3 and 100m on OM4 multimode fiber through an MPO-12 UPC connector.

Compliant with IEEE802.3bs 200GBASE-SR4 and CMIS4.0, the transceiver features digital diagnostic monitoring (DDM/DOM) via the I²C interface for real-time performance tracking and interoperability with major switch platforms.

It is an ideal solution for high-density data center interconnects, switch-to-server links, and high-performance computing (HPC) networks.
