SpeedyFiberTX  |  SKU: MTPBOMG24M4NRCFLCUN6TBW

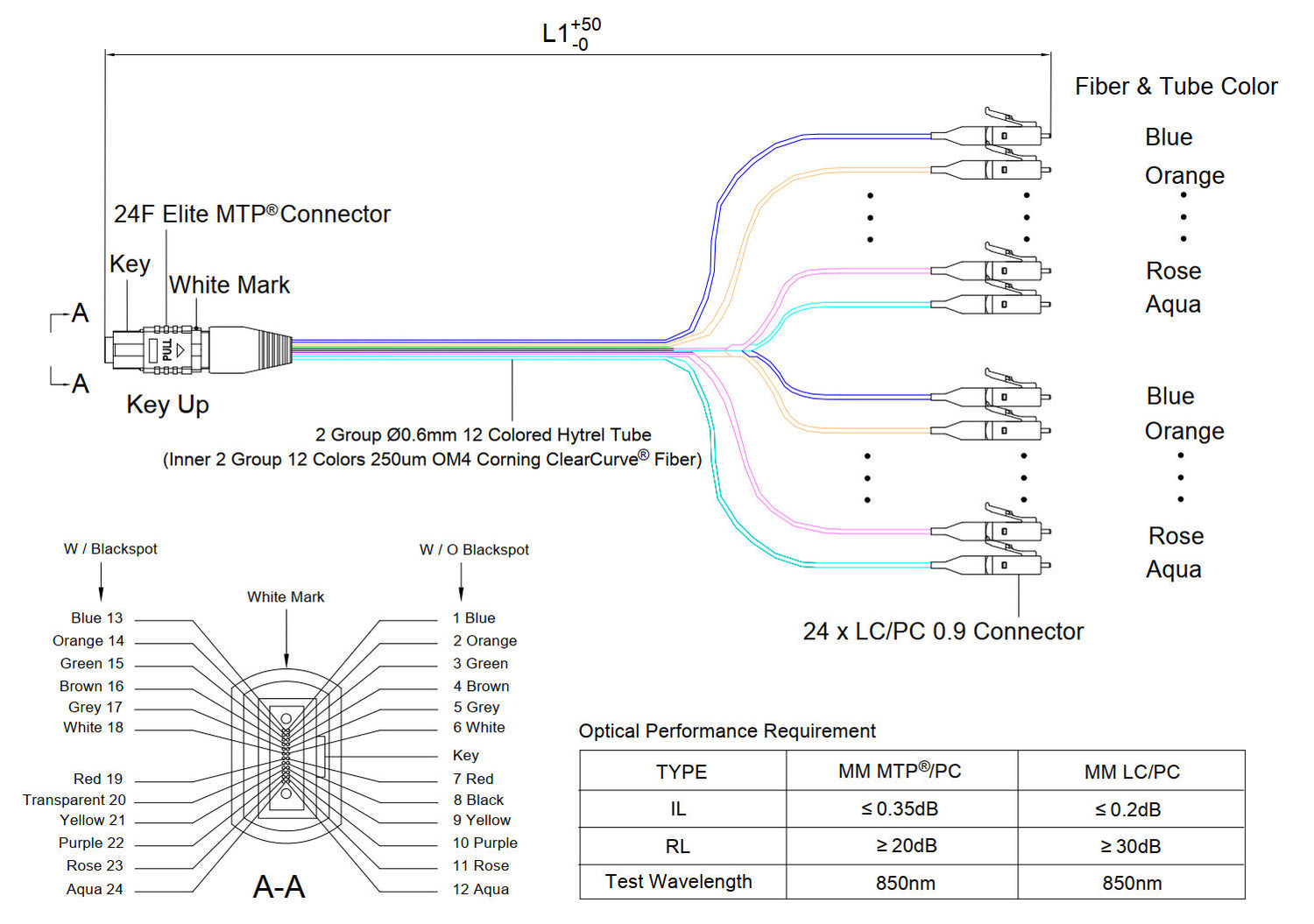

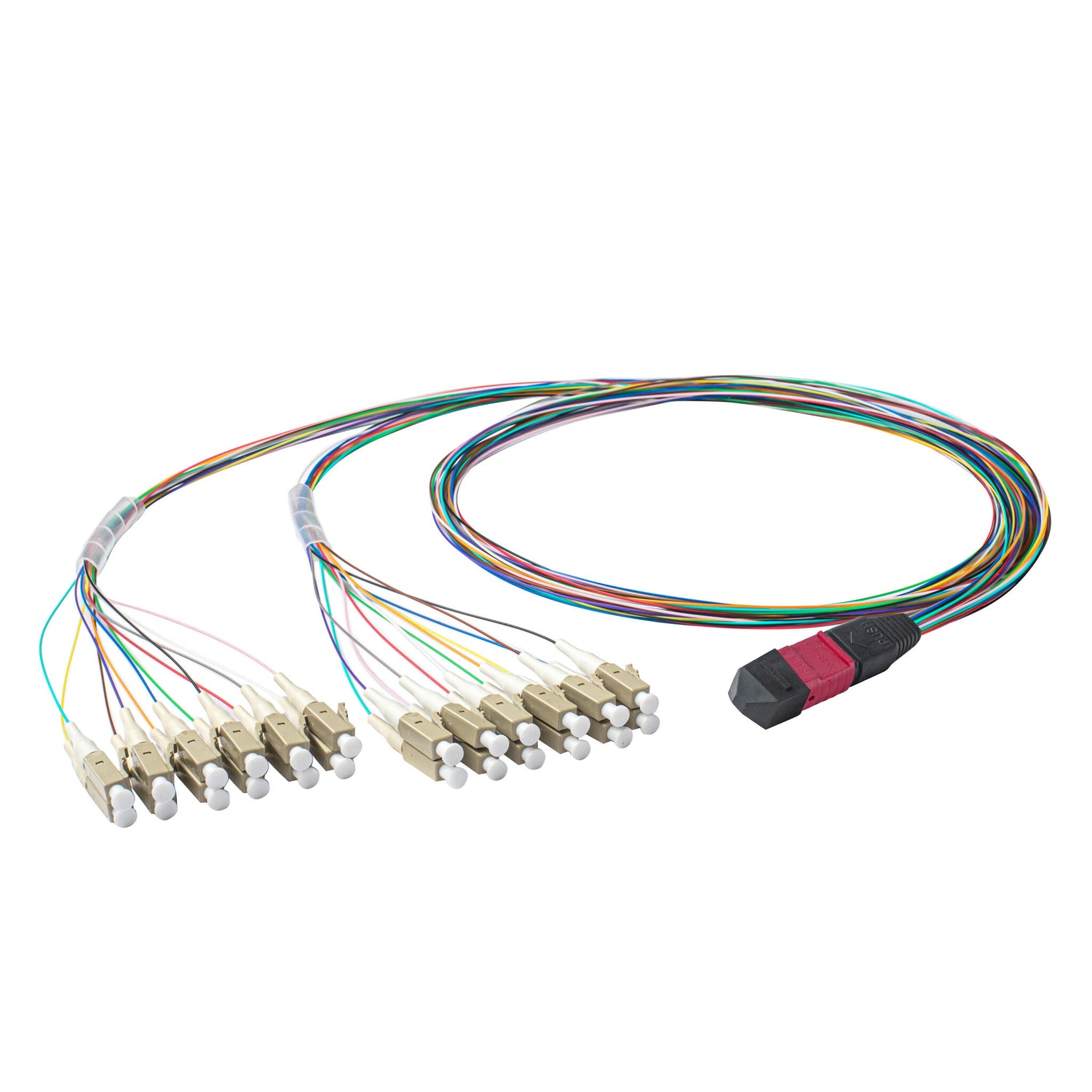

Elite Non-Pinned MTP® to 24xLC Breakout Cable | Corning® ClearCurve® OM4 Multimode Optical Fiber | Magenta MTP® Connector, 600μm 24-Colored Hytrel® Fiber Tube, Beige LC Connectors

  • MTP® Standard Compliant – Durable, Plug-and-Play Low Loss Non-Pinned MTP® & LC Connectors.
  • High-Speed & High-Density – Secure, reliable connections with low insertion loss & high return loss.
  • Optimized for Data Centers – Space-saving design reduces cable management complexity.
  • Premium Fiber & Cable – Corning OM4 ClearCurve® fiber & 600μm 24-colored Hytrel tube for superior performance.
  • Guaranteed Performance – 100% insertion loss & return loss inspection.
  • Ideal for Cabinet Patching – Commonly used for internal cabinet connections.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 This item will be shipped within 2–3 days after purchase.
  • ✈️ Free Shipping on Orders Over $499 USD $99 USD until Sep 30.
Request a Quote

Elite Non-Pinned MTP® to 24xLC Breakout Cable | Corning® ClearCurve® OM4 Multimode Optical Fiber | Magenta MTP® Connector, 600μm 24-Colored Hytrel® Fiber Tube, Beige LC Connectors

The MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

This Elite MTP® to 24xLC breakout cable is ideal for high-density multimode applications in data centers. Built with Corning® ClearCurve® OM4 fiber and a 600μm 24-colored Hytrel® tube, it supports 100GBASE-SR10, parallel optics, and structured cabling deployments. The pre-terminated design ensures fast deployment and consistent low-loss performance.

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
