SpeedyFiberTX  |  SKU: MPOBOGR08SMY3FLCU052NP

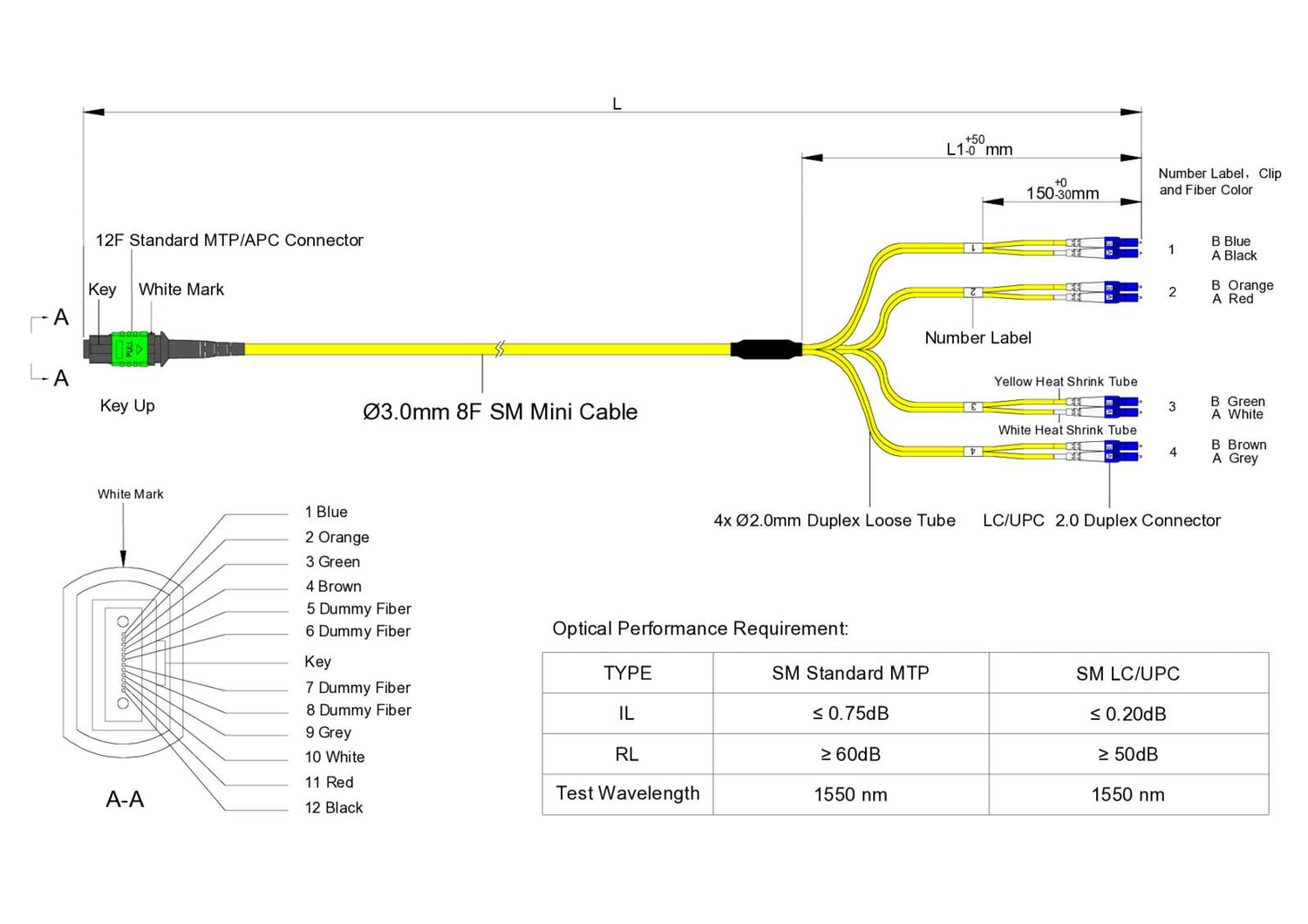

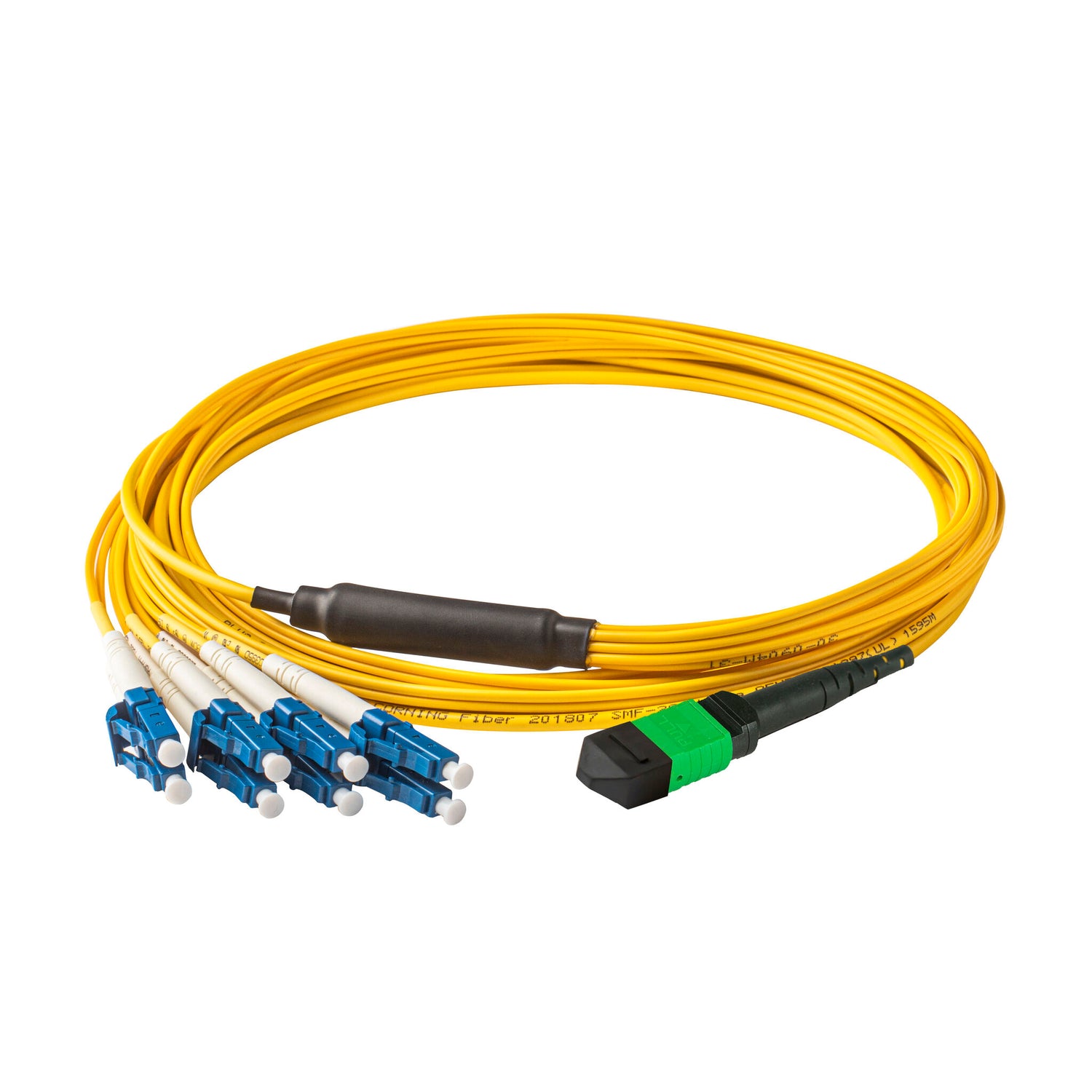

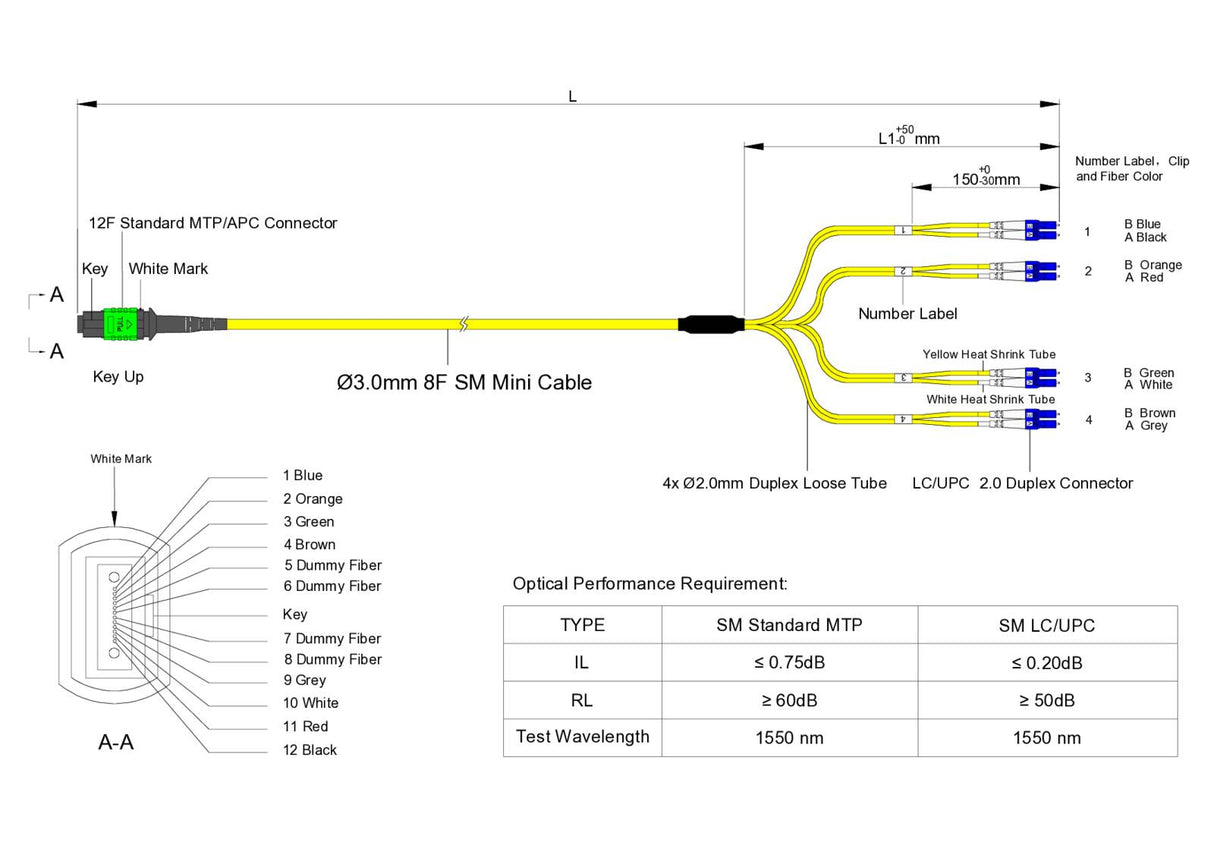

Low Loss Non-Pinned MPO to 8xLC Breakout Cable | Corning® SMF-28® Ultra Singlemode Optical Fiber | OS1/OS2 Compatible | Green MPO Connector, Yellow Cable Jacket | OFNP Jacket

  • MPO-Based, MTP® Compatible – Durable, Plug-and-Play Low Loss Non-Pinned MPO & LC Connectors.
  • High-Speed & High-Density – Secure, reliable connections with low insertion loss & high return loss.
  • Optimized for Data Centers – Space-saving design reduces cable management complexity.
  • Premium Fiber & Cable – Corning SMF-28® Ultra optical fiber with UL-certified fire-retardant plenum-rated OFNP jacket for installation in air-handling spaces or plenum areas.
  • Guaranteed Performance – 100% insertion loss & return loss inspection.
  • Extended Reach – Ideal for long-distance cabinet-to-cabinet applications.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 This item will be shipped within 2–3 days after purchase.
  • ✈️ Free Shipping on Orders Over $499 USD $99 USD until Sep 30.
Request a Quote

Low Loss Non-Pinned MPO to 8xLC Breakout Cable | Corning® SMF-28® Ultra Singlemode Optical Fiber | OS1/OS2 Compatible | Green MPO Connector, Yellow Cable Jacket | OFNP Jacket

The MPO harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

This low loss MPO to 8xLC breakout cable is engineered for high-density fiber patching in data centers using singlemode fiber systems. Built with Corning® SMF-28® Ultra fiber, it supports 40GBASE-PLR4 to 10GBASE-LR and 400G DR4/XDR4 to 100G DR/FR breakout connections. The pre-terminated design ensures fast deployment and consistent low-loss performance.

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
