SpeedyFiberTX  |  SKU: MPOGR08M4M3FFBAZH-020CM

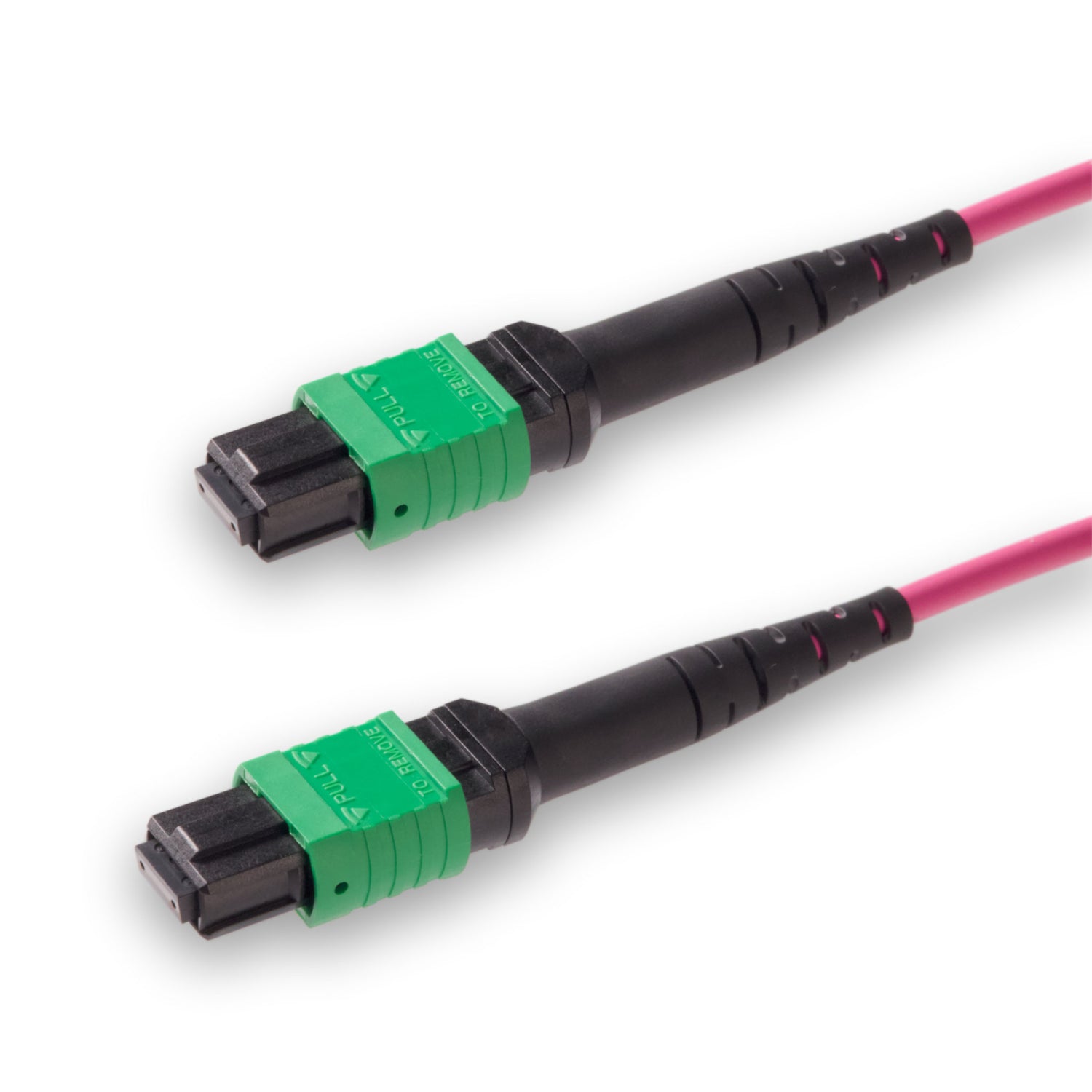

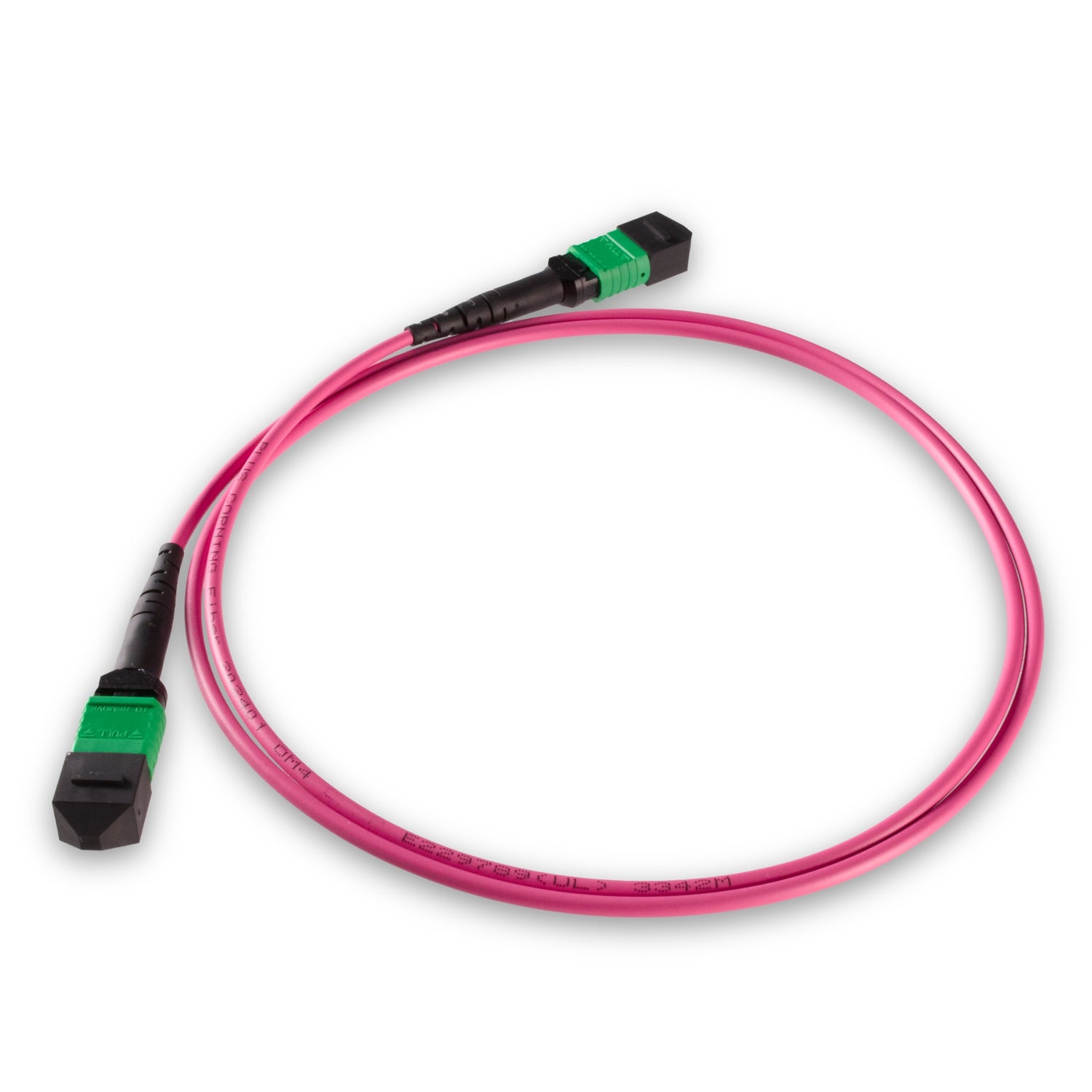

8-Fiber Low Loss Non-Pinned MPO/APC to Non-Pinned MPO/APC Jumper | Corning® ClearCurve® OM4 Multimode Optical Fiber | Type B, Green MPO-12 Connectors, Magenta Cable Jacket | LSZH Jacket

$1,109.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 2–3 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • US Conec MPO Connector with ≤0.35dB Low Insertion Loss
  • Corning ClearCurve® Multimode Fiber with 7.5mm Min. Bend Radius
  • Typically Used for Patching Within a Cabinet
  • Supports InfiniBand and Ethernet Protocols for High-Speed Fiber Links

8-Fiber Low Loss Non-Pinned MPO/APC to Non-Pinned MPO/APC Jumper | Corning® ClearCurve® OM4 Multimode Optical Fiber | Type B, Green MPO-12 Connectors, Magenta Cable Jacket | LSZH Jacket

This MPO to MPO jumper enables seamless migration to higher data rates when used with trunk cables, making it ideal for high-density fiber patching within cabinets. Featuring non-pinned APC connectors with Type B polarity and built with Corning® ClearCurve® OM4 fiber, it offers low insertion loss, high return loss, and reliable performance. Pre-terminated for easy plug-and-play deployment, this cost-effective solution supports 40G/100G multimode transceivers in data center, FTTH, and EPON environments.

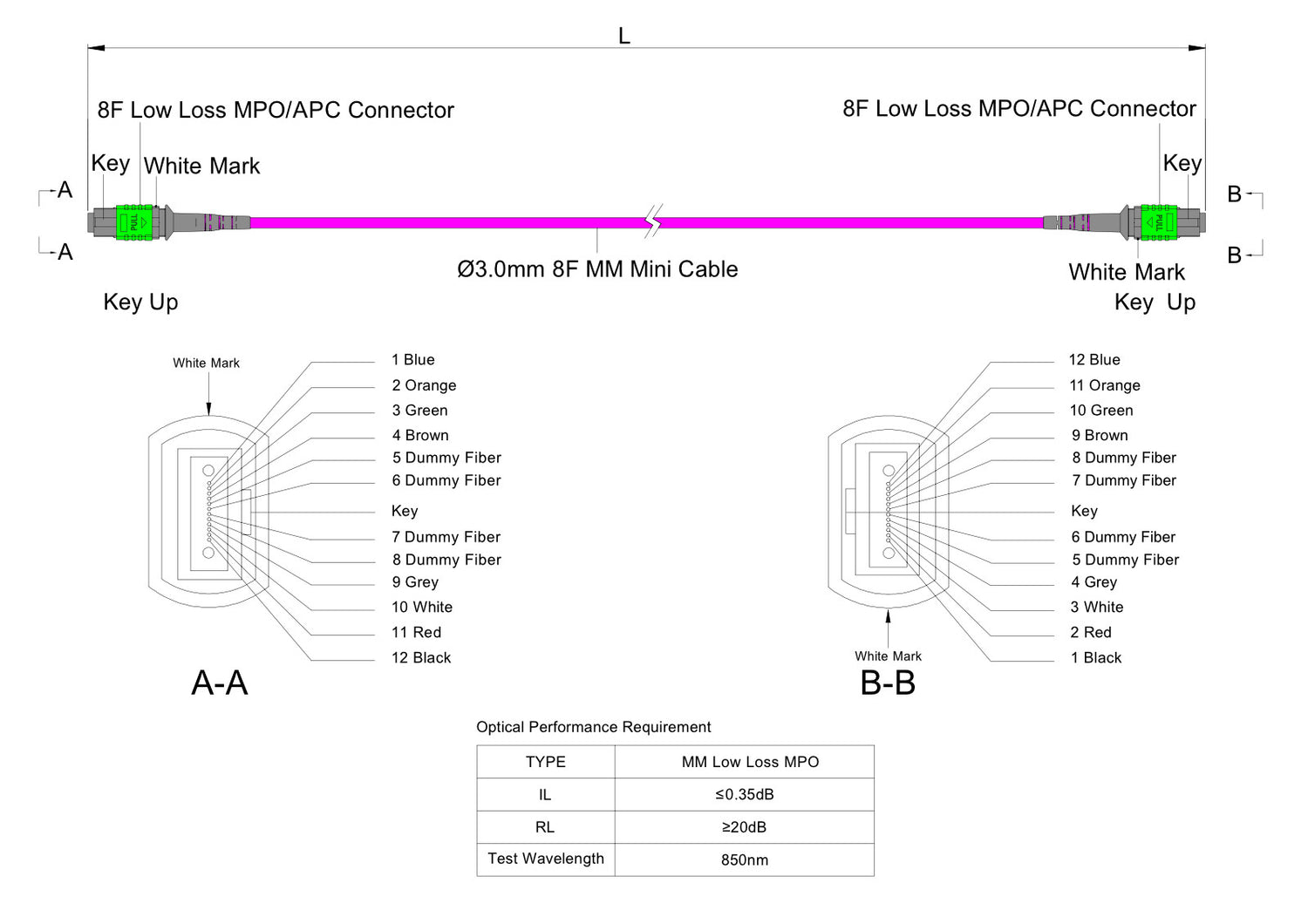

Each MPO-12 connector is pre-loaded with 8 fibers in positions 1-4 and 9-12, following the standard 8-fiber configuration for parallel optical transmission.
