UltraY HD 19”1U Enclosure with 4 x Module Cassette or 4 x Adapter Panel, Sliding Type
UltraY HD 19”1U Enclosure with 4 x Module Cassette or 4 x Adapter Panel, Sliding Type has a longer lead time. Please feel free to contact us via chat before placing your order.
📦 For bulk orders, please contact us for a customized quote
UltraY HD 19”1U Enclosure with 4 x Module Cassette or 4 x Adapter P...

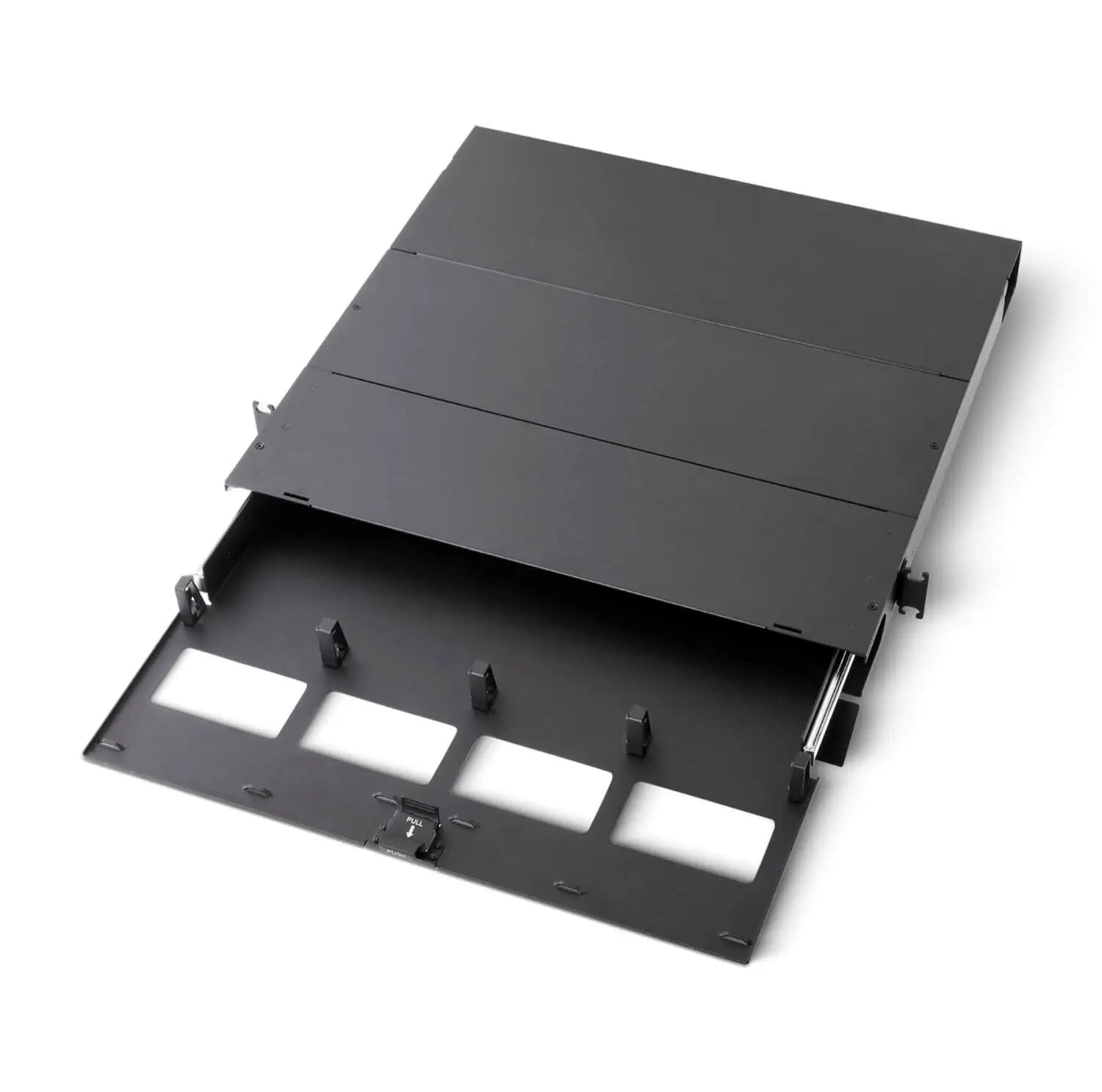

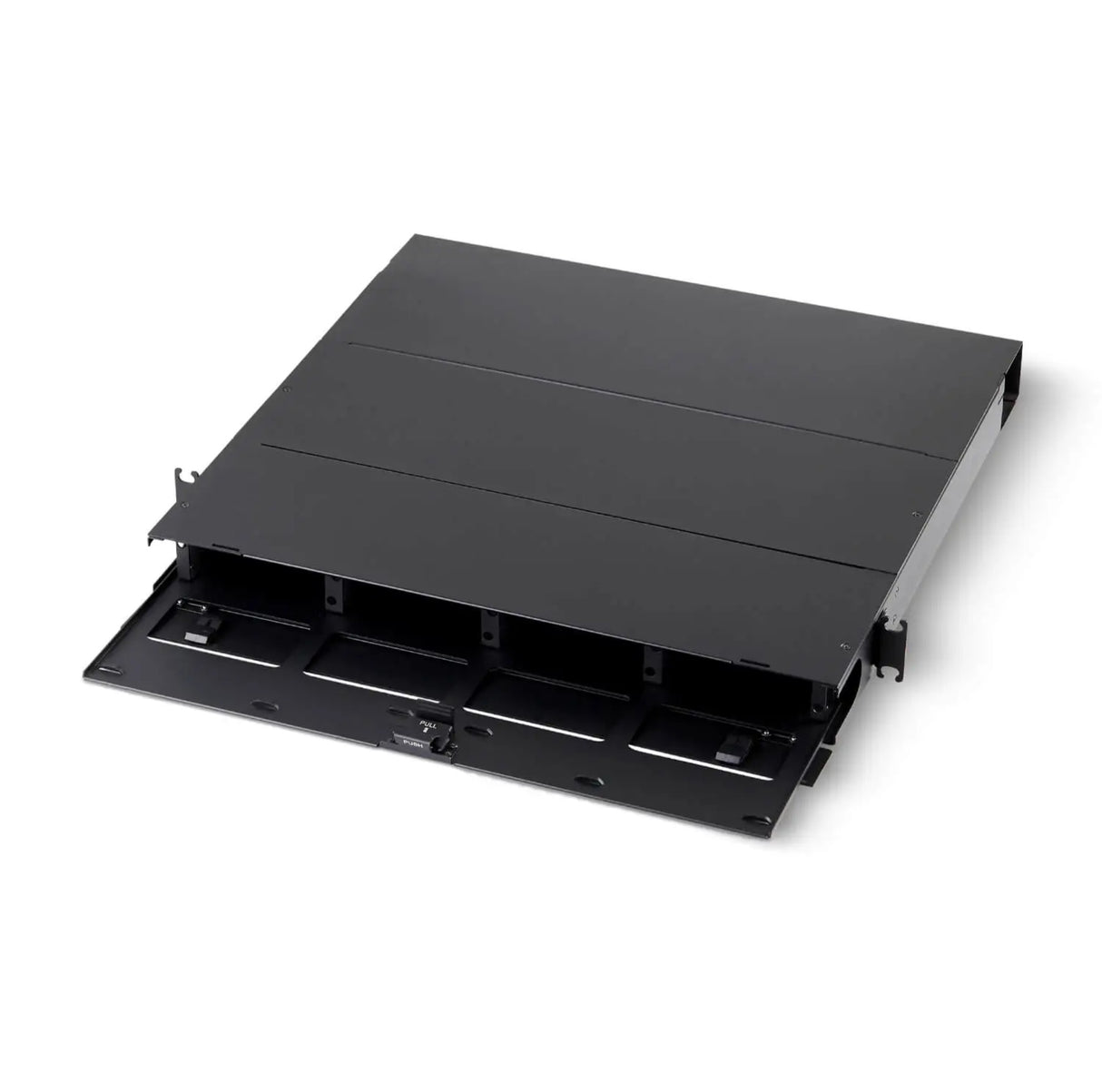

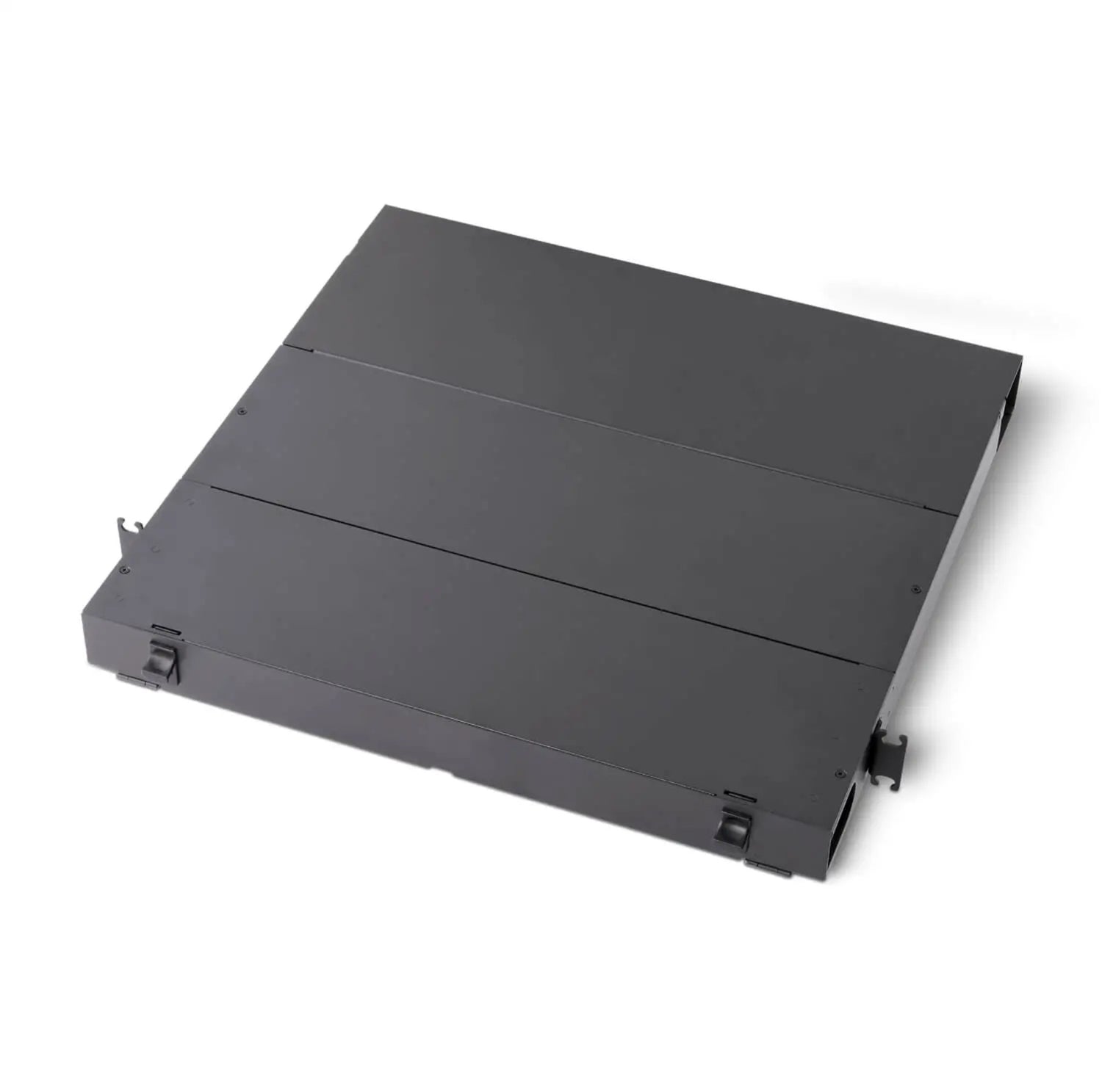

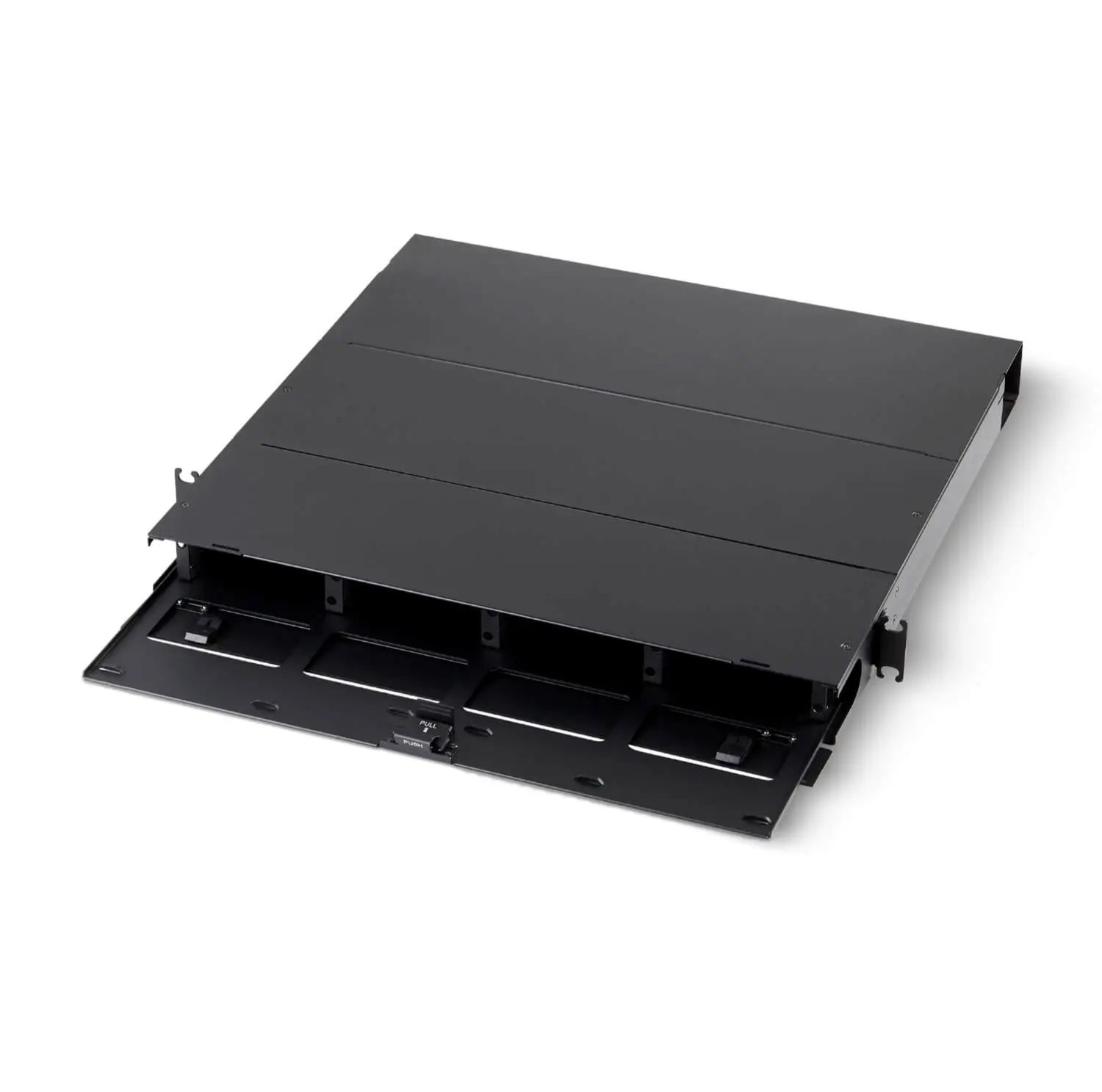

SpeedyFiberTX UltraY 1U Rack Mount Fiber Enclosure (Sliding Enclosed Type) is engineered to accommodate up to four MPO/MTP® module cassettes or fiber adapter panels from the Ultra family, providing a versatile solution for various fiber optic patching and termination requirements. Its sliding tray enables convenient front access to fiber connections, making it well-suited for backbone cabling, distribution, and cross-connect applications.

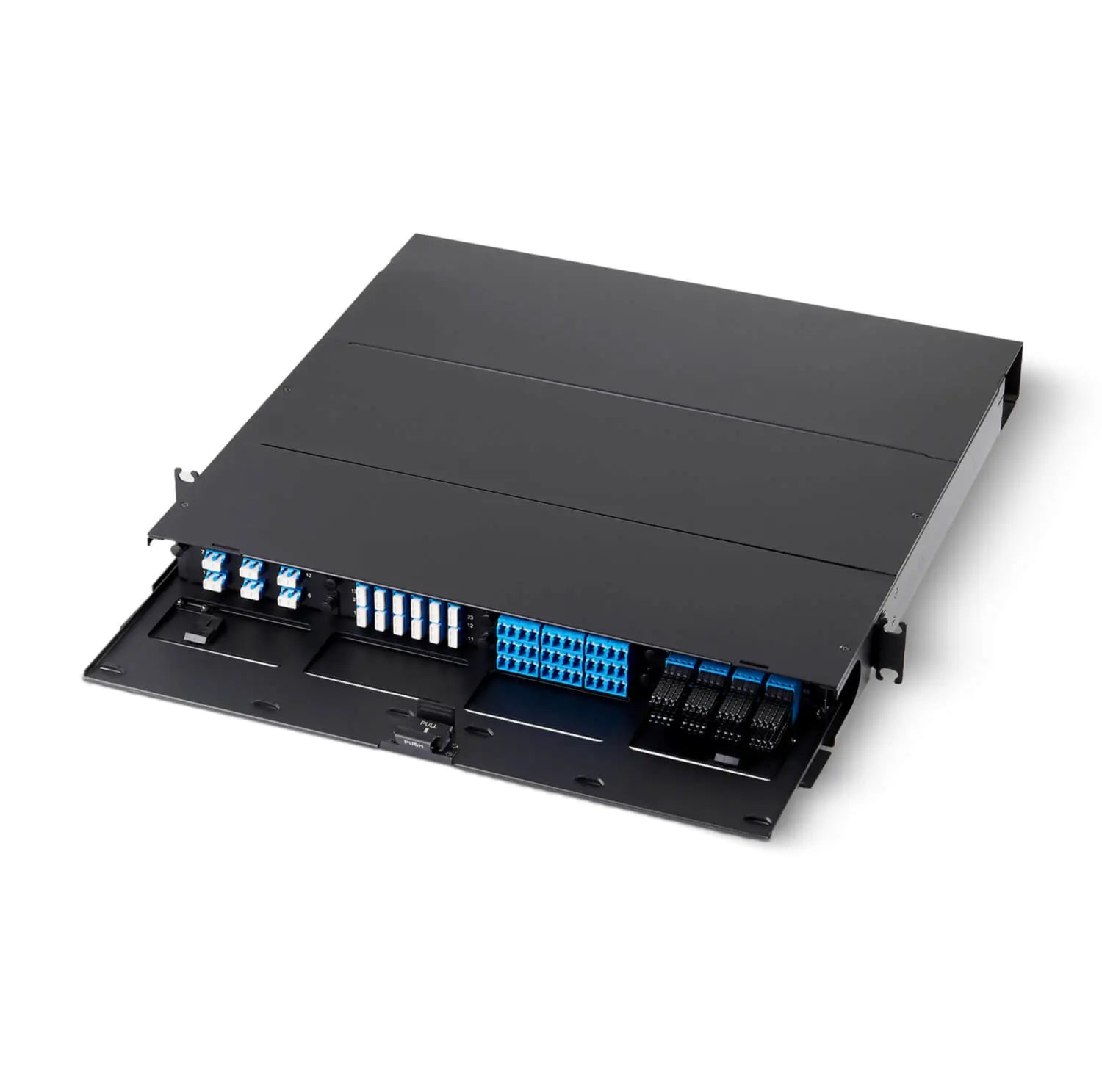

When paired with MDC-MPO/MTP® or SN-MPO/MTP® module cassettes or adapter panels from the SpeedyFiberTX Ultra family, the enclosure can support up to 256 fibers within a compact 1U space. A variety of front adapter port options are available.
The UltraY comes in two versions: version A for metal adapter panels and cassettes, and version B for plastic adapter panels and cassettes.
| Rack Unit | 1U |
| Loading Capacity | Four Cassettes/Adapter Panels |
| Installation | Rack-mount |
| Material | Cold-rolled Sheet |
| Standard | RoHS/REACH |
| Dimension (mm) | 444 × 44 × 435 |
| Weight (Kg) | 5.6 |
| Family/Series | Ultra/Y |
