12-Port LGX Compatible Fiber Patch Panel with Numbered Ports, Preloaded with Magenta LC Adapters/Couplers
12-Port LGX Compatible Fiber Patch Panel with Numbered Ports, Preloaded with Magenta LC Adapters/Couplers has a longer lead time. Please feel free to contact us via chat before placing your order.
📦 For bulk orders, please contact us for a customized quote
Couldn't load pickup availability
12-Port LGX Compatible Fiber Patch Panel with Numbered Ports, Prelo...

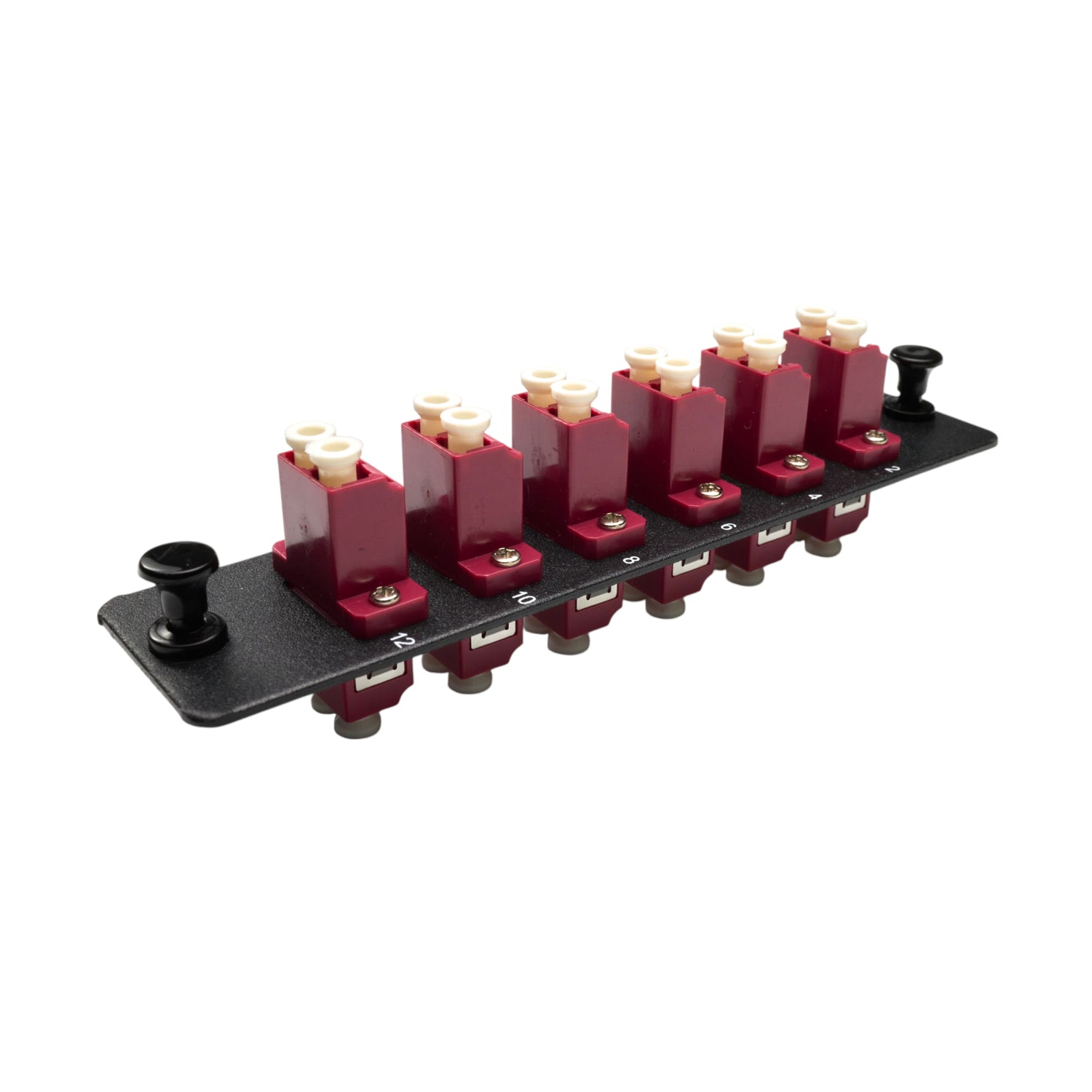

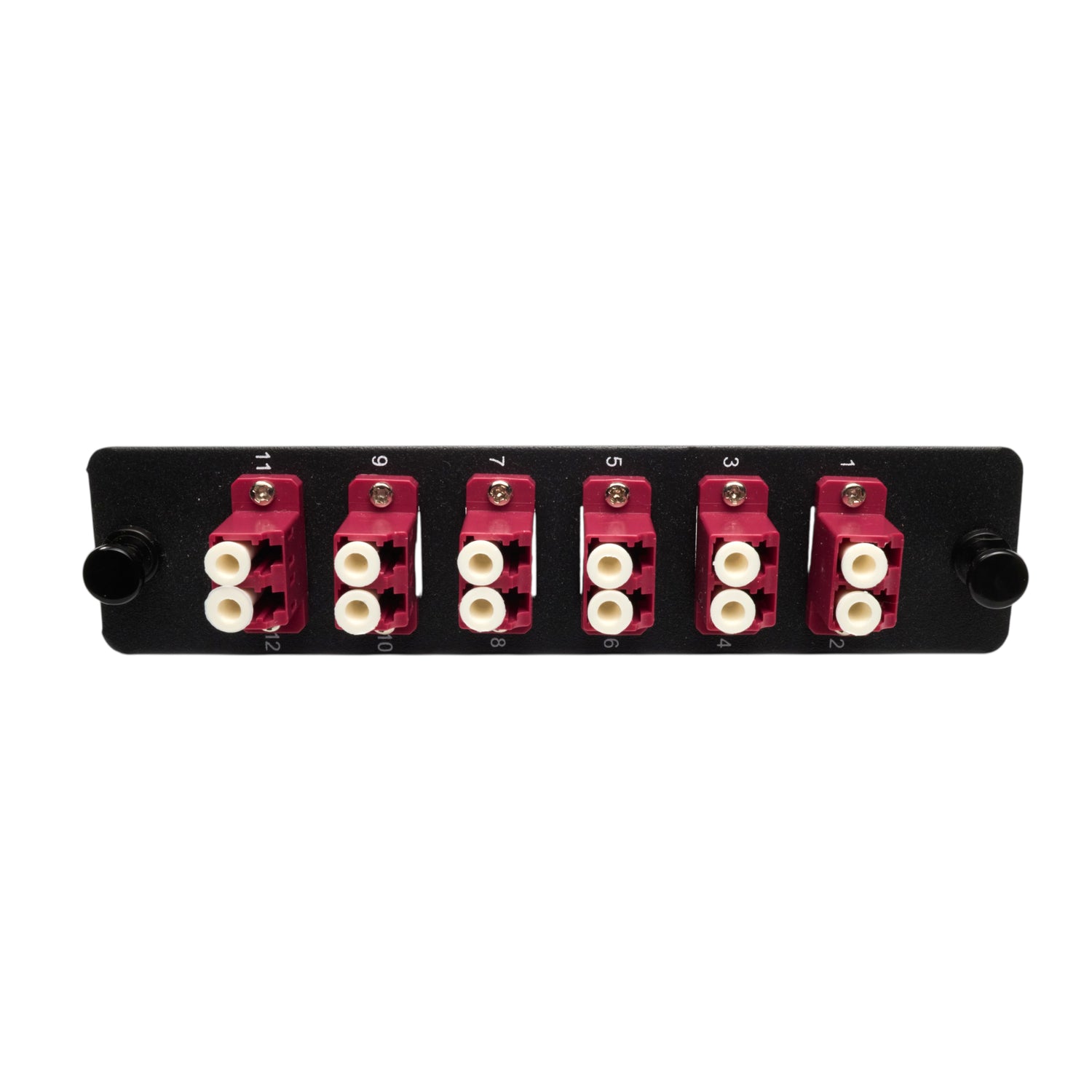

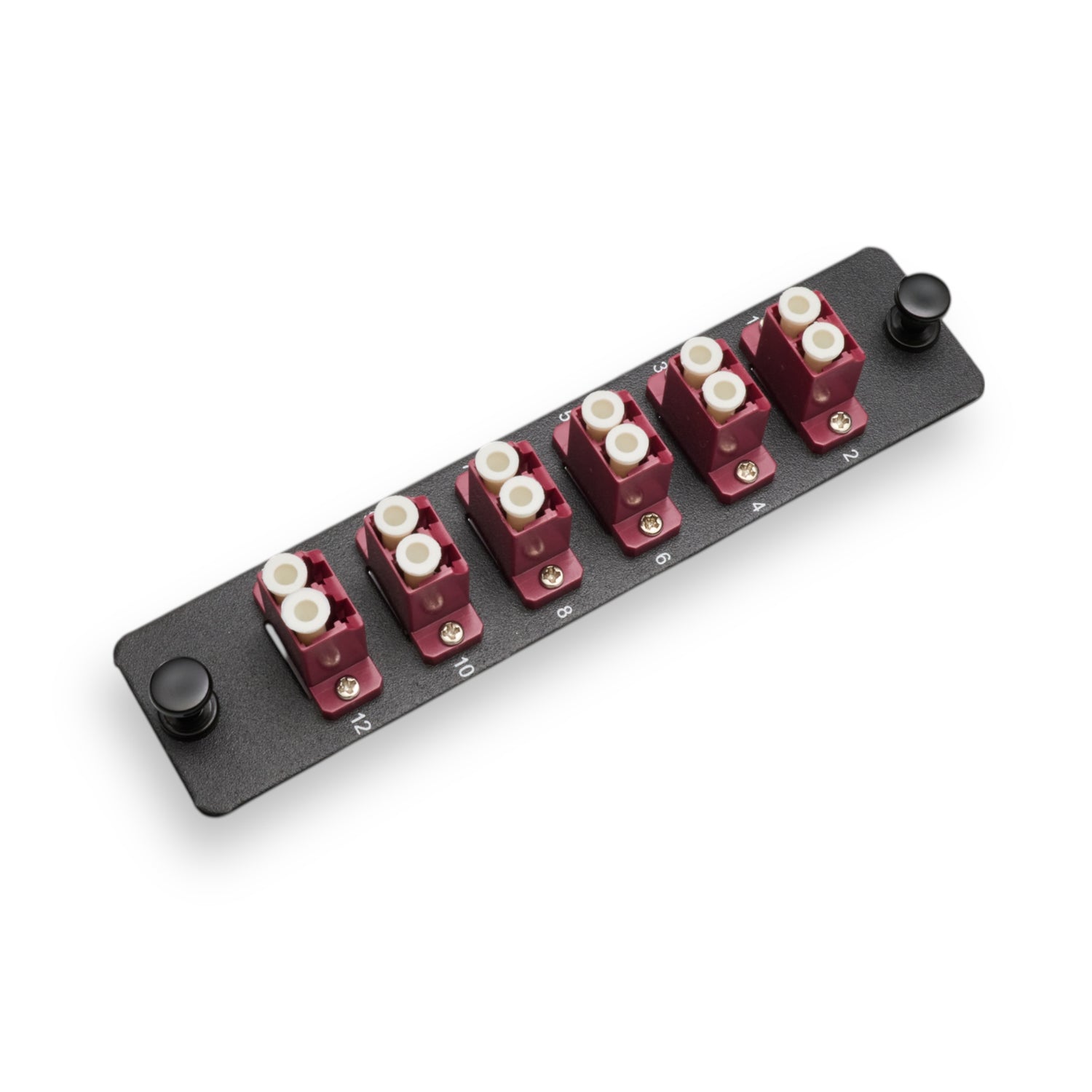

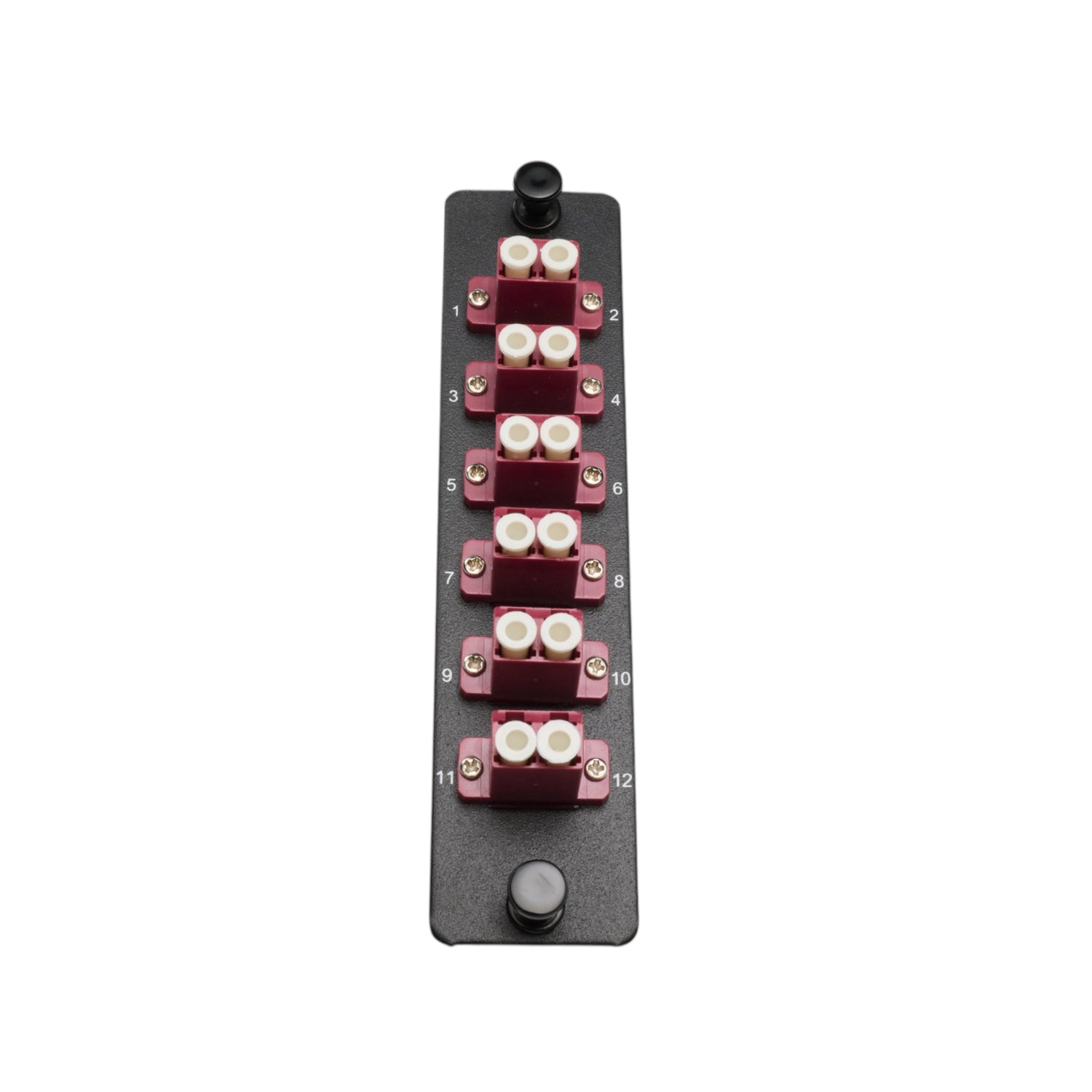

This LGX-compatible fiber patch panel is pre-loaded with 6 LC duplex magenta adapters, providing 12-fiber OM4 multimode connectivity. Ideal for high-bandwidth 40G/100G multimode applications in data centers and aggregation layers.
Constructed with black electrostatic powder-coated steel, this panel offers excellent durability. Standard LGX form factor with printed port numbers ensures easy identification and installation.
| Module Type | LGX-compatible adapter panel |
|---|---|
| Fiber Capacity | 12 fibers |
| Adapter Color | Magenta |
| Fiber Type | Multimode OM4 |
| Connector Interface | LC/UPC |
| Panel Material | Black electrostatic powder-coated steel |
| Mounting | Snap-in module |
| Port Labeling | Printed numbers (1–12) |
