SpeedyFiberTX  |  SKU: AOC-A-QDD-400G

400G QSFP-DD AOC, Armored

Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Request a Quote
Highlight
  • Hot-pluggable QSFP-DD form factor
  • Transmission data rate up to 53Gbps per channel
  • 8x53Gbps PAM4 transmitter and PAM4 receiver
  • 8 channels 850nm VCSEL array
  • 8 channels PIN photo detector array

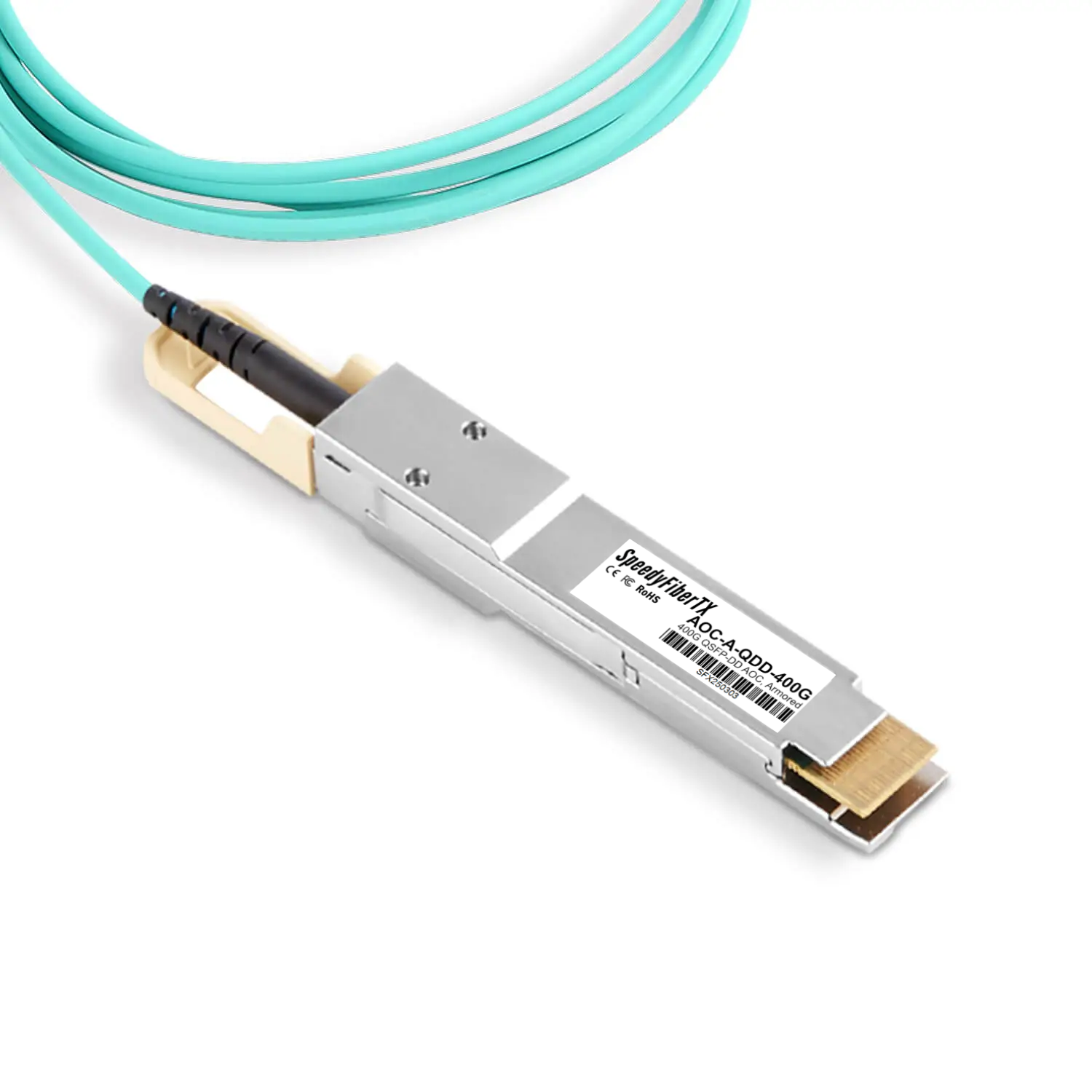

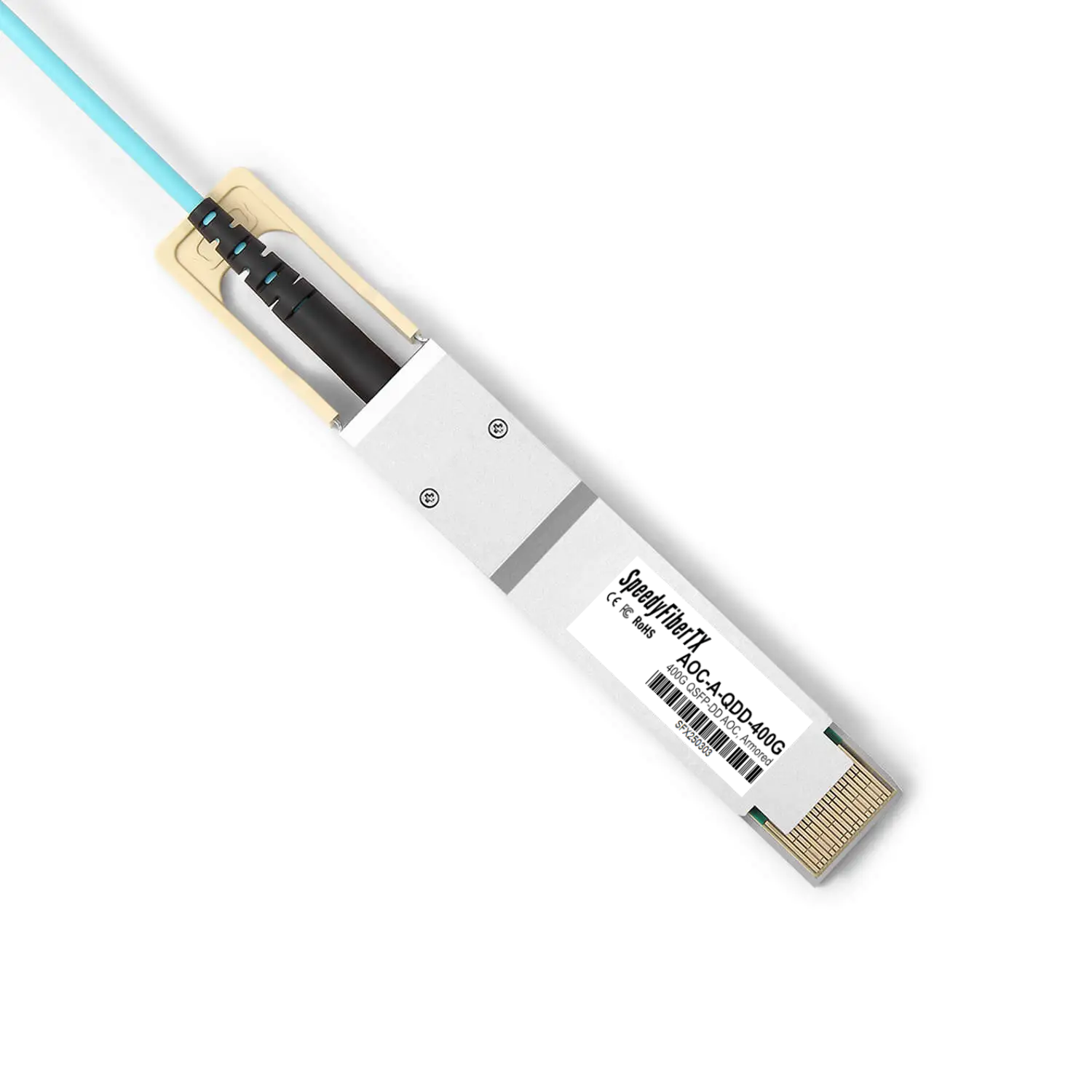

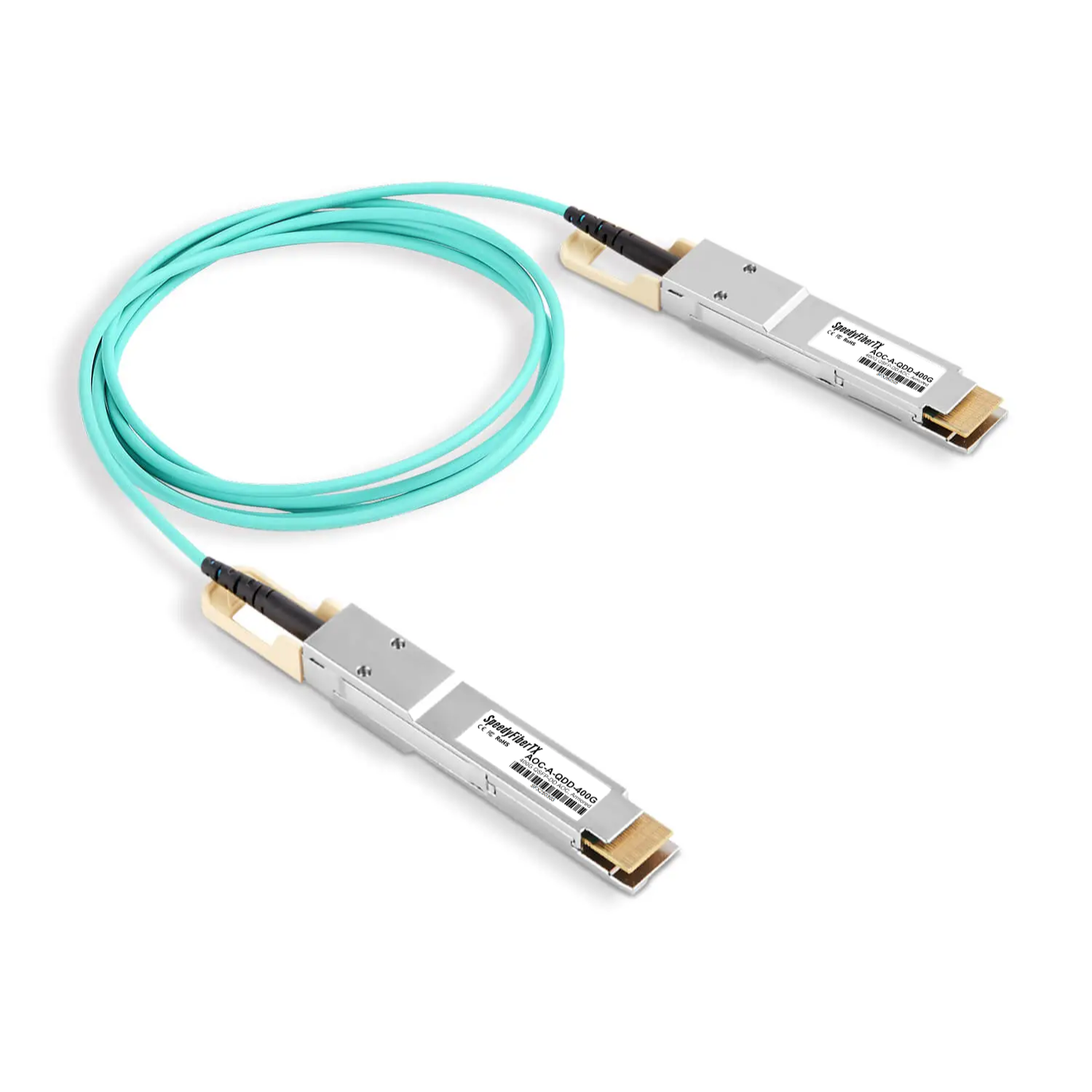

SpeedyFiberTX 400G QSFP-DD Active Optical Cable, Armored

This is an 8-channel pluggable parallel fiber-optic QSFP-DD Active Optical Cable (AOC) designed for high-performance short-reach data communication and interconnect applications.

It provides an aggregate data rate of 400Gbps using eight lanes in each direction, each operating at 53.125Gbps PAM4.

With Forward Error Correction (FEC), the module supports transmission distances up to 70m over OM3 and 100m over OM4 multimode fiber.

It adopts 850nm VCSEL transmitters and PIN photodiode receivers, and features a 76-pin edge connector compliant with the QSFP-DD MSA for reliable electrical and optical performance.
