SpeedyFiberTX  |  SKU: OSFP-800G-SR8-050M

800GBASE 2 x SR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Ethernet Optical Transceiver Module

$23,012.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • ✈️ Free Shipping on Orders Over $499 USD $99 USD until Sep 30.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Built-in Marvell 6nm DSP Chip, Max. Power Consumption 16W
  • Parameter Tests for Superior Performance, Quality, and Reliability
  • High-speed Connectivity Compliant to IEEE 802.3ck
  • Hot Pluggable OSFP MSA Compliant
  • Support 2x 400G or 4x 200G Breakout for Higher Port Density
  • 8x 106.25G PAM4 Retimed 8x 100GAUI-8 C2M Electrical Interface
  • For Higher Bandwidth in Hyperscale Data Centers and Cloud Infrastructure
  • Class 1M Laser Safety and RoHS Compliant
  • Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

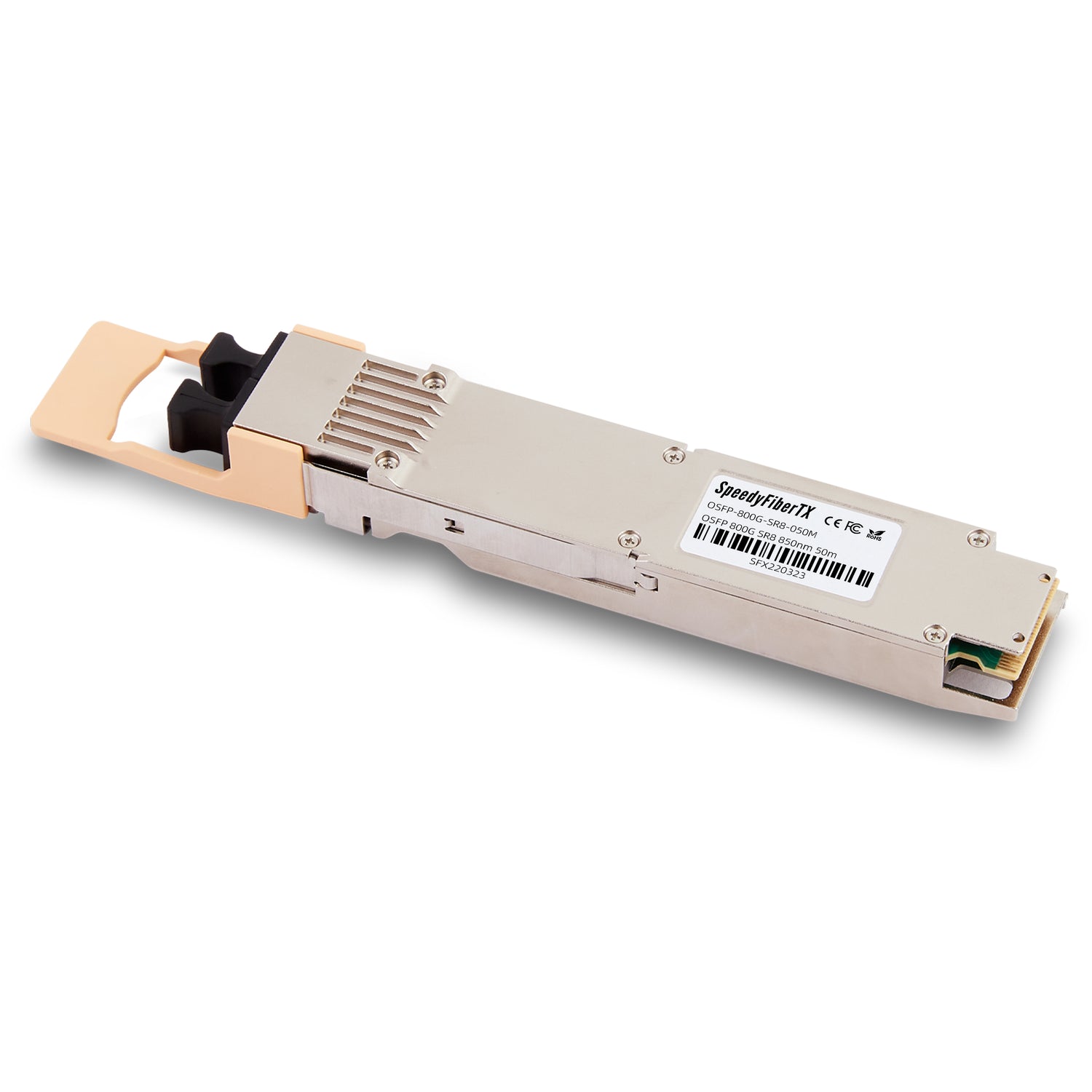

800GBASE-SR8 OSFP PAM4 Optical Transceiver Module (MMF, 850nm, 50m, Dual MTP/MPO-12 APC, DOM, Finned Top)

The 800GBASE-SR8 OSFP optical transceiver module is designed for 800GBASE Ethernet throughput up to 50m link lengths over OM4 multimode fiber (MMF) using a wavelength of 850nm via dual MTP/MPO-12 APC connectors. This transceiver is compliant with IEEE P802.3ck, OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

The twin-port OSFP finned-top transceiver is used in Ethernet air-cooled switches. Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.
