SpeedyFiberTX  |  SKU: OSFP-800G-DR8-500M

800GBASE 2 x DR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Ethernet Optical Transceiver Module

$34,532.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • ✈️ Free Shipping on Orders Over $499 USD $99 USD until Sep 30.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight
  • Connect New 800G Sites to Legacy 400G Sites via 2x400G Breakout
  • Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 16.5W
  • Support 2x 400G, 4x 200G, or 8x 100G Breakout for Higher Port Density
  • 8x 106.25G PAM4 Retimed 800GAUI-8 Electrical Interface
  • High-speed Connectivity Compliant to IEEE 802.3ck and IEEE 802.3cu-2021
  • Parameter Tests for Superior Performance, Quality, and Reliability
  • Hot Pluggable, OSFP MSA Compliant
  • Self-developed 53G EML Laser Chip to Ensure Stable Production and Supply

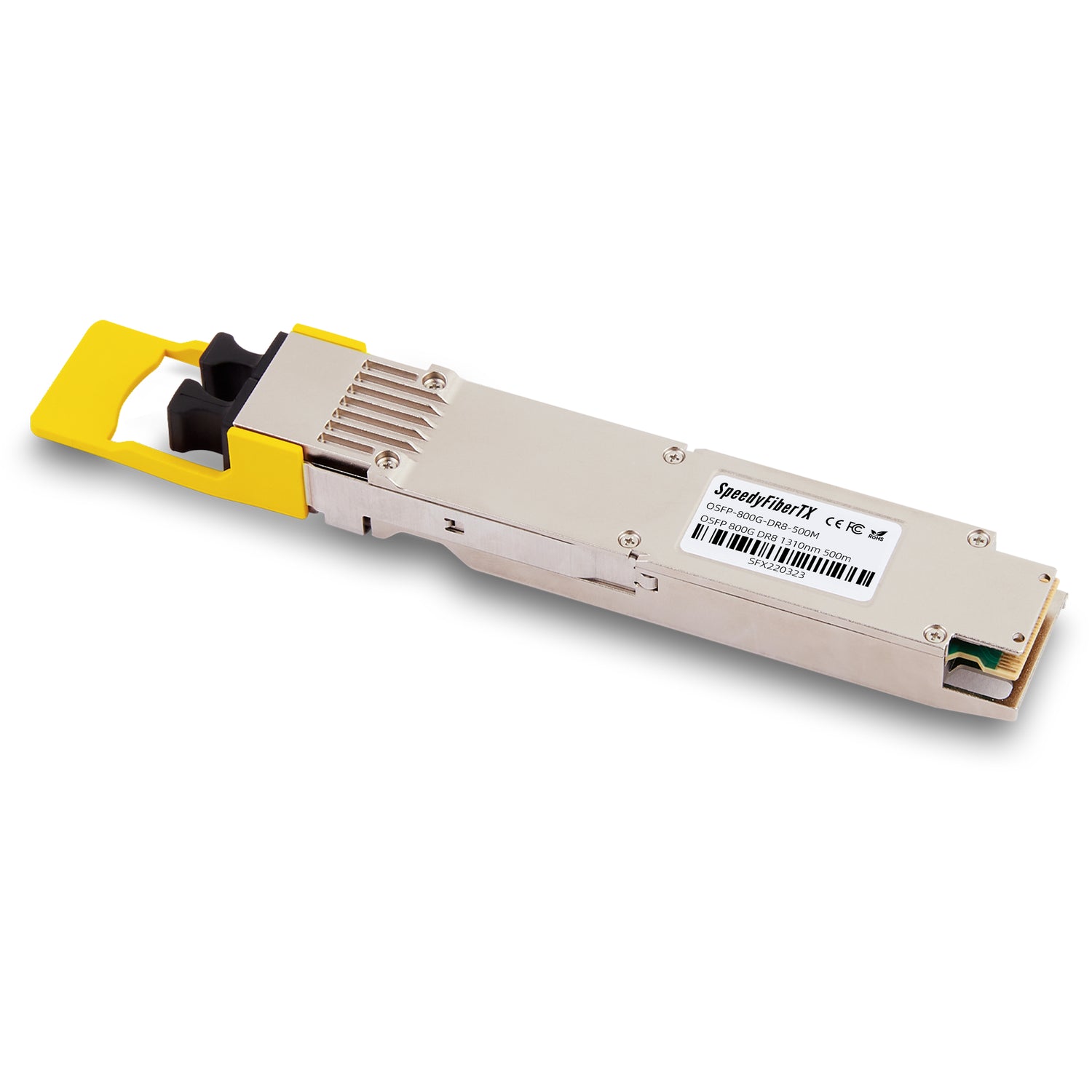

800GBASE-DR8 OSFP PAM4 Optical Transceiver Module (SMF, 1310nm, 500m, Dual MTP/MPO-12 APC, DOM, Finned Top)

The 800GBASE-DR8 OSFP optical transceiver module is designed for 800GBASE Ethernet throughput up to 500m link lengths over OS2 single-mode fiber (SMF) using a wavelength of 1310nm via dual MTP/MPO-12 APC connectors. This transceiver is compliant with IEEE 802.3ck, IEEE 802.3cu and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

The twin-port OSFP finned-top transceiver is used in Ethernet air-cooled switches. Featured with low latency, low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters, and/or to BlueField-3 DPUs in compute servers and storage subsystems. It is the ideal solution for HPC computing, AI, and cloud data centers.
