SpeedyFiberTX  |  SKU: QSFP112-400G-SR4-50M

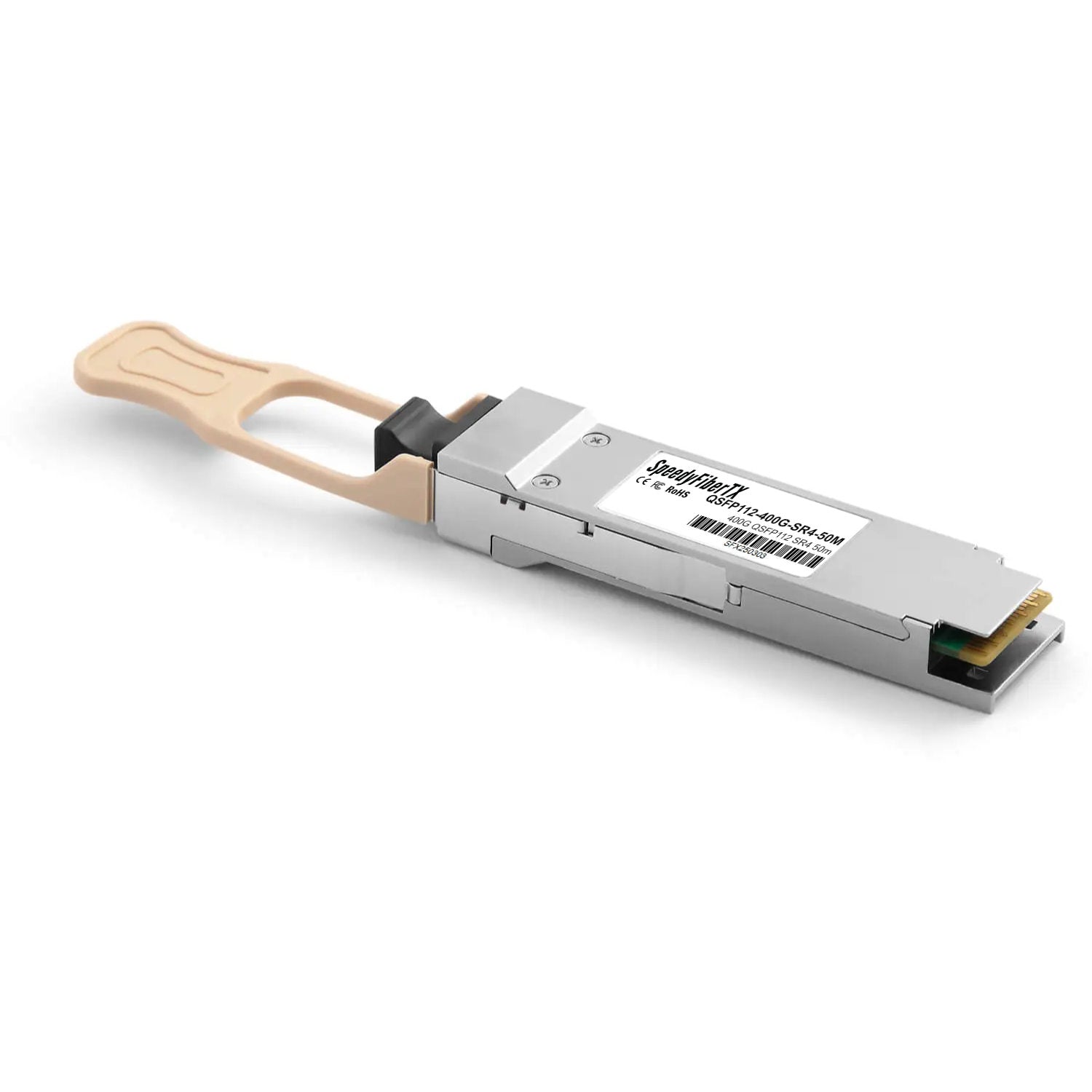

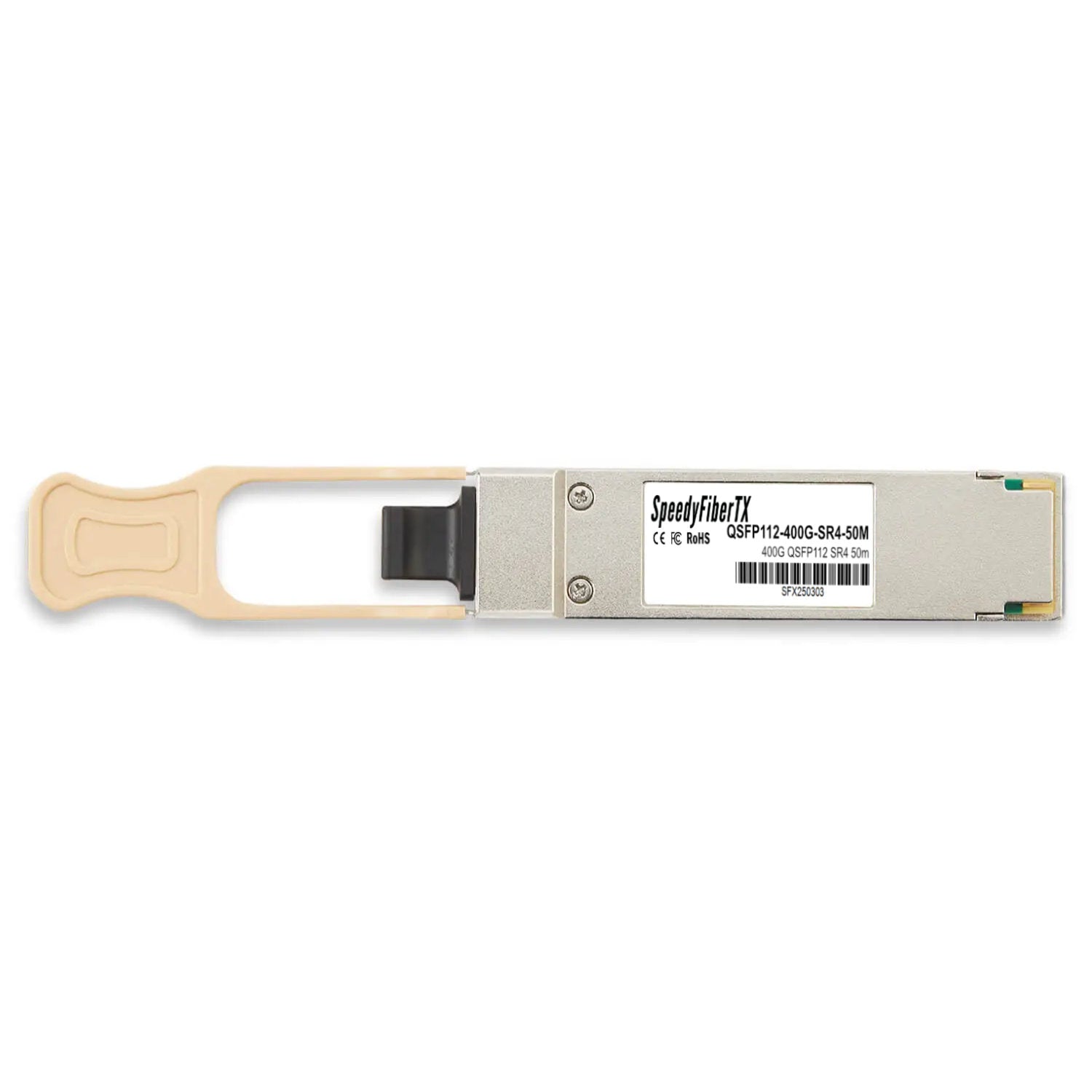

400GBASE-SR4 QSFP112 PAM4 850nm 50m DOM MPO-12/APC MMF Optical Transceiver Module

$25,892.00 TWD
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • 🚚 Typically ships in 7–9 business days
  • ✈️ Free Shipping on Orders Over $499 USD.

📦 For bulk orders, please contact us for a customized quote

Contact us
Highlight

• Hot-pluggable QSFP112 form factor
• 4 × 106.25 Gb/s PAM4 lanes (aggregate 400 Gb/s)
• 4-channel 850nm VCSEL laser array and 4-channel PIN photodiode array
• Supports up to 50m over OM4 multimode fiber (MMF)
• MPO-12 APC optical interface for 400G SR4 and 4 × 100G-DR breakout applications
• Digital diagnostic monitoring (DDM/DOM) via I²C interface
• Single 3.3 V power supply, power consumption < 14W
• Operating case temperature: 0 °C to +70 °C (commercial range)
• Compliant with IEEE 802.3db (400GBASE-SR4), CMIS 4.0
• RoHS compliant

The 400GBASE-SR4 QSFP112 optical transceiver is a 4-channel, hot-pluggable module designed for short-reach 400GbE applications over multimode fiber. Each lane operates at 106.25 Gb/s PAM4, delivering an aggregate data rate of 400Gb/s.
It uses an 850nm VCSEL laser array and PIN photodiode receiver array to support transmission up to 30m over OM3 and 50m over OM4 MMF through an MPO-12 APC connector.
Compliant with IEEE 802.3db and CMIS 4.0 standards, this transceiver supports DOM via the I²C interface and is ideal for high-density data-center interconnects or 4 × 100G breakout applications in next-generation Ethernet networks.
