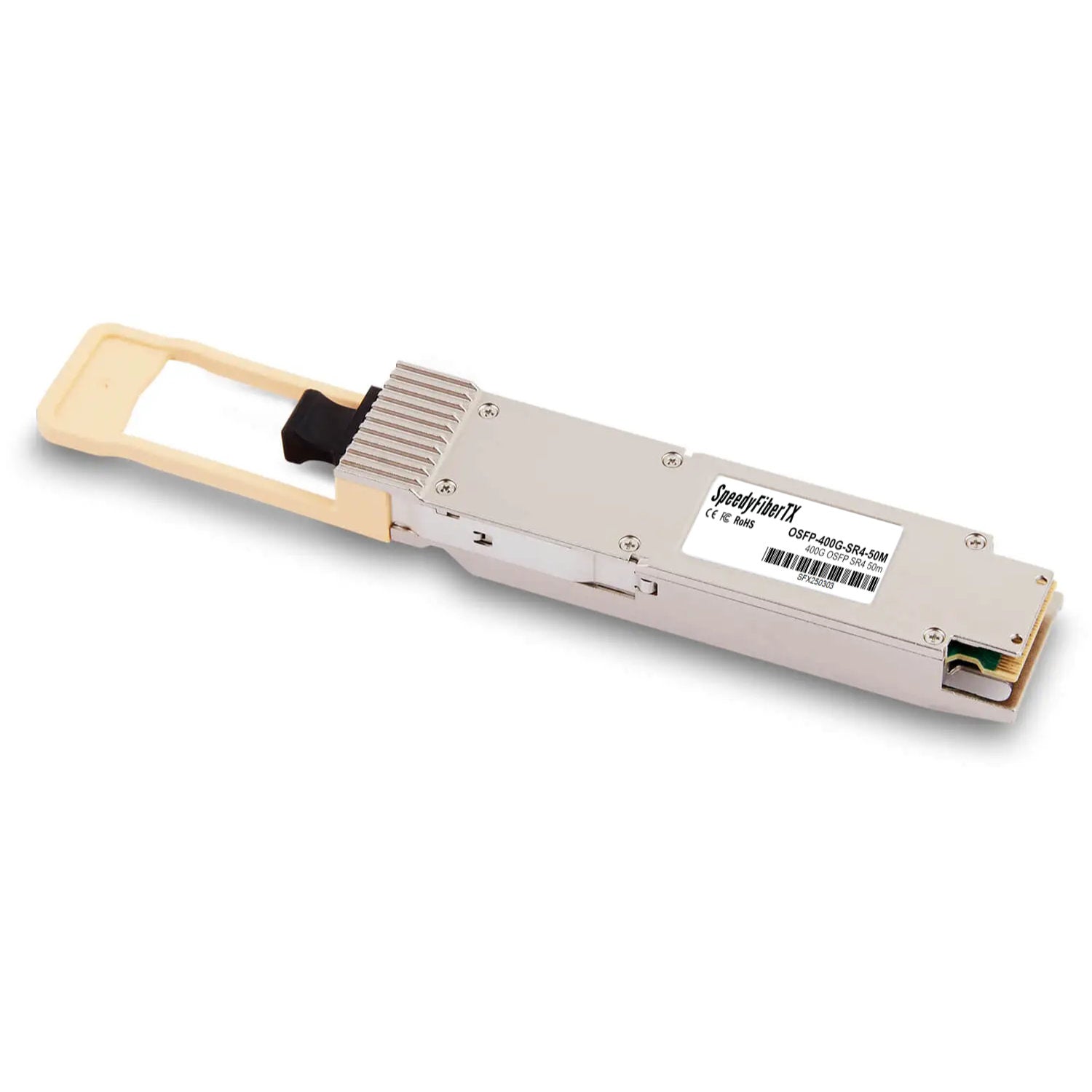

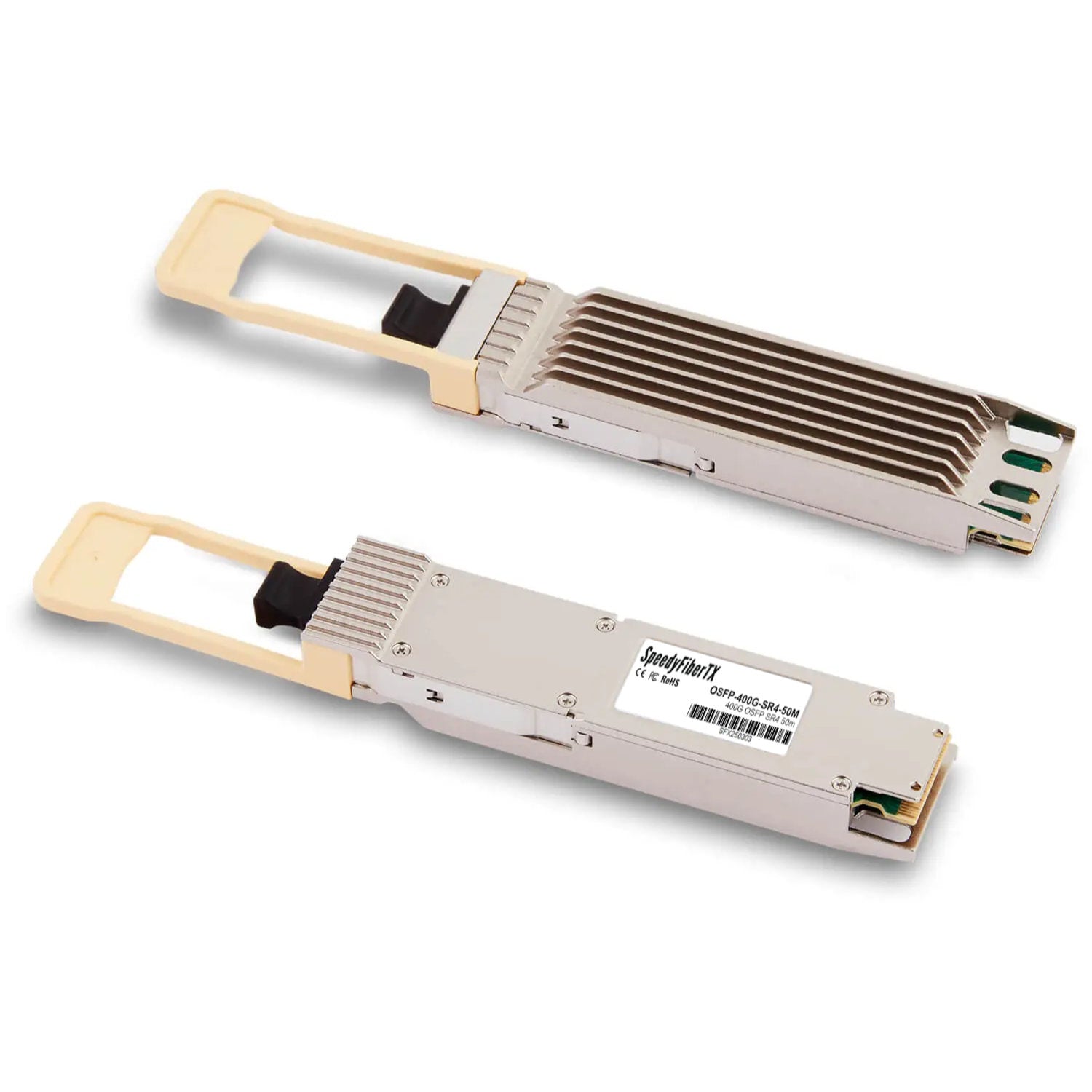

400GBASE-SR4 OSFP Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF Optical Transceiver Module
400GBASE-SR4 OSFP Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF Optical Transceiver Module has a longer lead time. Please feel free to contact us via chat before placing your order.
📦 For bulk orders, please contact us for a customized quote
400GBASE-SR4 OSFP Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF Optica...
Highlight
The 400GBASE-SR4 OSFP Flat Top optical transceiver is a high-performance, hot-pluggable module designed for short-reach 400GbE applications over multimode fiber (MMF).
It supports four parallel channels of 106.25Gb/s PAM4 for an aggregate data rate of 400Gb/s.
Operating at 850nm, it uses a VCSEL laser array and PIN photodiode array, achieving link distances up to 30m over OM3 and 50m over OM4 fiber.
The module adopts an MPO-12/APC connector and complies with IEEE802.3db and OSFP MSA, supporting digital diagnostics via the I²C interface.
It is ideal for high-density 400G Ethernet, AI clusters, and top-of-rack interconnects in data centers.
-
Form Factor
-
Transceiver TypeFiber Optic Tranceiver
-
Fiber TypeMultimode
-
Transmission Distance≤ 100m
-
Data Rate (Gbps)400G OSFP
-
Connector
-
Max. Data Rate
-
Wavelength
-
Max. Cable Distance
-
Media
-
Transmitter Type
-
Receiver Type
-
Extinction Ratio
-
Power Consumption
-
TX Power
-
Power Budget
-
Inbuilt FEC
-
Receiver Overload
-
Minimum Receiver Power
-
Commercial Temperature Range
-
Protocols
-
Application Field
-
Warranty
