SpeedyFiberTX | SKU: LB-SMTPSM24M-AY

24 Fibers MTP® Male Single-mode Fiber Loopback Module

Configuration Option

Product variants

$2,890.00 TWD

Tax included Shipping calculated at checkout.

Highlight

US Conec MTP® Connector
Easy Insertion and Extraction with Push-pull Design
Used in Testing 200G or 400G MPO/MTP® Interface Transceivers
Test the Quality of Each Channel, Self-loop Test of a Single MTP Interface Optical Module with MTP Cable
Used to Test the Transmission Capability and Reception Sensitivity of Optical Network Equipment
Designed for Troubleshooting Network Failure Nodes

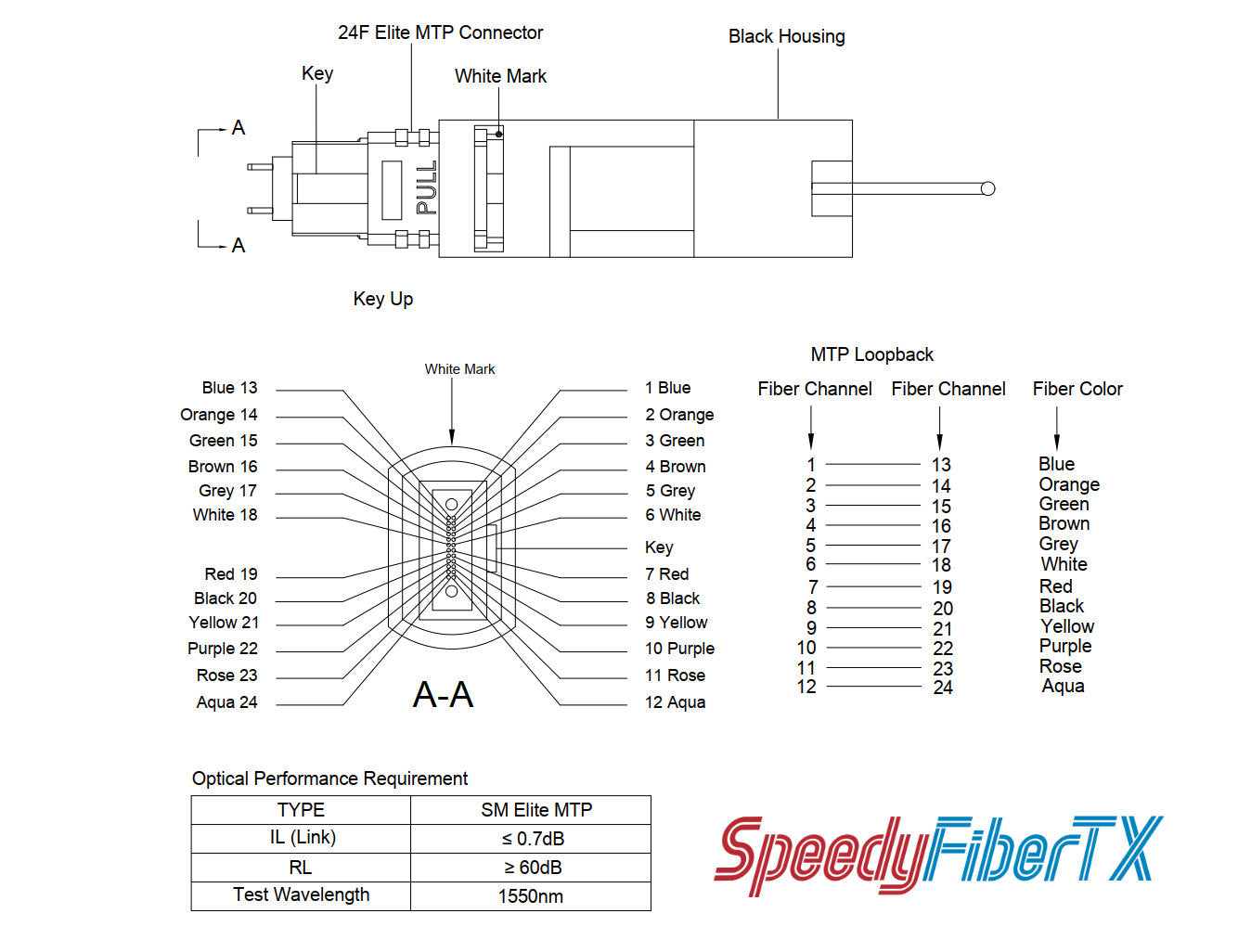

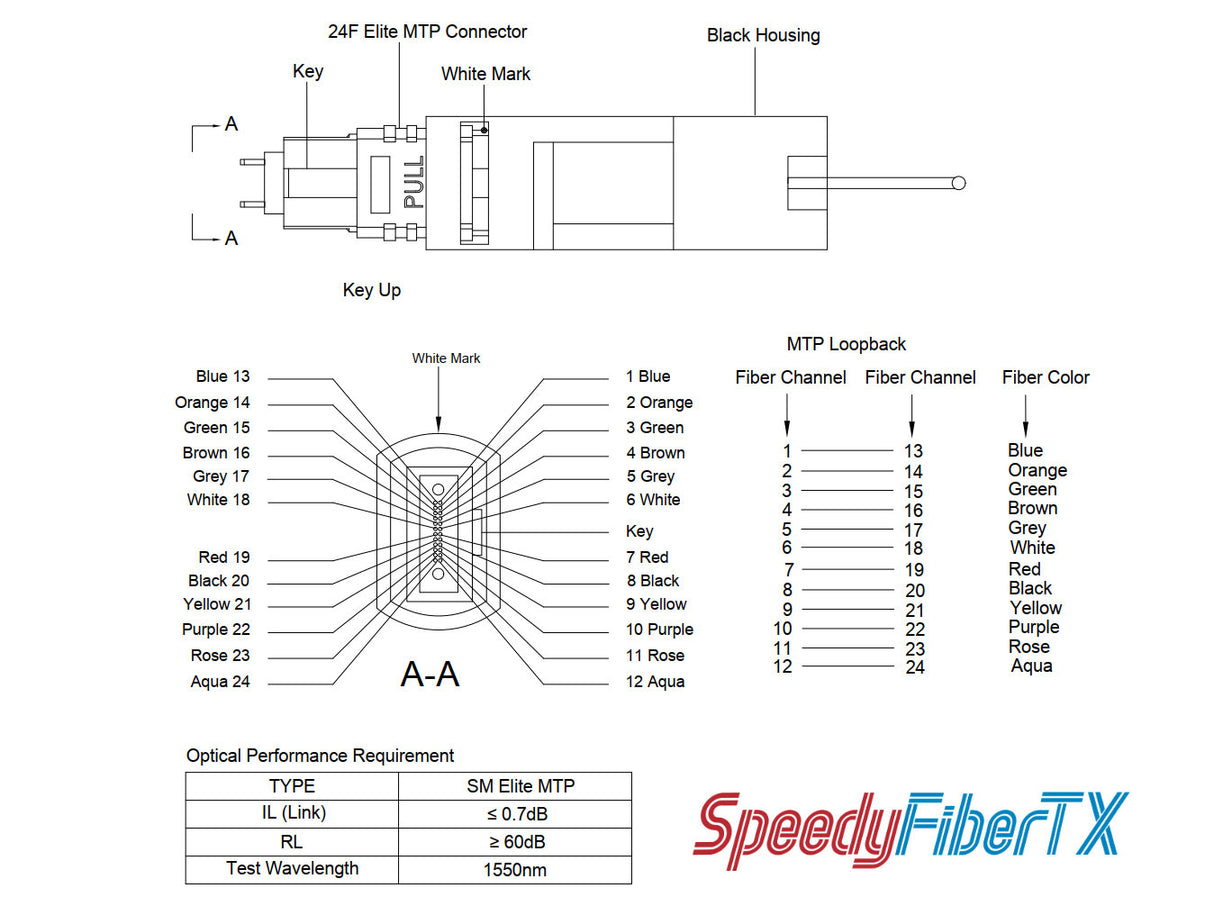

24 Fibers MTP®Male 9/125 Single-mode Fiber Loopback Module

MTP® Loopback modules are used widely within testing environment especially within parallel optics 200/400G networks. It can be used with MTP cables to detect the quality of each channel and self-loop test of a single MTP interface transceiver. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP® transceivers interfaces. MTP® loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP® trunks/patch leads.
