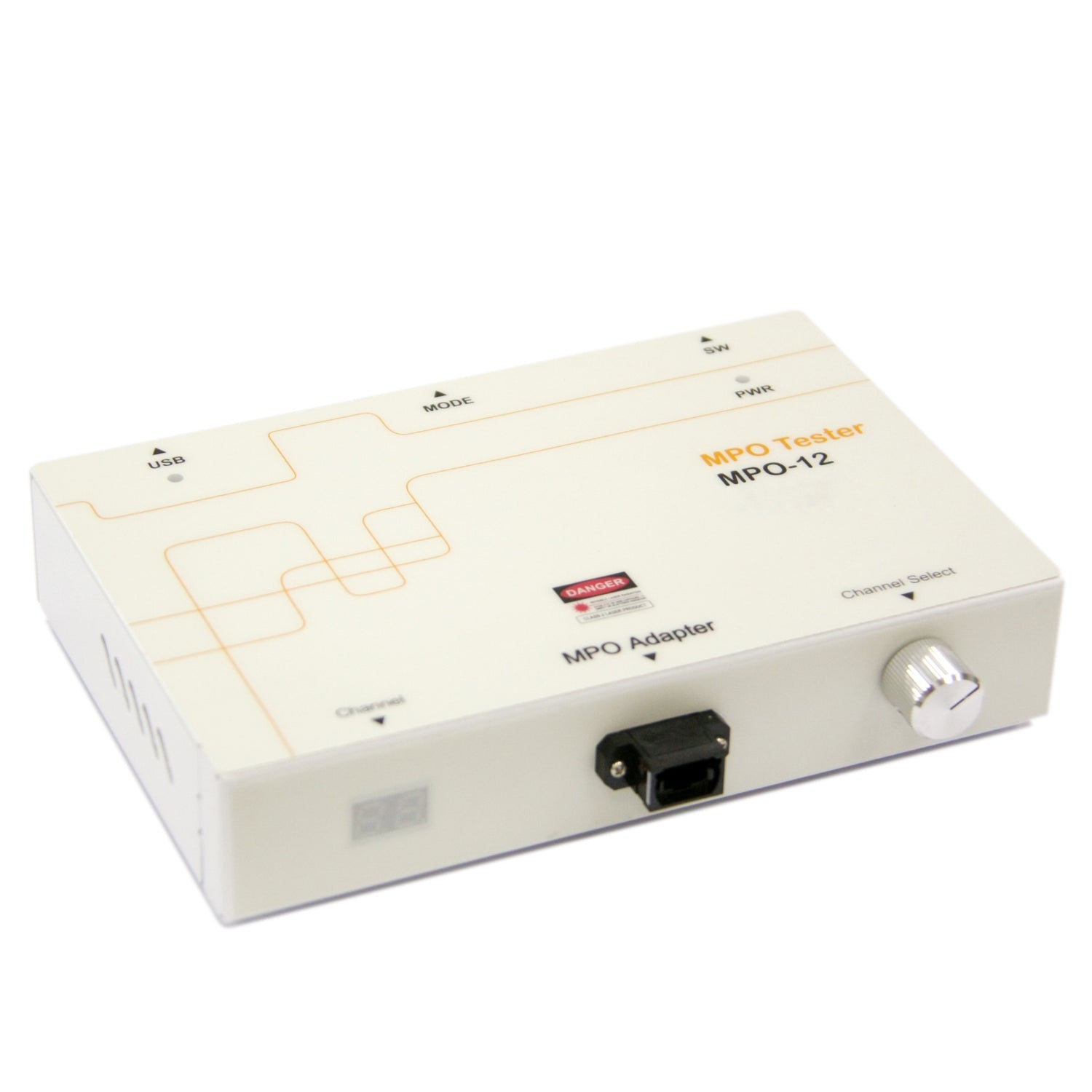

MTP/MPO Tester | 12F/16F/24F Fiber Visual Tester

  • Easy to check fiber faults by using 650 nm visual red laser
  • Range: visibility up to SMF or MMF fiber 1 km
  • 12F, 16F, or 24F MTP/MPO connectors supported for testing
  • Highly effective power circuits designed for stable laser power
  • Operates in Continuous Wave (CW) Mode, Scan Mode, or Manual Mode
  • Powered by external USB or power bank battery
  • Made in Taiwan | TAA Compliant
Tax included Shipping calculated at checkout.
  • 🎉 Buy any 6, Get 5% Off.
  • ✈️ Free Shipping on Orders Over $499 USD $99 USD until Sep 30.
Request a Quote

The MTP/MPO Tester is a very useful tool designed for checking the defects of MTP/MPO arrayed fiber cables or connectors. It emits a visible 650 nm red laser light through fiber optic cables. If there are breaks or defects in the fiber, the light will refract and create a bright glow around the faulty area.

The LD output signal can be switched for all 12, 16, or 24 fibers in CW Mode to obtain different visual effects.
