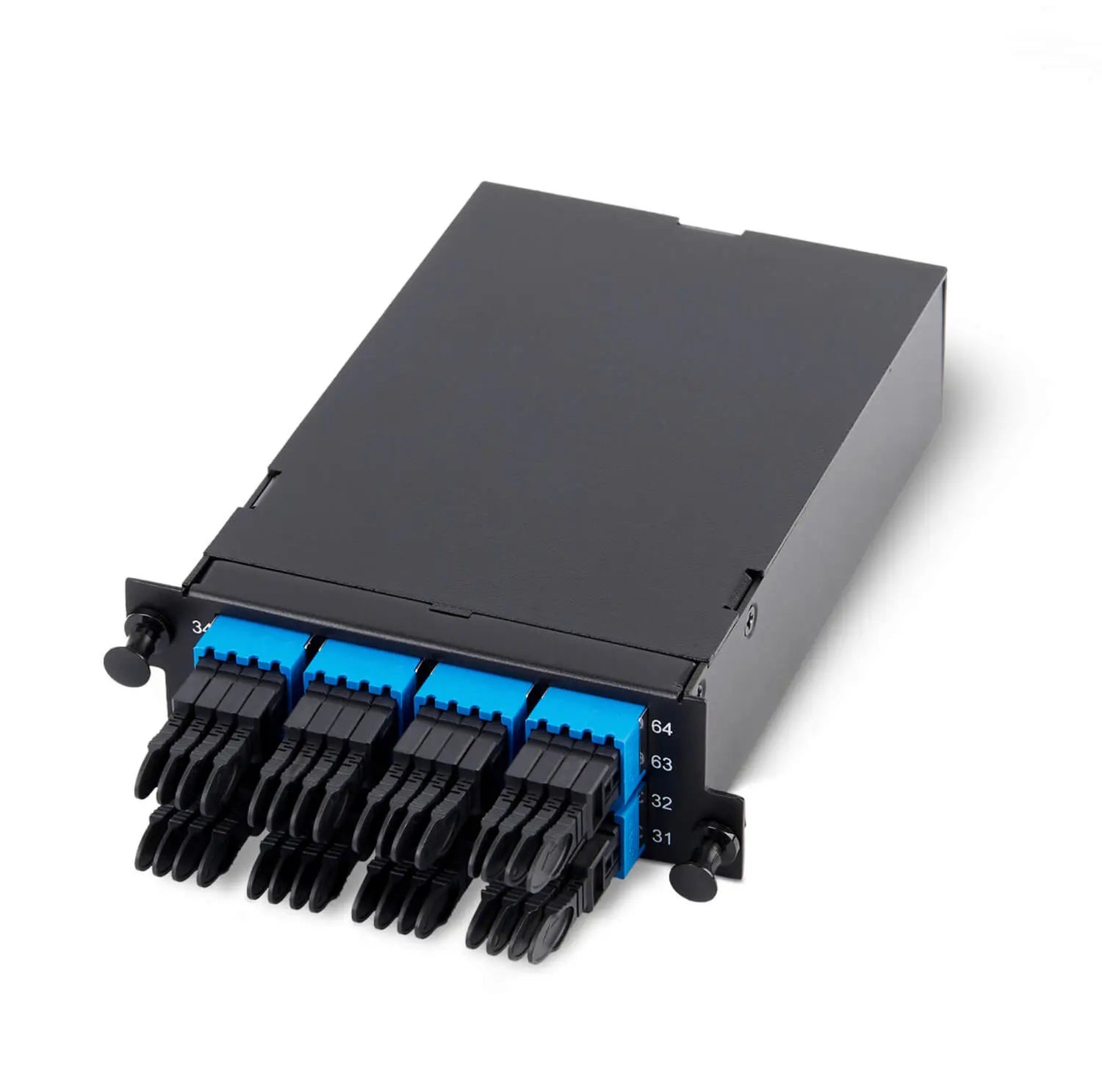

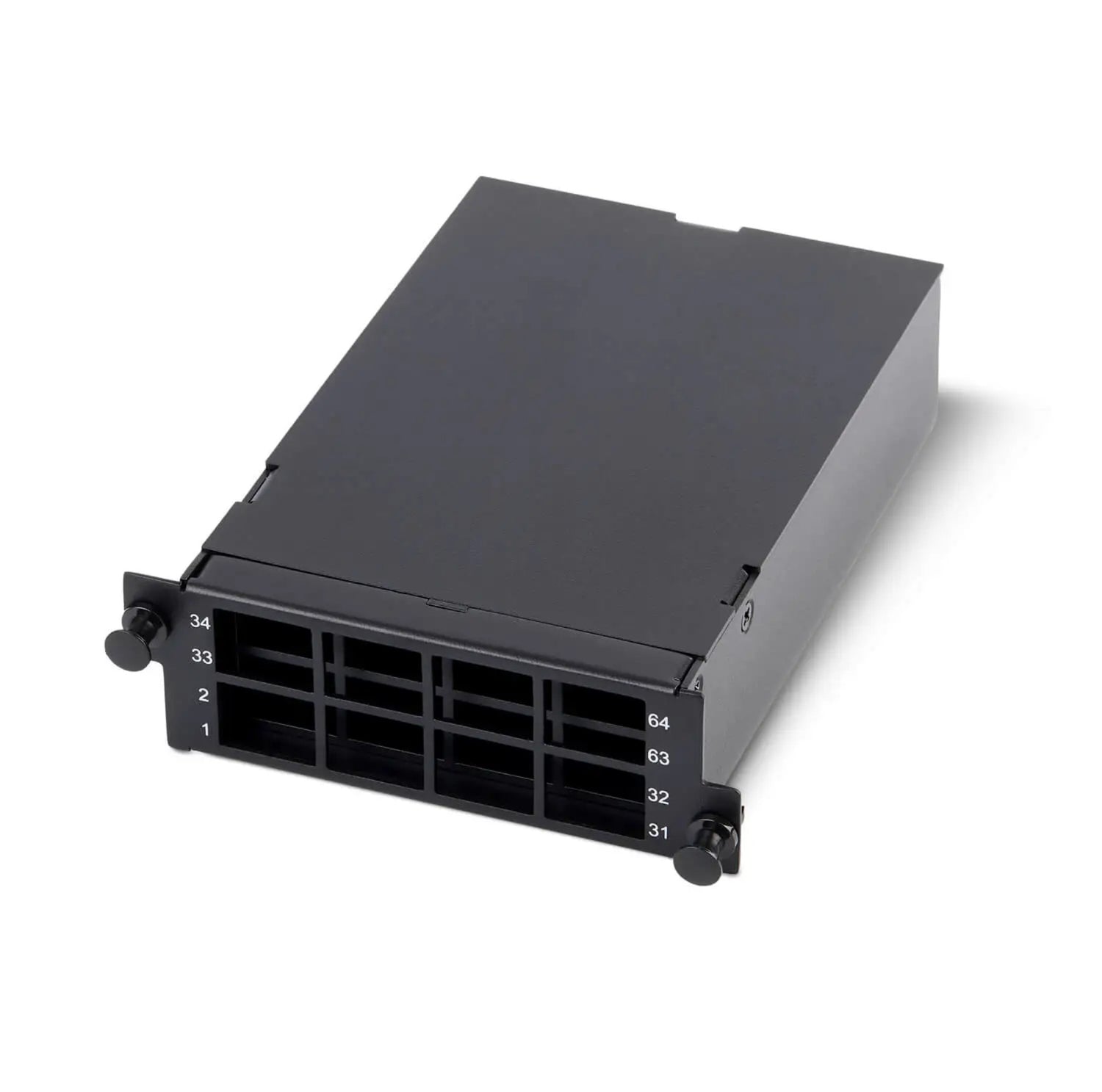

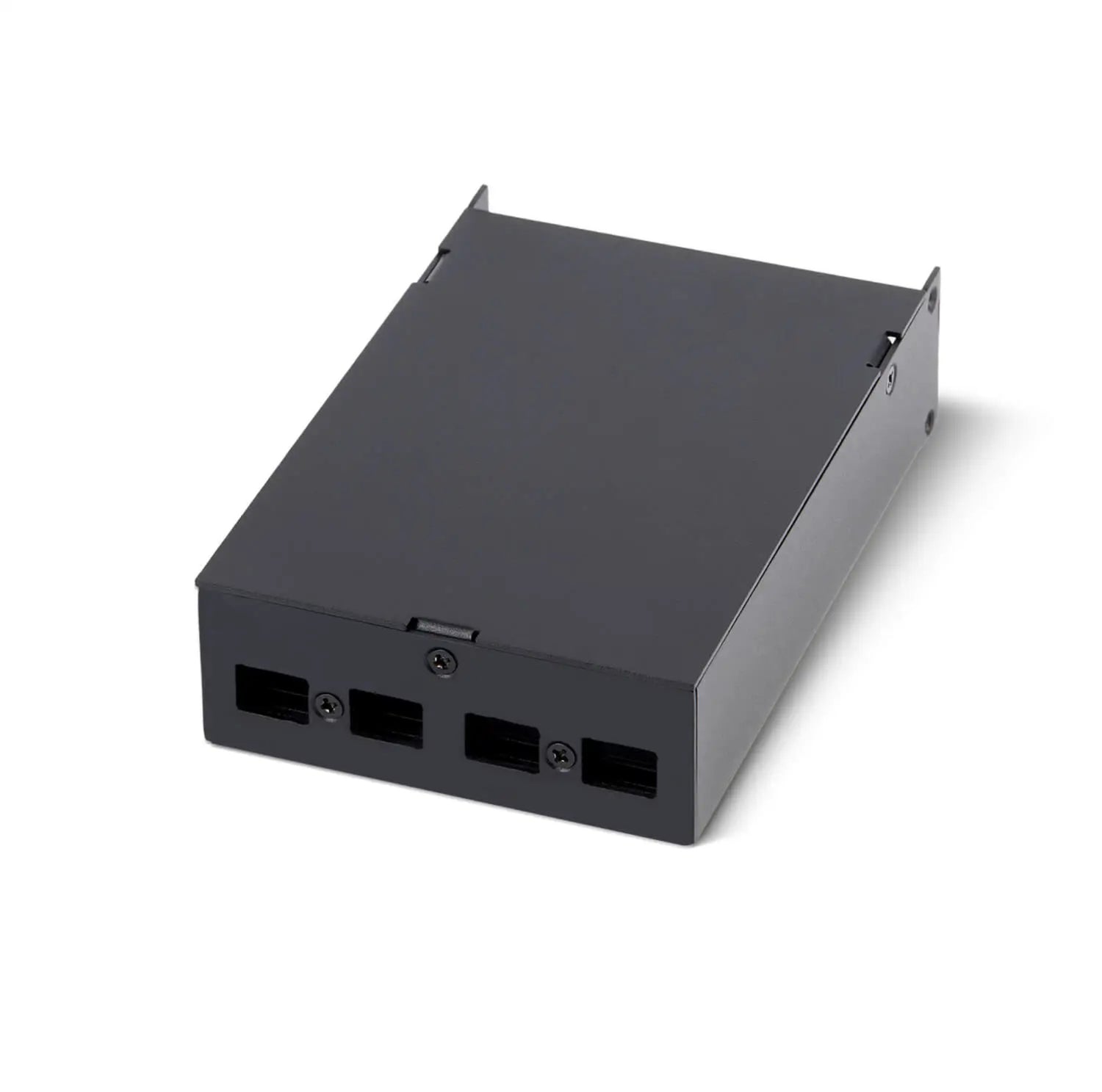

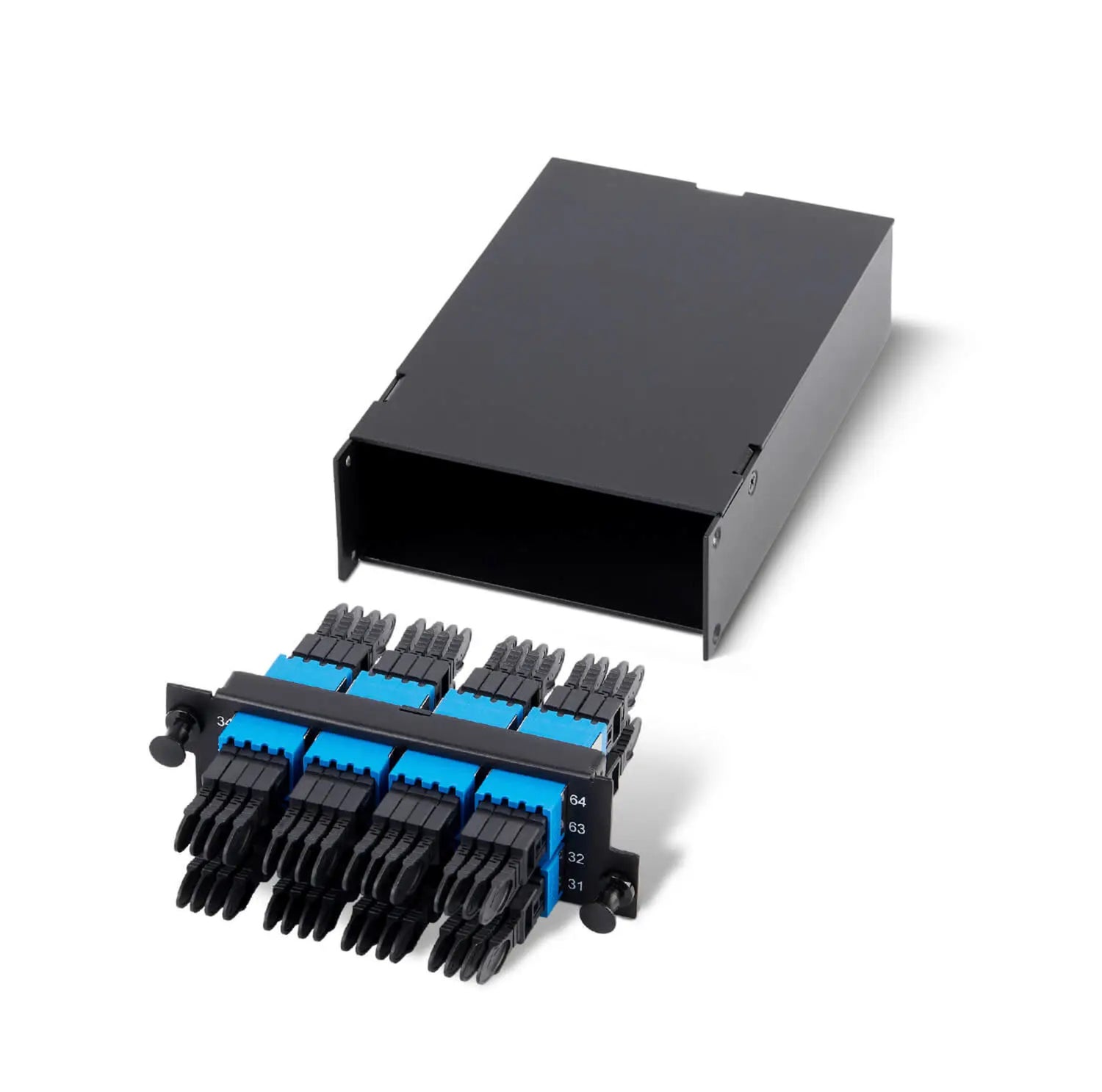

4MPO/MTP®-SN(64 芯)金屬模組卡匣,適用 UltraX/Y/N/S 系列機箱
4MPO/MTP®-SN(64 芯)金屬模組卡匣,適用 UltraX/Y/N/S 系列機箱 此商品備貨時間較長,建議下單前透過右下角聊天功能與我們聯繫確認。
📦 若需大量採購,歡迎聯絡我們查詢專屬報價
SpeedyFiberTX optical module cassettes from the Ultra family are designed to efficiently break out MPO/MTP® connectors into SN connectors. Each metal cassette accommodates up to 256 channels within a 1U space, streamlining the deployment of optical networks in a modular fashion. This makes it an ideal solution for projects requiring compact, fast cabling and provides an easy upgrade path for existing installations.
光學性能
參數 | 單模 (SN/UPC-MPO/MTP®) | 單模 (SN/APC-MPO/MTP®) | 多模 (OM3) (SN/PC-MPO/MTP®) | 多模 (OM4) (SN/PC-MPO/MTP®) |
最大插入損耗 (dB) | 0.6 | 0.6 | 0.6 | 0.6 |
典型插入損耗 (dB) | 0.35 | 0.35 | 0.3 | 0.3 |
最小回波損耗 (dB) | 55 | 60 | 20 | 20 |
一般規格
卡匣材質 | 鋁 |
前端轉接頭 | SN(四聯) |
後端轉接頭 | MPO/MTP® |
前端轉接頭顏色 | 藍 / 綠 / 水藍 / 紫羅蘭 |
後端轉接頭顏色 | 黑 / 灰 / 黃① |
容量 | 64 芯 |
標準 | RoHS/REACH |
尺寸 (mm) | 109.5 × 35 × 140 |
重量 (g) | 280② |
適用範圍 | UltraX / Y / N / S 系列機箱 |
② 重量包含前後轉接頭,但不含光纖纜線。
