200GBASE-SR4 QSFP56多模光模組 850nm 100m DOM MTP/MPO-12

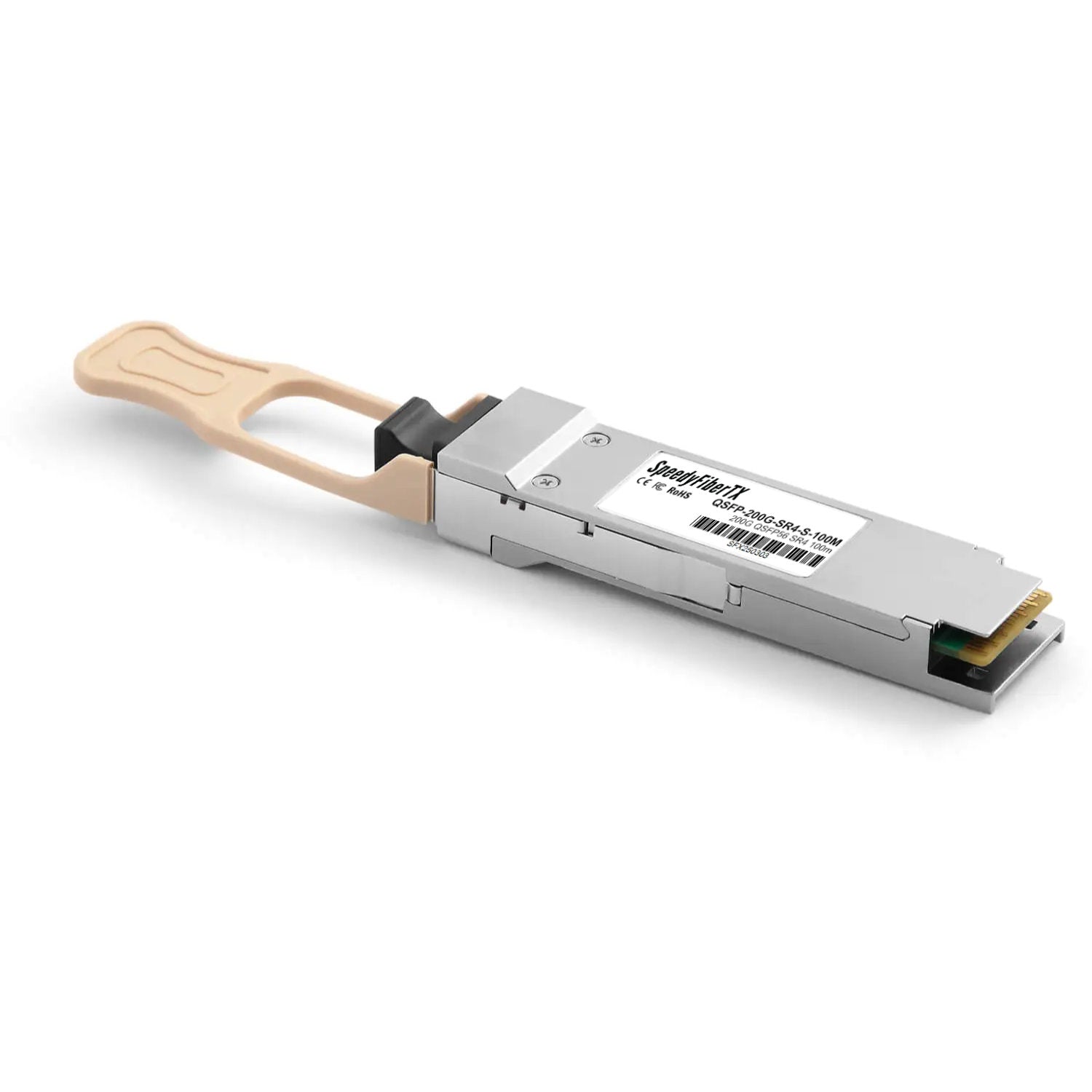

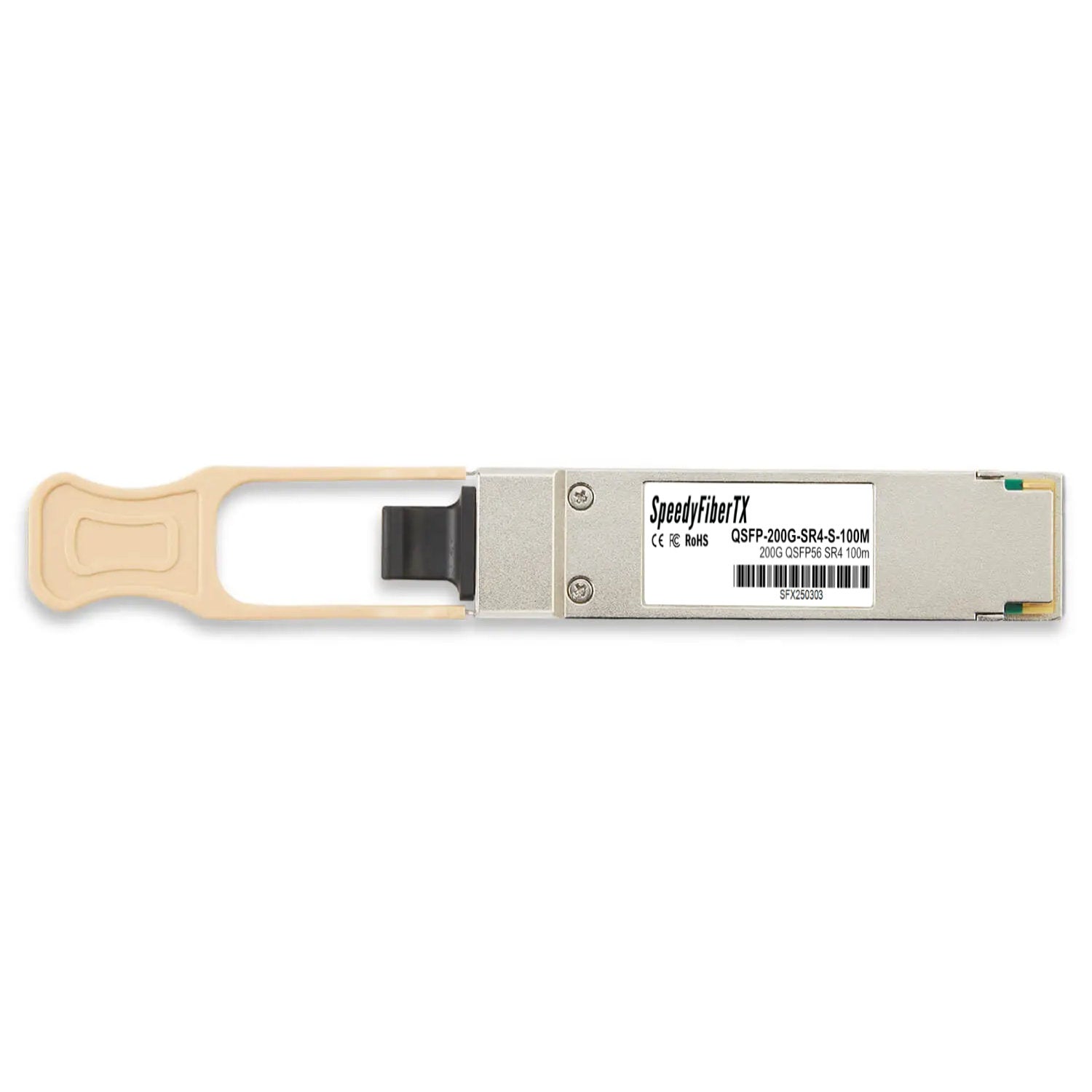

The 200GBASE-SR4 QSFP56 optical transceiver is a 4-channel, hot-pluggable module designed for short-reach 200 GbE applications over multimode fiber.
Each lane operates at 53.125 Gb/s PAM4, providing an aggregate data rate of 200 Gb/s.

This module uses an 850 nm VCSEL laser array and PIN photodiode receiver array to ensure stable optical performance and low bit-error rate (BER). It supports transmission distances of up to 70 m on OM3 and 100 m on OM4 multimode fiber through an MPO-12 UPC connector.

Compliant with IEEE 802.3bs 200GBASE-SR4 and CMIS 4.0, the transceiver features digital diagnostic monitoring (DDM/DOM) via the I²C interface for real-time performance tracking and interoperability with major switch platforms. It is an ideal solution for high-density data center interconnects, switch-to-server links, and high-performance computing (HPC) networks.
